NDN application for sending out Interest packets. More...

#include <ndn-consumer.hpp>

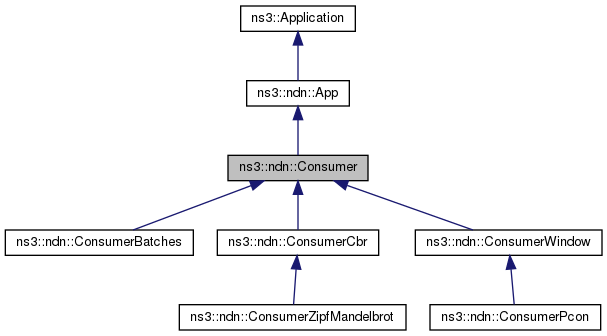

Inheritance diagram for ns3::ndn::Consumer:

[legend]

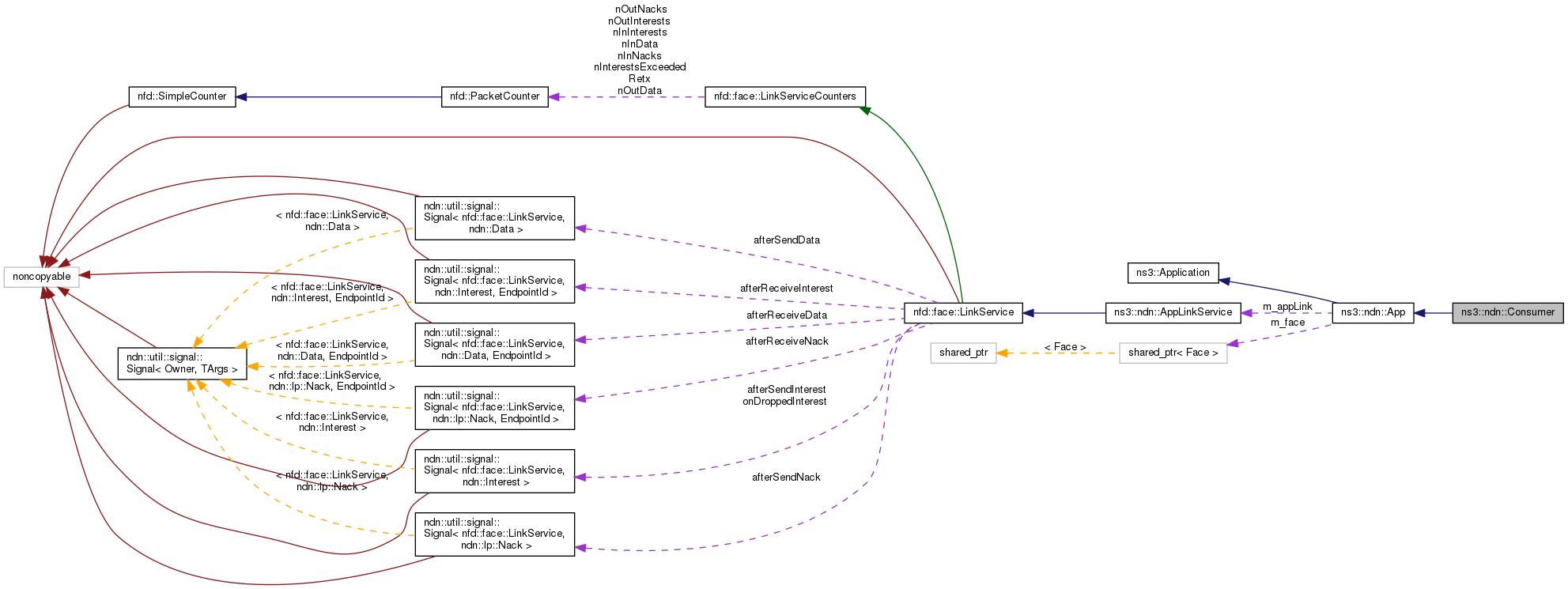

Collaboration diagram for ns3::ndn::Consumer:

[legend]

Public Types
typedef void(*	LastRetransmittedInterestDataDelayCallback) (Ptr< App > app, uint32_t seqno, Time delay, int32_t hopCount)

typedef void(*	FirstInterestDataDelayCallback) (Ptr< App > app, uint32_t seqno, Time delay, uint32_t retxCount, int32_t hopCount)

Public Types inherited from ns3::ndn::App
typedef void(*	InterestTraceCallback) (shared_ptr< const Interest >, Ptr< App >, shared_ptr< Face >)

typedef void(*	DataTraceCallback) (shared_ptr< const Data >, Ptr< App >, shared_ptr< Face >)

typedef void(*	NackTraceCallback) (shared_ptr< const lp::Nack >, Ptr< App >, shared_ptr< Face >)

Public Member Functions
	Consumer ()
	Default constructor Sets up randomizer function and packet sequence number. More...

virtual	~Consumer ()

virtual void	OnData (shared_ptr< const Data > contentObject)
	Method that will be called every time new Data arrives. More...

virtual void	OnNack (shared_ptr< const lp::Nack > nack)
	Method that will be called every time new Nack arrives. More...

virtual void	OnTimeout (uint32_t sequenceNumber)
	Timeout event. More...

void	SendPacket ()
	Actually send packet. More...

virtual void	WillSendOutInterest (uint32_t sequenceNumber)
	An event that is fired just before an Interest packet is actually send out (send is inevitable) More...

Public Member Functions inherited from ns3::ndn::App
	App ()
	Default constructor. More...

virtual	~App ()

uint32_t	GetId () const
	Get application ID (ID of applications face) More...

virtual void	OnInterest (shared_ptr< const Interest > interest)
	Method that will be called every time new Interest arrives. More...

Static Public Member Functions
static TypeId	GetTypeId ()

Static Public Member Functions inherited from ns3::ndn::App
static TypeId	GetTypeId ()

Protected Member Functions
virtual void	StartApplication ()
	Called at time specified by Start. More...

virtual void	StopApplication ()
	Called at time specified by Stop. More...

virtual void	ScheduleNextPacket ()=0
	Constructs the Interest packet and sends it using a callback to the underlying NDN protocol. More...

void	CheckRetxTimeout ()
	Checks if the packet need to be retransmitted becuase of retransmission timer expiration. More...

void	SetRetxTimer (Time retxTimer)
	Modifies the frequency of checking the retransmission timeouts. More...

Time	GetRetxTimer () const
	Returns the frequency of checking the retransmission timeouts. More...

Protected Member Functions inherited from ns3::ndn::App
virtual void	DoInitialize ()

virtual void	DoDispose ()

Protected Attributes
Ptr< UniformRandomVariable >	m_rand
	nonce generator More...

uint32_t	m_seq
	currently requested sequence number More...

uint32_t	m_seqMax
	maximum number of sequence number More...

EventId	m_sendEvent
	EventId of pending "send packet" event. More...

Time	m_retxTimer
	Currently estimated retransmission timer. More...

EventId	m_retxEvent
	Event to check whether or not retransmission should be performed. More...

Ptr< RttEstimator >	m_rtt
	RTT estimator. More...

Time	m_offTime
	Time interval between packets. More...

Name	m_interestName
	NDN Name of the Interest (use Name) More...

Time	m_interestLifeTime
	LifeTime for interest packet. More...

Protected Attributes inherited from ns3::ndn::App
bool	m_active
	Flag to indicate that application is active (set by StartApplication and StopApplication) More...

shared_ptr< Face >	m_face

AppLinkService *	m_appLink

uint32_t	m_appId

TracedCallback< shared_ptr< const Interest >, Ptr< App >, shared_ptr< Face > >	m_receivedInterests
	App-level trace of received Interests. More...

TracedCallback< shared_ptr< const Data >, Ptr< App >, shared_ptr< Face > >	m_receivedDatas
	App-level trace of received Data. More...

TracedCallback< shared_ptr< const lp::Nack >, Ptr< App >, shared_ptr< Face > >	m_receivedNacks
	App-level trace of received Nacks. More...

TracedCallback< shared_ptr< const Interest >, Ptr< App >, shared_ptr< Face > >	m_transmittedInterests
	App-level trace of transmitted Interests. More...

TracedCallback< shared_ptr< const Data >, Ptr< App >, shared_ptr< Face > >	m_transmittedDatas
	App-level trace of transmitted Data. More...

TracedCallback< shared_ptr< const lp::Nack >, Ptr< App >, shared_ptr< Face > >	m_transmittedNacks
	App-level trace of transmitted Nacks. More...

Detailed Description

NDN application for sending out Interest packets.

Config Paths

ns3::ndn::Consumer is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/ApplicationList/[i]/$ns3::ndn::App/$ns3::ndn::Consumer"
"/NodeList/[i]/ApplicationList/[i]/$ns3::ndn::Consumer"

Attributes

StartSeq: Initial sequence number
- Set with class: ns3::IntegerValue
- Underlying type: int32_t -2147483648:2147483647
- Initial value: 0
- Flags: construct write read
Prefix: Name of the Interest
- Set with class: NameValue
- Underlying type: Name
- Initial value: /
- Flags: construct write read
LifeTime: LifeTime for interest packet
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: 2s
- Flags: construct write read
RetxTimer: Timeout defining how frequent retransmission timeouts should be checked
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: 50ms
- Flags: construct write read

Attributes defined in parent class ns3::Application

StartTime: Time at which the application will start
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: construct write read
StopTime: Time at which the application will stop
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: construct write read

TraceSources

LastRetransmittedInterestDataDelay: Delay between last retransmitted Interest and received Data
Callback signature: ns3::ndn::Consumer::LastRetransmittedInterestDataDelayCallback
FirstInterestDataDelay: Delay between first transmitted Interest and received Data
Callback signature: ns3::ndn::Consumer::FirstInterestDataDelayCallback

TraceSources defined in parent class ns3::ndn::App

ReceivedInterests: ReceivedInterests
Callback signature: ns3::ndn::App::InterestTraceCallback
ReceivedDatas: ReceivedDatas
Callback signature: ns3::ndn::App::DataTraceCallback
ReceivedNacks: ReceivedNacks
Callback signature: ns3::ndn::App::NackTraceCallback
TransmittedInterests: TransmittedInterests
Callback signature: ns3::ndn::App::InterestTraceCallback
TransmittedDatas: TransmittedDatas
Callback signature: ns3::ndn::App::DataTraceCallback
TransmittedNacks: TransmittedNacks
Callback signature: ns3::ndn::App::NackTraceCallback

Size of this type is 712 bytes (on a 64-bit architecture).

Definition at line 49 of file ndn-consumer.hpp.

Member Typedef Documentation

◆ LastRetransmittedInterestDataDelayCallback

typedef void(* ns3::ndn::Consumer::LastRetransmittedInterestDataDelayCallback) (Ptr< App > app, uint32_t seqno, Time delay, int32_t hopCount)

Definition at line 96 of file ndn-consumer.hpp.

◆ FirstInterestDataDelayCallback

typedef void(* ns3::ndn::Consumer::FirstInterestDataDelayCallback) (Ptr< App > app, uint32_t seqno, Time delay, uint32_t retxCount, int32_t hopCount)

Definition at line 97 of file ndn-consumer.hpp.

Constructor & Destructor Documentation

◆ Consumer()

ns3::ndn::Consumer::Consumer ( )

Default constructor Sets up randomizer function and packet sequence number.

Definition at line 81 of file ndn-consumer.cpp.

References m_rtt.

◆ ~Consumer()

virtual ns3::ndn::Consumer::~Consumer ( )

inlinevirtual

Definition at line 59 of file ndn-consumer.hpp.

References OnData(), OnNack(), OnTimeout(), SendPacket(), and WillSendOutInterest().

Member Function Documentation

◆ GetTypeId()

TypeId ns3::ndn::Consumer::GetTypeId ( void )

static

Definition at line 48 of file ndn-consumer.cpp.

References GetRetxTimer(), m_interestLifeTime, m_interestName, m_seq, ns3::ndn::MakeNameAccessor(), ns3::ndn::MakeNameChecker(), and SetRetxTimer().

◆ OnData()

void ns3::ndn::Consumer::OnData ( shared_ptr< const Data > data )

virtual

Method that will be called every time new Data arrives.

Reimplemented from ns3::ndn::App.

Reimplemented in ns3::ndn::ConsumerPcon, and ns3::ndn::ConsumerWindow.

Definition at line 213 of file ndn-consumer.cpp.

References ns3::ndn::App::m_active, m_rtt, and ns3::ndn::App::OnData().

Referenced by ns3::ndn::ConsumerWindow::OnData(), ns3::ndn::ConsumerPcon::OnData(), and ~Consumer().

◆ OnNack()

void ns3::ndn::Consumer::OnNack ( shared_ptr< const lp::Nack > nack )

virtual

Method that will be called every time new Nack arrives.

Reimplemented from ns3::ndn::App.

Definition at line 256 of file ndn-consumer.cpp.

References ns3::ndn::App::OnNack().

Referenced by ~Consumer().

◆ OnTimeout()

void ns3::ndn::Consumer::OnTimeout ( uint32_t sequenceNumber )

virtual

Timeout event.

Parameters

sequenceNumber time outed sequence number

Reimplemented in ns3::ndn::ConsumerPcon, and ns3::ndn::ConsumerWindow.

Definition at line 266 of file ndn-consumer.cpp.

References m_rtt, and ScheduleNextPacket().

Referenced by CheckRetxTimeout(), ns3::ndn::ConsumerWindow::OnTimeout(), ns3::ndn::ConsumerPcon::OnTimeout(), and ~Consumer().

◆ SendPacket()

void ns3::ndn::Consumer::SendPacket ( )

Actually send packet.

Definition at line 159 of file ndn-consumer.cpp.

References ns3::ndn::App::m_active, ns3::ndn::App::m_appLink, ns3::ndn::App::m_face, m_interestLifeTime, m_interestName, m_rand, m_seq, m_seqMax, ns3::ndn::App::m_transmittedInterests, ns3::ndn::AppLinkService::onReceiveInterest(), ScheduleNextPacket(), and WillSendOutInterest().

Referenced by ns3::ndn::ConsumerCbr::ScheduleNextPacket(), ns3::ndn::ConsumerBatches::ScheduleNextPacket(), ns3::ndn::ConsumerWindow::ScheduleNextPacket(), and ~Consumer().

◆ WillSendOutInterest()

void ns3::ndn::Consumer::WillSendOutInterest ( uint32_t sequenceNumber )

virtual

An event that is fired just before an Interest packet is actually send out (send is inevitable)

The reason for "before" even is that in certain cases (when it is possible to satisfy from the local cache), the send call will immediately return data, and if "after" even was used, this after would be called after all processing of incoming data, potentially producing unexpected results.

Reimplemented in ns3::ndn::ConsumerWindow.

Definition at line 280 of file ndn-consumer.cpp.

References m_rtt.

Referenced by SendPacket(), ns3::ndn::ConsumerWindow::WillSendOutInterest(), and ~Consumer().

◆ StartApplication()

void ns3::ndn::Consumer::StartApplication ( )

protectedvirtual

Called at time specified by Start.

Reimplemented from ns3::ndn::App.

Definition at line 136 of file ndn-consumer.cpp.

References ScheduleNextPacket(), and ns3::ndn::App::StartApplication().

Referenced by ns3::ndn::ConsumerBatches::ConsumerBatches().

◆ StopApplication()

void ns3::ndn::Consumer::StopApplication ( )

protectedvirtual

Called at time specified by Stop.

Reimplemented from ns3::ndn::App.

Definition at line 147 of file ndn-consumer.cpp.

References m_sendEvent, and ns3::ndn::App::StopApplication().

◆ ScheduleNextPacket()

virtual void ns3::ndn::Consumer::ScheduleNextPacket ( )

protectedpure virtual

Constructs the Interest packet and sends it using a callback to the underlying NDN protocol.

Implemented in ns3::ndn::ConsumerZipfMandelbrot, ns3::ndn::ConsumerWindow, ns3::ndn::ConsumerBatches, and ns3::ndn::ConsumerCbr.

Referenced by OnTimeout(), SendPacket(), and StartApplication().

◆ CheckRetxTimeout()

void ns3::ndn::Consumer::CheckRetxTimeout ( )

protected

Checks if the packet need to be retransmitted becuase of retransmission timer expiration.

Definition at line 111 of file ndn-consumer.cpp.

References m_retxEvent, m_retxTimer, m_rtt, and OnTimeout().

Referenced by SetRetxTimer().

◆ SetRetxTimer()

void ns3::ndn::Consumer::SetRetxTimer ( Time retxTimer )

protected

Modifies the frequency of checking the retransmission timeouts.

Parameters

retxTimer Timeout defining how frequent retransmission timeouts should be checked

Definition at line 92 of file ndn-consumer.cpp.

References CheckRetxTimeout(), m_retxEvent, and m_retxTimer.

Referenced by GetTypeId().

◆ GetRetxTimer()

Time ns3::ndn::Consumer::GetRetxTimer ( ) const

protected

Returns the frequency of checking the retransmission timeouts.

Returns: Timeout defining how frequent retransmission timeouts should be checked

Definition at line 105 of file ndn-consumer.cpp.

References m_retxTimer.

Referenced by GetTypeId().

Member Data Documentation

◆ m_rand

Ptr<UniformRandomVariable> ns3::ndn::Consumer::m_rand

protected

nonce generator

Definition at line 135 of file ndn-consumer.hpp.

Referenced by ns3::ndn::ConsumerZipfMandelbrot::SendPacket(), and SendPacket().

◆ m_seq

uint32_t ns3::ndn::Consumer::m_seq

protected

currently requested sequence number

Definition at line 137 of file ndn-consumer.hpp.

Referenced by GetTypeId(), ns3::ndn::ConsumerPcon::OnTimeout(), ns3::ndn::ConsumerZipfMandelbrot::SendPacket(), and SendPacket().

◆ m_seqMax

uint32_t ns3::ndn::Consumer::m_seqMax

protected

maximum number of sequence number

Definition at line 138 of file ndn-consumer.hpp.

Referenced by ns3::ndn::ConsumerBatches::ConsumerBatches(), ns3::ndn::ConsumerCbr::ConsumerCbr(), ns3::ndn::ConsumerWindow::ConsumerWindow(), ns3::ndn::ConsumerCbr::GetTypeId(), ns3::ndn::ConsumerZipfMandelbrot::SendPacket(), and SendPacket().

◆ m_sendEvent

EventId ns3::ndn::Consumer::m_sendEvent

protected

EventId of pending "send packet" event.

Definition at line 139 of file ndn-consumer.hpp.

Referenced by ns3::ndn::ConsumerCbr::ScheduleNextPacket(), ns3::ndn::ConsumerBatches::ScheduleNextPacket(), ns3::ndn::ConsumerWindow::ScheduleNextPacket(), ns3::ndn::ConsumerZipfMandelbrot::ScheduleNextPacket(), and StopApplication().

◆ m_retxTimer

Time ns3::ndn::Consumer::m_retxTimer

protected

Currently estimated retransmission timer.

Definition at line 140 of file ndn-consumer.hpp.

Referenced by CheckRetxTimeout(), GetRetxTimer(), and SetRetxTimer().

◆ m_retxEvent

EventId ns3::ndn::Consumer::m_retxEvent

protected

Event to check whether or not retransmission should be performed.

Definition at line 141 of file ndn-consumer.hpp.

Referenced by CheckRetxTimeout(), and SetRetxTimer().

◆ m_rtt

Ptr<RttEstimator> ns3::ndn::Consumer::m_rtt

protected

RTT estimator.

Definition at line 143 of file ndn-consumer.hpp.

Referenced by CheckRetxTimeout(), Consumer(), ns3::ndn::ConsumerBatches::ConsumerBatches(), OnData(), OnTimeout(), ns3::ndn::ConsumerBatches::ScheduleNextPacket(), ns3::ndn::ConsumerWindow::ScheduleNextPacket(), ns3::ndn::ConsumerZipfMandelbrot::SendPacket(), and WillSendOutInterest().

◆ m_offTime

Time ns3::ndn::Consumer::m_offTime

protected

Time interval between packets.

Definition at line 145 of file ndn-consumer.hpp.

◆ m_interestName

Name ns3::ndn::Consumer::m_interestName

protected

NDN Name of the Interest (use Name)

Definition at line 146 of file ndn-consumer.hpp.

Referenced by GetTypeId(), ns3::ndn::ConsumerZipfMandelbrot::SendPacket(), and SendPacket().

◆ m_interestLifeTime

Time ns3::ndn::Consumer::m_interestLifeTime

protected

LifeTime for interest packet.

Definition at line 147 of file ndn-consumer.hpp.

Referenced by GetTypeId(), and SendPacket().

The documentation for this class was generated from the following files:

ndnSIM/apps/ndn-consumer.hpp
ndnSIM/apps/ndn-consumer.cpp

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::Application

TraceSources

TraceSources defined in parent class ns3::ndn::App

Member Typedef Documentation

◆ LastRetransmittedInterestDataDelayCallback

◆ FirstInterestDataDelayCallback

Constructor & Destructor Documentation

◆ Consumer()

◆ ~Consumer()

Member Function Documentation

◆ GetTypeId()

◆ OnData()

◆ OnNack()

◆ OnTimeout()

◆ SendPacket()

◆ WillSendOutInterest()

◆ StartApplication()

◆ StopApplication()

◆ ScheduleNextPacket()

◆ CheckRetxTimeout()

◆ SetRetxTimer()

◆ GetRetxTimer()

Member Data Documentation

◆ m_rand

◆ m_seq

◆ m_seqMax

◆ m_sendEvent

◆ m_retxTimer

◆ m_retxEvent

◆ m_rtt

◆ m_offTime

◆ m_interestName

◆ m_interestLifeTime
