ns3::ndn::ConsumerPcon Class Reference

NDN consumer application with more advanced congestion control options. More...

#include <ndn-consumer-pcon.hpp>

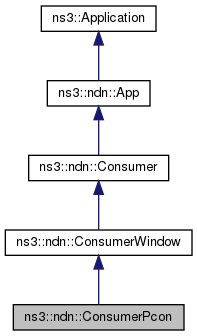

Inheritance diagram for ns3::ndn::ConsumerPcon:

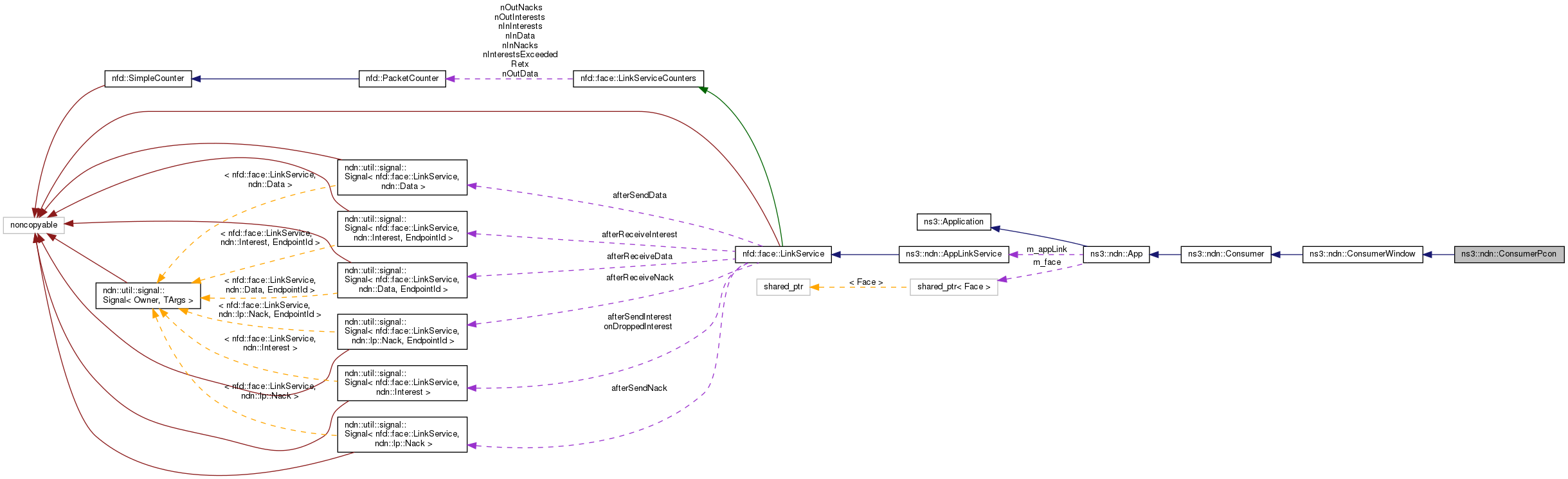

Collaboration diagram for ns3::ndn::ConsumerPcon:

Public Member Functions
	ConsumerPcon ()
virtual void	OnData (shared_ptr< const Data > data) override
	Method that will be called every time new Data arrives. More...
virtual void	OnTimeout (uint32_t sequenceNum) override
	Timeout event. More...
Public Member Functions inherited from ns3::ndn::ConsumerWindow
	ConsumerWindow ()
	Default constructor. More...
virtual void	WillSendOutInterest (uint32_t sequenceNumber)
	An event that is fired just before an Interest packet is actually send out (send is inevitable) More...
Public Member Functions inherited from ns3::ndn::Consumer
	Consumer ()
	Default constructor Sets up randomizer function and packet sequence number. More...
virtual	~Consumer ()
virtual void	OnNack (shared_ptr< const lp::Nack > nack)
	Method that will be called every time new Nack arrives. More...
void	SendPacket ()
	Actually send packet. More...
Public Member Functions inherited from ns3::ndn::App
	App ()
	Default constructor. More...
virtual	~App ()
uint32_t	GetId () const
	Get application ID (ID of applications face) More...
virtual void	OnInterest (shared_ptr< const Interest > interest)
	Method that will be called every time new Interest arrives. More...

Static Public Member Functions
static TypeId	GetTypeId ()
Static Public Member Functions inherited from ns3::ndn::ConsumerWindow
static TypeId	GetTypeId ()
Static Public Member Functions inherited from ns3::ndn::Consumer
static TypeId	GetTypeId ()
Static Public Member Functions inherited from ns3::ndn::App
static TypeId	GetTypeId ()

Additional Inherited Members
Public Types inherited from ns3::ndn::ConsumerWindow
typedef std::function< void(double)>	WindowTraceCallback
Public Types inherited from ns3::ndn::Consumer
typedef void(*	LastRetransmittedInterestDataDelayCallback) (Ptr< App > app, uint32_t seqno, Time delay, int32_t hopCount)
typedef void(*	FirstInterestDataDelayCallback) (Ptr< App > app, uint32_t seqno, Time delay, uint32_t retxCount, int32_t hopCount)
Public Types inherited from ns3::ndn::App
typedef void(*	InterestTraceCallback) (shared_ptr< const Interest >, Ptr< App >, shared_ptr< Face >)
typedef void(*	DataTraceCallback) (shared_ptr< const Data >, Ptr< App >, shared_ptr< Face >)
typedef void(*	NackTraceCallback) (shared_ptr< const lp::Nack >, Ptr< App >, shared_ptr< Face >)
Protected Member Functions inherited from ns3::ndn::ConsumerWindow
virtual void	ScheduleNextPacket ()
	Constructs the Interest packet and sends it using a callback to the underlying NDN protocol. More...
Protected Member Functions inherited from ns3::ndn::Consumer
virtual void	StartApplication ()
	Called at time specified by Start. More...
virtual void	StopApplication ()
	Called at time specified by Stop. More...
void	CheckRetxTimeout ()
	Checks if the packet need to be retransmitted becuase of retransmission timer expiration. More...
void	SetRetxTimer (Time retxTimer)
	Modifies the frequency of checking the retransmission timeouts. More...
Time	GetRetxTimer () const
	Returns the frequency of checking the retransmission timeouts. More...
Protected Member Functions inherited from ns3::ndn::App
virtual void	DoInitialize ()
virtual void	DoDispose ()
Protected Attributes inherited from ns3::ndn::ConsumerWindow
uint32_t	m_payloadSize
double	m_maxSize
uint32_t	m_initialWindow
bool	m_setInitialWindowOnTimeout
TracedValue< double >	m_window
TracedValue< uint32_t >	m_inFlight
Protected Attributes inherited from ns3::ndn::Consumer
Ptr< UniformRandomVariable >	m_rand
	nonce generator More...
uint32_t	m_seq
	currently requested sequence number More...
uint32_t	m_seqMax
	maximum number of sequence number More...
EventId	m_sendEvent
	EventId of pending "send packet" event. More...
Time	m_retxTimer
	Currently estimated retransmission timer. More...
EventId	m_retxEvent
	Event to check whether or not retransmission should be performed. More...
Ptr< RttEstimator >	m_rtt
	RTT estimator. More...
Time	m_offTime
	Time interval between packets. More...
Name	m_interestName
	NDN Name of the Interest (use Name) More...
Time	m_interestLifeTime
	LifeTime for interest packet. More...
Protected Attributes inherited from ns3::ndn::App
bool	m_active
	Flag to indicate that application is active (set by StartApplication and StopApplication) More...
shared_ptr< Face >	m_face
AppLinkService *	m_appLink
uint32_t	m_appId
TracedCallback< shared_ptr< const Interest >, Ptr< App >, shared_ptr< Face > >	m_receivedInterests
	App-level trace of received Interests. More...
TracedCallback< shared_ptr< const Data >, Ptr< App >, shared_ptr< Face > >	m_receivedDatas
	App-level trace of received Data. More...
TracedCallback< shared_ptr< const lp::Nack >, Ptr< App >, shared_ptr< Face > >	m_receivedNacks
	App-level trace of received Nacks. More...
TracedCallback< shared_ptr< const Interest >, Ptr< App >, shared_ptr< Face > >	m_transmittedInterests
	App-level trace of transmitted Interests. More...
TracedCallback< shared_ptr< const Data >, Ptr< App >, shared_ptr< Face > >	m_transmittedDatas
	App-level trace of transmitted Data. More...
TracedCallback< shared_ptr< const lp::Nack >, Ptr< App >, shared_ptr< Face > >	m_transmittedNacks
	App-level trace of transmitted Nacks. More...

Detailed Description

NDN consumer application with more advanced congestion control options.

This app uses the algorithms from "A Practical Congestion Control Scheme for Named Data Networking" (https://dl.acm.org/citation.cfm?id=2984369).

It implements slow start, conservative window adaptation (RFC 6675), and 3 different TCP algorithms: AIMD, BIC, and CUBIC (RFC 8312).

Config Paths

ns3::ndn::ConsumerPcon is accessible through the following paths with Config::Set and Config::Connect:

• "/NodeList/[i]/ApplicationList/[i]/$ns3::ndn::App/$ns3::ndn::Consumer/$ns3::ndn::ConsumerPcon"
• "/NodeList/[i]/ApplicationList/[i]/$ns3::ndn::App/$ns3::ndn::Consumer/$ns3::ndn::ConsumerWindow/$ns3::ndn::ConsumerPcon"
• "/NodeList/[i]/ApplicationList/[i]/$ns3::ndn::App/$ns3::ndn::ConsumerPcon"
• "/NodeList/[i]/ApplicationList/[i]/$ns3::ndn::App/$ns3::ndn::ConsumerWindow/$ns3::ndn::ConsumerPcon"
• "/NodeList/[i]/ApplicationList/[i]/$ns3::ndn::Consumer/$ns3::ndn::ConsumerPcon"
• "/NodeList/[i]/ApplicationList/[i]/$ns3::ndn::Consumer/$ns3::ndn::ConsumerWindow/$ns3::ndn::ConsumerPcon"
• "/NodeList/[i]/ApplicationList/[i]/$ns3::ndn::ConsumerPcon"
• "/NodeList/[i]/ApplicationList/[i]/$ns3::ndn::ConsumerWindow/$ns3::ndn::ConsumerPcon"

Attributes

• CcAlgorithm: Specify which window adaptation algorithm to use (AIMD, BIC, or CUBIC)
  • Set with class: ns3::EnumValue
  • Underlying type:
  • Initial value: AIMD
  • Flags: construct write read
• Beta: TCP Multiplicative Decrease factor
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 0.5
  • Flags: construct write read
• CubicBeta: TCP CUBIC Multiplicative Decrease factor
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 0.8
  • Flags: construct write read
• AddRttSuppress: Minimum number of RTTs (1 + this factor) between window decreases
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 0.5
  • Flags: construct write read
• ReactToCongestionMarks: If true, process received congestion marks
  • Set with class: BooleanValue
  • Underlying type: bool
  • Initial value: true
  • Flags: construct write read
• UseCwa: If true, use Conservative Window Adaptation
  • Set with class: BooleanValue
  • Underlying type: bool
  • Initial value: true
  • Flags: construct write read
• UseCubicFastConvergence: If true, use TCP CUBIC Fast Convergence
  • Set with class: BooleanValue
  • Underlying type: bool
  • Initial value: false
  • Flags: construct write read

Attributes defined in parent class ns3::ndn::ConsumerWindow

• Window: Initial size of the window
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 1
  • Flags: construct write read
• PayloadSize: Average size of content object size (to calculate interest generation rate)
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 1040
  • Flags: construct write read
• Size: Amount of data in megabytes to request, relying on PayloadSize parameter (alternative to MaxSeq attribute)
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: -1
  • Flags: construct write read
• MaxSeq: Maximum sequence number to request (alternative to Size attribute, would activate only if Size is -1). The parameter is activated only if Size negative (not set)
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 4294967295
  • Flags: construct write read
• InitialWindowOnTimeout: Set window to initial value when timeout occurs
  • Set with class: BooleanValue
  • Underlying type: bool
  • Initial value: true
  • Flags: construct write read

Attributes defined in parent class ns3::ndn::Consumer

• StartSeq: Initial sequence number
  • Set with class: ns3::IntegerValue
  • Underlying type: int32_t -2147483648:2147483647
  • Initial value: 0
  • Flags: construct write read
• Prefix: Name of the Interest
  • Set with class: NameValue
  • Underlying type: Name
  • Initial value: /
  • Flags: construct write read
• LifeTime: LifeTime for interest packet
  • Set with class: ns3::TimeValue
  • Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
  • Initial value: 2s
  • Flags: construct write read
• RetxTimer: Timeout defining how frequent retransmission timeouts should be checked
  • Set with class: ns3::TimeValue
  • Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
  • Initial value: 50ms
  • Flags: construct write read

Attributes defined in parent class ns3::Application

• StartTime: Time at which the application will start
  • Set with class: ns3::TimeValue
  • Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
  • Initial value: +0ns
  • Flags: construct write read
• StopTime: Time at which the application will stop
  • Set with class: ns3::TimeValue
  • Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
  • Initial value: +0ns
  • Flags: construct write read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::ndn::ConsumerWindow

• WindowTrace: Window that controls how many outstanding interests are allowed
  Callback signature: ns3::ndn::ConsumerWindow::WindowTraceCallback
• InFlight: Current number of outstanding interests
  Callback signature: ns3::ndn::ConsumerWindow::WindowTraceCallback

TraceSources defined in parent class ns3::ndn::Consumer

• LastRetransmittedInterestDataDelay: Delay between last retransmitted Interest and received Data
  Callback signature: ns3::ndn::Consumer::LastRetransmittedInterestDataDelayCallback
• FirstInterestDataDelay: Delay between first transmitted Interest and received Data
  Callback signature: ns3::ndn::Consumer::FirstInterestDataDelayCallback

TraceSources defined in parent class ns3::ndn::App

• ReceivedInterests: ReceivedInterests
  Callback signature: ns3::ndn::App::InterestTraceCallback
• ReceivedDatas: ReceivedDatas
  Callback signature: ns3::ndn::App::DataTraceCallback
• ReceivedNacks: ReceivedNacks
  Callback signature: ns3::ndn::App::NackTraceCallback
• TransmittedInterests: TransmittedInterests
  Callback signature: ns3::ndn::App::InterestTraceCallback
• TransmittedDatas: TransmittedDatas
  Callback signature: ns3::ndn::App::DataTraceCallback
• TransmittedNacks: TransmittedNacks
  Callback signature: ns3::ndn::App::NackTraceCallback

Size of this type is 944 bytes (on a 64-bit architecture).

Definition at line 46 of file ndn-consumer-pcon.hpp.

Constructor & Destructor Documentation

ConsumerPcon()

ns3::ndn::ConsumerPcon::ConsumerPcon

(

)

Definition at line 88 of file ndn-consumer-pcon.cpp.

Member Function Documentation

GetTypeId()

TypeId ns3::ndn::ConsumerPcon::GetTypeId ( void  )

static

Definition at line 34 of file ndn-consumer-pcon.cpp.

References ns3::ndn::AIMD, ns3::ndn::BIC, and ns3::ndn::CUBIC.

OnData()

void ns3::ndn::ConsumerPcon::OnData ( shared_ptr< const Data >  data )

overridevirtual

Method that will be called every time new Data arrives.

Reimplemented from ns3::ndn::ConsumerWindow.

Definition at line 105 of file ndn-consumer-pcon.cpp.

References ns3::ndn::ConsumerWindow::m_inFlight, ns3::ndn::ConsumerWindow::m_window, ns3::ndn::Consumer::OnData(), and ns3::ndn::ConsumerWindow::ScheduleNextPacket().

OnTimeout()

void ns3::ndn::ConsumerPcon::OnTimeout ( uint32_t  sequenceNumber )

overridevirtual

Timeout event.

Parameters

sequenceNumber

time outed sequence number

Reimplemented from ns3::ndn::ConsumerWindow.

Definition at line 139 of file ndn-consumer-pcon.cpp.

References ns3::ndn::AIMD, ns3::ndn::BIC, ns3::ndn::CUBIC, ns3::ndn::ConsumerWindow::m_inFlight, ns3::ndn::ConsumerWindow::m_initialWindow, ns3::ndn::Consumer::m_seq, ns3::ndn::ConsumerWindow::m_window, ndn::time::steady_clock::now(), and ns3::ndn::Consumer::OnTimeout().

---

The documentation for this class was generated from the following files:

• ndnSIM/apps/ndn-consumer-pcon.hpp
• ndnSIM/apps/ndn-consumer-pcon.cpp
