Base class that all NDN applications should be derived from. More...

#include <ndn-app.hpp>

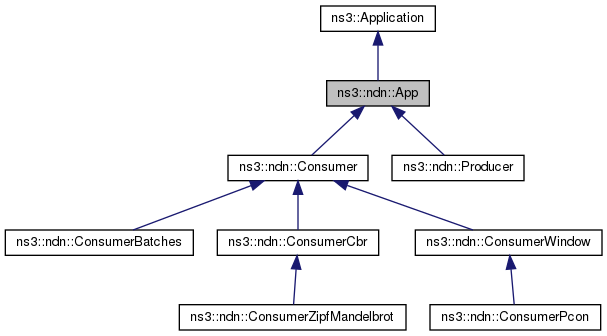

Inheritance diagram for ns3::ndn::App:

[legend]

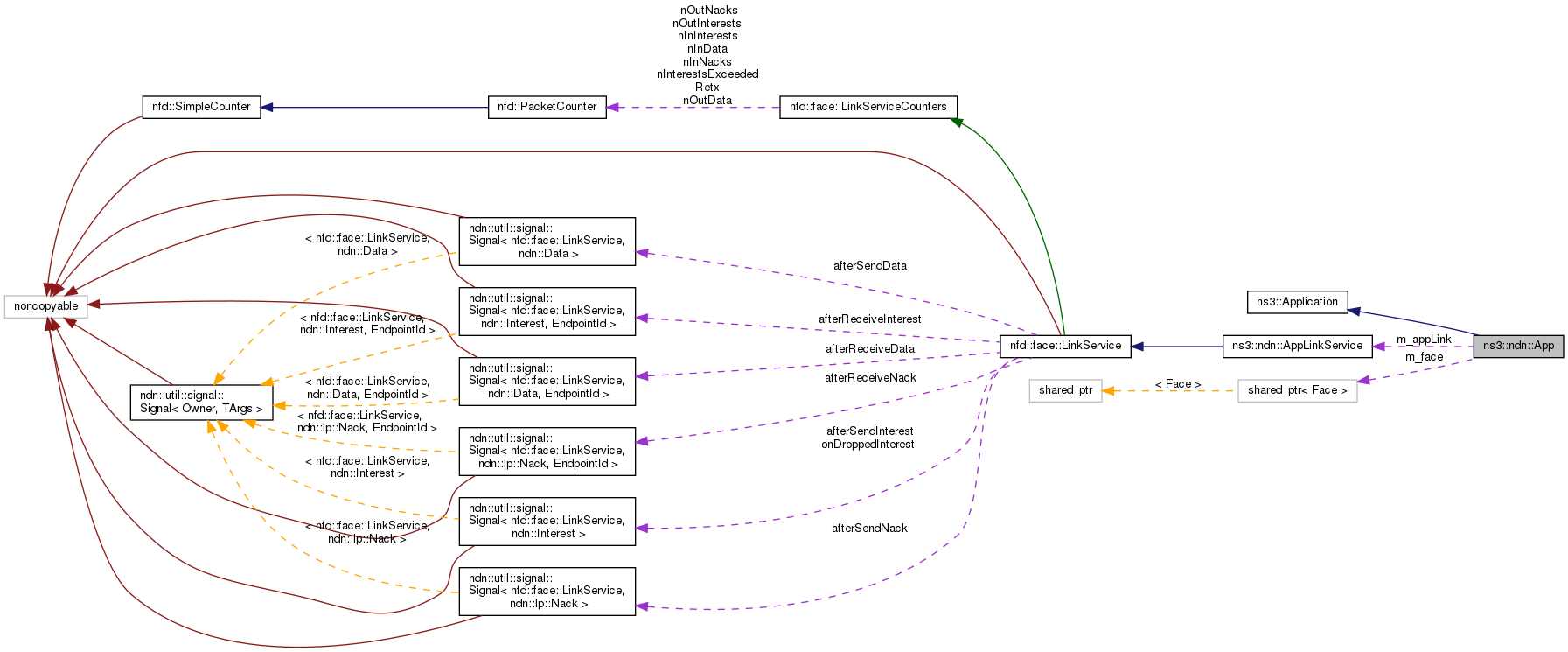

Collaboration diagram for ns3::ndn::App:

[legend]

Public Types
typedef void(*	InterestTraceCallback) (shared_ptr< const Interest >, Ptr< App >, shared_ptr< Face >)

typedef void(*	DataTraceCallback) (shared_ptr< const Data >, Ptr< App >, shared_ptr< Face >)

typedef void(*	NackTraceCallback) (shared_ptr< const lp::Nack >, Ptr< App >, shared_ptr< Face >)

Public Member Functions
	App ()
	Default constructor. More...

virtual	~App ()

uint32_t	GetId () const
	Get application ID (ID of applications face) More...

virtual void	OnInterest (shared_ptr< const Interest > interest)
	Method that will be called every time new Interest arrives. More...

virtual void	OnData (shared_ptr< const Data > data)
	Method that will be called every time new Data arrives. More...

virtual void	OnNack (shared_ptr< const lp::Nack > nack)
	Method that will be called every time new Nack arrives. More...

Static Public Member Functions
static TypeId	GetTypeId ()

Protected Member Functions
virtual void	DoInitialize ()

virtual void	DoDispose ()

virtual void	StartApplication ()
	Called at time specified by Start. More...

virtual void	StopApplication ()
	Called at time specified by Stop. More...

Protected Attributes
bool	m_active
	Flag to indicate that application is active (set by StartApplication and StopApplication) More...

shared_ptr< Face >	m_face

AppLinkService *	m_appLink

uint32_t	m_appId

TracedCallback< shared_ptr< const Interest >, Ptr< App >, shared_ptr< Face > >	m_receivedInterests
	App-level trace of received Interests. More...

TracedCallback< shared_ptr< const Data >, Ptr< App >, shared_ptr< Face > >	m_receivedDatas
	App-level trace of received Data. More...

TracedCallback< shared_ptr< const lp::Nack >, Ptr< App >, shared_ptr< Face > >	m_receivedNacks
	App-level trace of received Nacks. More...

TracedCallback< shared_ptr< const Interest >, Ptr< App >, shared_ptr< Face > >	m_transmittedInterests
	App-level trace of transmitted Interests. More...

TracedCallback< shared_ptr< const Data >, Ptr< App >, shared_ptr< Face > >	m_transmittedDatas
	App-level trace of transmitted Data. More...

TracedCallback< shared_ptr< const lp::Nack >, Ptr< App >, shared_ptr< Face > >	m_transmittedNacks
	App-level trace of transmitted Nacks. More...

Detailed Description

Base class that all NDN applications should be derived from.

The class implements virtual calls onInterest, onNack, and onData

Config Paths

ns3::ndn::App is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/ApplicationList/[i]/$ns3::ndn::App"

No Attributes are defined for this type.

Attributes defined in parent class ns3::Application

StartTime: Time at which the application will start
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: construct write read
StopTime: Time at which the application will stop
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: construct write read

TraceSources

ReceivedInterests: ReceivedInterests
Callback signature: ns3::ndn::App::InterestTraceCallback
ReceivedDatas: ReceivedDatas
Callback signature: ns3::ndn::App::DataTraceCallback
ReceivedNacks: ReceivedNacks
Callback signature: ns3::ndn::App::NackTraceCallback
TransmittedInterests: TransmittedInterests
Callback signature: ns3::ndn::App::InterestTraceCallback
TransmittedDatas: TransmittedDatas
Callback signature: ns3::ndn::App::DataTraceCallback
TransmittedNacks: TransmittedNacks
Callback signature: ns3::ndn::App::NackTraceCallback

Size of this type is 288 bytes (on a 64-bit architecture).

Definition at line 48 of file ndn-app.hpp.

Member Typedef Documentation

◆ InterestTraceCallback

typedef void(* ns3::ndn::App::InterestTraceCallback) (shared_ptr< const Interest >, Ptr< App >, shared_ptr< Face >)

Definition at line 84 of file ndn-app.hpp.

◆ DataTraceCallback

typedef void(* ns3::ndn::App::DataTraceCallback) (shared_ptr< const Data >, Ptr< App >, shared_ptr< Face >)

Definition at line 85 of file ndn-app.hpp.

◆ NackTraceCallback

typedef void(* ns3::ndn::App::NackTraceCallback) (shared_ptr< const lp::Nack >, Ptr< App >, shared_ptr< Face >)

Definition at line 86 of file ndn-app.hpp.

Constructor & Destructor Documentation

◆ App()

ns3::ndn::App::App ( )

Default constructor.

Definition at line 70 of file ndn-app.cpp.

◆ ~App()

ns3::ndn::App::~App ( )

virtual

Definition at line 77 of file ndn-app.cpp.

Member Function Documentation

◆ GetTypeId()

TypeId ns3::ndn::App::GetTypeId ( void )

static

Definition at line 37 of file ndn-app.cpp.

References m_receivedDatas, m_receivedInterests, m_receivedNacks, m_transmittedDatas, m_transmittedInterests, and m_transmittedNacks.

◆ GetId()

uint32_t ns3::ndn::App::GetId ( ) const

Get application ID (ID of applications face)

Definition at line 108 of file ndn-app.cpp.

References m_appId.

Referenced by ns3::ndn::ConsumerBatches::ConsumerBatches(), and ns3::ndn::Producer::OnInterest().

◆ OnInterest()

void ns3::ndn::App::OnInterest ( shared_ptr< const Interest > interest )

virtual

Method that will be called every time new Interest arrives.

Reimplemented in ns3::ndn::Producer.

Definition at line 114 of file ndn-app.cpp.

References m_face, and m_receivedInterests.

Referenced by ns3::ndn::Producer::OnInterest(), and ns3::ndn::AppLinkService::~AppLinkService().

◆ OnData()

void ns3::ndn::App::OnData ( shared_ptr< const Data > data )

virtual

Method that will be called every time new Data arrives.

Reimplemented in ns3::ndn::Consumer, ns3::ndn::ConsumerPcon, and ns3::ndn::ConsumerWindow.

Definition at line 121 of file ndn-app.cpp.

References m_face, and m_receivedDatas.

Referenced by ns3::ndn::Consumer::OnData(), and ns3::ndn::AppLinkService::~AppLinkService().

◆ OnNack()

void ns3::ndn::App::OnNack ( shared_ptr< const lp::Nack > nack )

virtual

Method that will be called every time new Nack arrives.

Reimplemented in ns3::ndn::Consumer.

Definition at line 128 of file ndn-app.cpp.

References m_face, and m_receivedNacks.

Referenced by ns3::ndn::Consumer::OnNack(), and ns3::ndn::AppLinkService::~AppLinkService().

◆ DoInitialize()

void ns3::ndn::App::DoInitialize ( )

protectedvirtual

Definition at line 82 of file ndn-app.cpp.

References m_appId.

◆ DoDispose()

void ns3::ndn::App::DoDispose ( void )

protectedvirtual

Definition at line 97 of file ndn-app.cpp.

◆ StartApplication()

void ns3::ndn::App::StartApplication ( )

protectedvirtual

Called at time specified by Start.

Reimplemented in ns3::ndn::Consumer, and ns3::ndn::Producer.

Definition at line 138 of file ndn-app.cpp.

References ndn::nfd::FACE_SCOPE_LOCAL, m_active, m_appLink, m_face, and nonstd::optional_lite::std11::move().

Referenced by ns3::ndn::Producer::StartApplication(), and ns3::ndn::Consumer::StartApplication().

◆ StopApplication()

void ns3::ndn::App::StopApplication ( )

protectedvirtual

Called at time specified by Stop.

Reimplemented in ns3::ndn::Consumer, and ns3::ndn::Producer.

Definition at line 162 of file ndn-app.cpp.

References m_active, and m_face.

Referenced by ns3::ndn::Producer::StopApplication(), and ns3::ndn::Consumer::StopApplication().

Member Data Documentation

◆ m_active

bool ns3::ndn::App::m_active

protected

Flag to indicate that application is active (set by StartApplication and StopApplication)

Definition at line 103 of file ndn-app.hpp.

Referenced by ns3::ndn::Consumer::OnData(), ns3::ndn::Producer::OnInterest(), ns3::ndn::ConsumerZipfMandelbrot::SendPacket(), ns3::ndn::Consumer::SendPacket(), StartApplication(), and StopApplication().

◆ m_face

shared_ptr<Face> ns3::ndn::App::m_face

protected

Definition at line 104 of file ndn-app.hpp.

Referenced by OnData(), ns3::ndn::Producer::OnInterest(), OnInterest(), OnNack(), ns3::ndn::ConsumerZipfMandelbrot::SendPacket(), ns3::ndn::Consumer::SendPacket(), ns3::ndn::Producer::StartApplication(), StartApplication(), and StopApplication().

◆ m_appLink

AppLinkService* ns3::ndn::App::m_appLink

protected

Definition at line 105 of file ndn-app.hpp.

Referenced by ns3::ndn::Producer::OnInterest(), ns3::ndn::ConsumerZipfMandelbrot::SendPacket(), ns3::ndn::Consumer::SendPacket(), and StartApplication().

◆ m_appId

uint32_t ns3::ndn::App::m_appId

protected

Definition at line 107 of file ndn-app.hpp.

Referenced by DoInitialize(), and GetId().

◆ m_receivedInterests

TracedCallback<shared_ptr<const Interest>, Ptr<App>, shared_ptr<Face> > ns3::ndn::App::m_receivedInterests

protected

App-level trace of received Interests.

Definition at line 110 of file ndn-app.hpp.

Referenced by GetTypeId(), and OnInterest().

◆ m_receivedDatas

TracedCallback<shared_ptr<const Data>, Ptr<App>, shared_ptr<Face> > ns3::ndn::App::m_receivedDatas

protected

App-level trace of received Data.

Definition at line 113 of file ndn-app.hpp.

Referenced by GetTypeId(), and OnData().

◆ m_receivedNacks

TracedCallback<shared_ptr<const lp::Nack>, Ptr<App>, shared_ptr<Face> > ns3::ndn::App::m_receivedNacks

protected

App-level trace of received Nacks.

Definition at line 116 of file ndn-app.hpp.

Referenced by GetTypeId(), and OnNack().

◆ m_transmittedInterests

TracedCallback<shared_ptr<const Interest>, Ptr<App>, shared_ptr<Face> > ns3::ndn::App::m_transmittedInterests

protected

App-level trace of transmitted Interests.

Definition at line 119 of file ndn-app.hpp.

Referenced by GetTypeId(), ns3::ndn::ConsumerZipfMandelbrot::SendPacket(), and ns3::ndn::Consumer::SendPacket().

◆ m_transmittedDatas

TracedCallback<shared_ptr<const Data>, Ptr<App>, shared_ptr<Face> > ns3::ndn::App::m_transmittedDatas

protected

App-level trace of transmitted Data.

Definition at line 122 of file ndn-app.hpp.

Referenced by GetTypeId(), and ns3::ndn::Producer::OnInterest().

◆ m_transmittedNacks

TracedCallback<shared_ptr<const lp::Nack>, Ptr<App>, shared_ptr<Face> > ns3::ndn::App::m_transmittedNacks

protected

App-level trace of transmitted Nacks.

Definition at line 125 of file ndn-app.hpp.

Referenced by GetTypeId().

The documentation for this class was generated from the following files:

ndnSIM/apps/ndn-app.hpp
ndnSIM/apps/ndn-app.cpp
