Ndn application for sending out Interest packets at a "constant" rate (Poisson process) More...

#include <ndn-consumer-cbr.hpp>

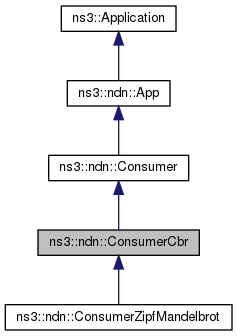

Inheritance diagram for ns3::ndn::ConsumerCbr:

[legend]

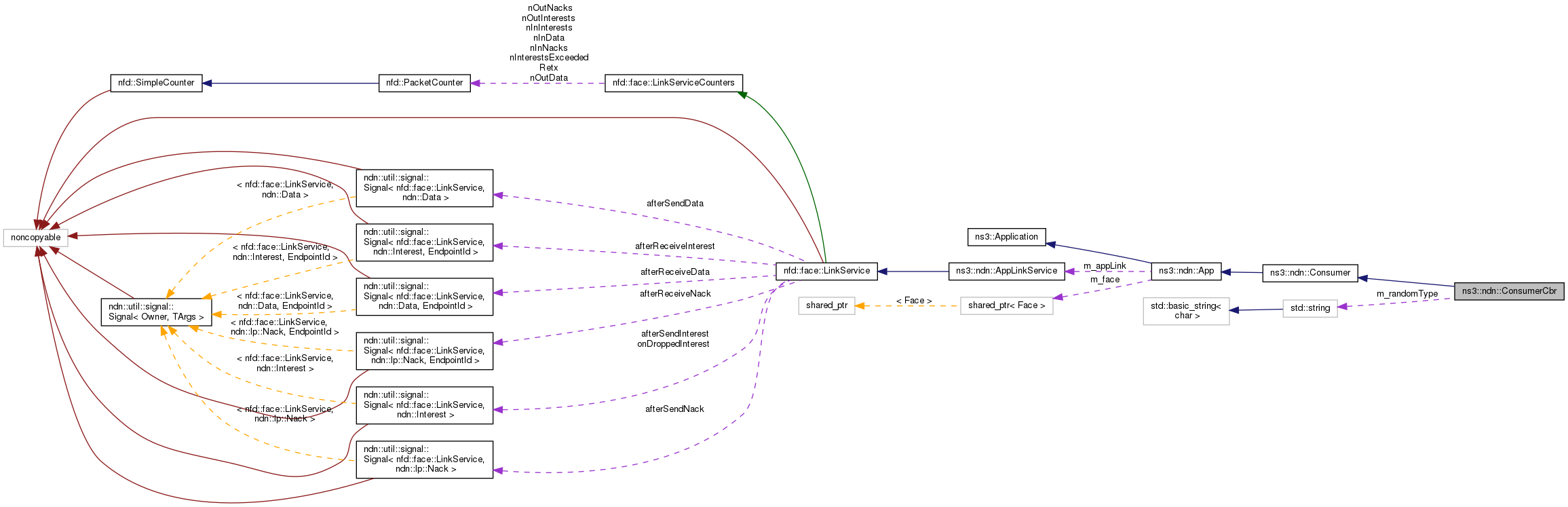

Collaboration diagram for ns3::ndn::ConsumerCbr:

[legend]

Public Member Functions
	ConsumerCbr ()
	Default constructor Sets up randomizer function and packet sequence number. More...

virtual	~ConsumerCbr ()

Public Member Functions inherited from ns3::ndn::Consumer
	Consumer ()
	Default constructor Sets up randomizer function and packet sequence number. More...

virtual	~Consumer ()

virtual void	OnData (shared_ptr< const Data > contentObject)
	Method that will be called every time new Data arrives. More...

virtual void	OnNack (shared_ptr< const lp::Nack > nack)
	Method that will be called every time new Nack arrives. More...

virtual void	OnTimeout (uint32_t sequenceNumber)
	Timeout event. More...

void	SendPacket ()
	Actually send packet. More...

virtual void	WillSendOutInterest (uint32_t sequenceNumber)
	An event that is fired just before an Interest packet is actually send out (send is inevitable) More...

Public Member Functions inherited from ns3::ndn::App
	App ()
	Default constructor. More...

virtual	~App ()

uint32_t	GetId () const
	Get application ID (ID of applications face) More...

virtual void	OnInterest (shared_ptr< const Interest > interest)
	Method that will be called every time new Interest arrives. More...

Static Public Member Functions
static TypeId	GetTypeId ()

Static Public Member Functions inherited from ns3::ndn::Consumer
static TypeId	GetTypeId ()

Static Public Member Functions inherited from ns3::ndn::App
static TypeId	GetTypeId ()

Protected Member Functions
virtual void	ScheduleNextPacket ()
	Constructs the Interest packet and sends it using a callback to the underlying NDN protocol. More...

void	SetRandomize (const std::string &value)
	Set type of frequency randomization. More...

std::string	GetRandomize () const
	Get type of frequency randomization. More...

Protected Member Functions inherited from ns3::ndn::Consumer
virtual void	StartApplication ()
	Called at time specified by Start. More...

virtual void	StopApplication ()
	Called at time specified by Stop. More...

void	CheckRetxTimeout ()
	Checks if the packet need to be retransmitted becuase of retransmission timer expiration. More...

void	SetRetxTimer (Time retxTimer)
	Modifies the frequency of checking the retransmission timeouts. More...

Time	GetRetxTimer () const
	Returns the frequency of checking the retransmission timeouts. More...

Protected Member Functions inherited from ns3::ndn::App
virtual void	DoInitialize ()

virtual void	DoDispose ()

Protected Attributes
double	m_frequency

bool	m_firstTime

Ptr< RandomVariableStream >	m_random

std::string	m_randomType

Protected Attributes inherited from ns3::ndn::Consumer
Ptr< UniformRandomVariable >	m_rand
	nonce generator More...

uint32_t	m_seq
	currently requested sequence number More...

uint32_t	m_seqMax
	maximum number of sequence number More...

EventId	m_sendEvent
	EventId of pending "send packet" event. More...

Time	m_retxTimer
	Currently estimated retransmission timer. More...

EventId	m_retxEvent
	Event to check whether or not retransmission should be performed. More...

Ptr< RttEstimator >	m_rtt
	RTT estimator. More...

Time	m_offTime
	Time interval between packets. More...

Name	m_interestName
	NDN Name of the Interest (use Name) More...

Time	m_interestLifeTime
	LifeTime for interest packet. More...

Protected Attributes inherited from ns3::ndn::App
bool	m_active
	Flag to indicate that application is active (set by StartApplication and StopApplication) More...

shared_ptr< Face >	m_face

AppLinkService *	m_appLink

uint32_t	m_appId

TracedCallback< shared_ptr< const Interest >, Ptr< App >, shared_ptr< Face > >	m_receivedInterests
	App-level trace of received Interests. More...

TracedCallback< shared_ptr< const Data >, Ptr< App >, shared_ptr< Face > >	m_receivedDatas
	App-level trace of received Data. More...

TracedCallback< shared_ptr< const lp::Nack >, Ptr< App >, shared_ptr< Face > >	m_receivedNacks
	App-level trace of received Nacks. More...

TracedCallback< shared_ptr< const Interest >, Ptr< App >, shared_ptr< Face > >	m_transmittedInterests
	App-level trace of transmitted Interests. More...

TracedCallback< shared_ptr< const Data >, Ptr< App >, shared_ptr< Face > >	m_transmittedDatas
	App-level trace of transmitted Data. More...

TracedCallback< shared_ptr< const lp::Nack >, Ptr< App >, shared_ptr< Face > >	m_transmittedNacks
	App-level trace of transmitted Nacks. More...

Additional Inherited Members
Public Types inherited from ns3::ndn::Consumer
typedef void(*	LastRetransmittedInterestDataDelayCallback) (Ptr< App > app, uint32_t seqno, Time delay, int32_t hopCount)

typedef void(*	FirstInterestDataDelayCallback) (Ptr< App > app, uint32_t seqno, Time delay, uint32_t retxCount, int32_t hopCount)

Public Types inherited from ns3::ndn::App
typedef void(*	InterestTraceCallback) (shared_ptr< const Interest >, Ptr< App >, shared_ptr< Face >)

typedef void(*	DataTraceCallback) (shared_ptr< const Data >, Ptr< App >, shared_ptr< Face >)

typedef void(*	NackTraceCallback) (shared_ptr< const lp::Nack >, Ptr< App >, shared_ptr< Face >)

Detailed Description

Ndn application for sending out Interest packets at a "constant" rate (Poisson process)

Config Paths

ns3::ndn::ConsumerCbr is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/ApplicationList/[i]/$ns3::ndn::App/$ns3::ndn::Consumer/$ns3::ndn::ConsumerCbr"
"/NodeList/[i]/ApplicationList/[i]/$ns3::ndn::App/$ns3::ndn::ConsumerCbr"
"/NodeList/[i]/ApplicationList/[i]/$ns3::ndn::Consumer/$ns3::ndn::ConsumerCbr"
"/NodeList/[i]/ApplicationList/[i]/$ns3::ndn::ConsumerCbr"

Attributes

Frequency: Frequency of interest packets
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1.0
- Flags: construct write read
Randomize: Type of send time randomization: none (default), uniform, exponential
- Set with class: StringValue
- Underlying type:
- Initial value: none
- Flags: construct write read
MaxSeq: Maximum sequence number to request
- Set with class: ns3::IntegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 4294967295
- Flags: construct write read

Attributes defined in parent class ns3::ndn::Consumer

StartSeq: Initial sequence number
- Set with class: ns3::IntegerValue
- Underlying type: int32_t -2147483648:2147483647
- Initial value: 0
- Flags: construct write read
Prefix: Name of the Interest
- Set with class: NameValue
- Underlying type: Name
- Initial value: /
- Flags: construct write read
LifeTime: LifeTime for interest packet
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: 2s
- Flags: construct write read
RetxTimer: Timeout defining how frequent retransmission timeouts should be checked
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: 50ms
- Flags: construct write read

Attributes defined in parent class ns3::Application

StartTime: Time at which the application will start
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: construct write read
StopTime: Time at which the application will stop
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: construct write read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::ndn::Consumer

LastRetransmittedInterestDataDelay: Delay between last retransmitted Interest and received Data
Callback signature: ns3::ndn::Consumer::LastRetransmittedInterestDataDelayCallback
FirstInterestDataDelay: Delay between first transmitted Interest and received Data
Callback signature: ns3::ndn::Consumer::FirstInterestDataDelayCallback

TraceSources defined in parent class ns3::ndn::App

ReceivedInterests: ReceivedInterests
Callback signature: ns3::ndn::App::InterestTraceCallback
ReceivedDatas: ReceivedDatas
Callback signature: ns3::ndn::App::DataTraceCallback
ReceivedNacks: ReceivedNacks
Callback signature: ns3::ndn::App::NackTraceCallback
TransmittedInterests: TransmittedInterests
Callback signature: ns3::ndn::App::InterestTraceCallback
TransmittedDatas: TransmittedDatas
Callback signature: ns3::ndn::App::DataTraceCallback
TransmittedNacks: TransmittedNacks
Callback signature: ns3::ndn::App::NackTraceCallback

Size of this type is 768 bytes (on a 64-bit architecture).

Definition at line 34 of file ndn-consumer-cbr.hpp.

Constructor & Destructor Documentation

◆ ConsumerCbr()

ns3::ndn::ConsumerCbr::ConsumerCbr ( )

Default constructor Sets up randomizer function and packet sequence number.

Definition at line 66 of file ndn-consumer-cbr.cpp.

References ns3::ndn::Consumer::m_seqMax.

◆ ~ConsumerCbr()

ns3::ndn::ConsumerCbr::~ConsumerCbr ( )

virtual

Definition at line 74 of file ndn-consumer-cbr.cpp.

Member Function Documentation

◆ GetTypeId()

TypeId ns3::ndn::ConsumerCbr::GetTypeId ( void )

static

Definition at line 40 of file ndn-consumer-cbr.cpp.

References GetRandomize(), m_frequency, ns3::ndn::Consumer::m_seqMax, and SetRandomize().

◆ ScheduleNextPacket()

void ns3::ndn::ConsumerCbr::ScheduleNextPacket ( )

protectedvirtual

Constructs the Interest packet and sends it using a callback to the underlying NDN protocol.

Implements ns3::ndn::Consumer.

Reimplemented in ns3::ndn::ConsumerZipfMandelbrot.

Definition at line 79 of file ndn-consumer-cbr.cpp.

References m_firstTime, m_frequency, m_random, ns3::ndn::Consumer::m_sendEvent, and ns3::ndn::Consumer::SendPacket().

◆ SetRandomize()

void ns3::ndn::ConsumerCbr::SetRandomize ( const std::string & value )

protected

Set type of frequency randomization.

Parameters

value Either 'none', 'uniform', or 'exponential'

Definition at line 95 of file ndn-consumer-cbr.cpp.

References m_frequency, m_random, and m_randomType.

Referenced by GetTypeId().

◆ GetRandomize()

std::string ns3::ndn::ConsumerCbr::GetRandomize ( ) const

protected

Get type of frequency randomization.

Returns: either 'none', 'uniform', or 'exponential'

Definition at line 114 of file ndn-consumer-cbr.cpp.

References m_randomType.

Referenced by GetTypeId().

Member Data Documentation

◆ m_frequency

double ns3::ndn::ConsumerCbr::m_frequency

protected

Definition at line 69 of file ndn-consumer-cbr.hpp.

Referenced by GetTypeId(), ScheduleNextPacket(), ns3::ndn::ConsumerZipfMandelbrot::ScheduleNextPacket(), and SetRandomize().

◆ m_firstTime

bool ns3::ndn::ConsumerCbr::m_firstTime

protected

Definition at line 70 of file ndn-consumer-cbr.hpp.

Referenced by ScheduleNextPacket(), and ns3::ndn::ConsumerZipfMandelbrot::ScheduleNextPacket().

◆ m_random

Ptr<RandomVariableStream> ns3::ndn::ConsumerCbr::m_random

protected

Definition at line 71 of file ndn-consumer-cbr.hpp.

Referenced by ScheduleNextPacket(), ns3::ndn::ConsumerZipfMandelbrot::ScheduleNextPacket(), and SetRandomize().

◆ m_randomType

std::string ns3::ndn::ConsumerCbr::m_randomType

protected

Definition at line 72 of file ndn-consumer-cbr.hpp.

Referenced by GetRandomize(), and SetRandomize().

The documentation for this class was generated from the following files:

ndnSIM/apps/ndn-consumer-cbr.hpp
ndnSIM/apps/ndn-consumer-cbr.cpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::ndn::Consumer

Attributes defined in parent class ns3::Application

TraceSources defined in parent class ns3::ndn::Consumer

TraceSources defined in parent class ns3::ndn::App

Constructor & Destructor Documentation

◆ ConsumerCbr()

◆ ~ConsumerCbr()

Member Function Documentation

◆ GetTypeId()

◆ ScheduleNextPacket()

◆ SetRandomize()

◆ GetRandomize()

Member Data Documentation

◆ m_frequency

◆ m_firstTime

◆ m_random

◆ m_randomType
