nfd::FibManager Class Reference

Implements the FIB Management of NFD Management Protocol. More...

#include <fib-manager.hpp>

Inheritance diagram for nfd::FibManager:

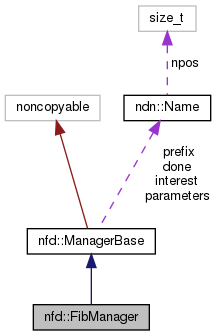

Collaboration diagram for nfd::FibManager:

Public Member Functions
	FibManager (fib::Fib &fib, const FaceTable &faceTable, Dispatcher &dispatcher, CommandAuthenticator &authenticator)
Public Member Functions inherited from nfd::ManagerBase
virtual	~ManagerBase ()
const std::string &	getModule () const

Additional Inherited Members
Protected Member Functions inherited from nfd::ManagerBase
	ManagerBase (const std::string &module, Dispatcher &dispatcher)
	ManagerBase (const std::string &module, Dispatcher &dispatcher, CommandAuthenticator &authenticator)
template<typename Command >
void	registerCommandHandler (const std::string &verb, const ControlCommandHandler &handler)
void	registerStatusDatasetHandler (const std::string &verb, const ndn::mgmt::StatusDatasetHandler &handler)
ndn::mgmt::PostNotification	registerNotificationStream (const std::string &verb)
PartialName	makeRelPrefix (const std::string &verb)
	Generates the relative prefix for a handler by appending the verb name to the module name. More...
Static Protected Member Functions inherited from nfd::ManagerBase
static bool	validateParameters (const ControlCommand &command, const ndn::mgmt::ControlParameters &parameters)
	Validates the parameters for a given command. More...
static void	handleCommand (shared_ptr< ControlCommand > command, const ControlCommandHandler &handler, const Name &prefix, const Interest &interest, const ndn::mgmt::ControlParameters &params, const ndn::mgmt::CommandContinuation &done)
	Handles a control command. More...
Protected Attributes inherited from nfd::ManagerBase
NFD_PUBLIC_WITH_TESTS_ELSE_PROTECTED	__pad0__: using ControlCommandHandler = std::function<void(const ControlCommand& command
NFD_PUBLIC_WITH_TESTS_ELSE_PROTECTED const Name &	prefix
NFD_PUBLIC_WITH_TESTS_ELSE_PROTECTED const Name const Interest &	interest
NFD_PUBLIC_WITH_TESTS_ELSE_PROTECTED const Name const Interest const ControlParameters &	parameters
NFD_PUBLIC_WITH_TESTS_ELSE_PROTECTED const Name const Interest const ControlParameters const ndn::mgmt::CommandContinuation	done
NFD_PUBLIC_WITH_TESTS_ELSE_PROTECTED	__pad1__: static void extractRequester(const Interest& interest
NFD_PUBLIC_WITH_TESTS_ELSE_PROTECTED const ndn::mgmt::AcceptContinuation &	accept
NFD_PUBLIC_WITH_TESTS_ELSE_PRIVATE	__pad2__: virtual ndn::mgmt::Authorization makeAuthorization(const std::string& verb)

Detailed Description

Implements the FIB Management of NFD Management Protocol.

See also

https://redmine.named-data.net/projects/nfd/wiki/FibMgmt

Definition at line 43 of file fib-manager.hpp.

Constructor & Destructor Documentation

FibManager()

nfd::FibManager::FibManager	(	fib::Fib &	fib,
		const FaceTable &	faceTable,
		Dispatcher &	dispatcher,
		CommandAuthenticator &	authenticator
	)

Definition at line 41 of file fib-manager.cpp.

References nfd::fib::Fib::addOrUpdateNextHop(), ndn::mgmt::StatusDatasetContext::append(), nfd::ManagerBase::done, ndn::mgmt::StatusDatasetContext::end(), Face, nfd::fib::Fib::FIB_ENTRY_REMOVED, nfd::fib::Fib::findExactMatch(), nfd::FaceTable::get(), nfd::fib::NextHop::getCost(), ndn::nfd::ControlParameters::getCost(), nfd::fib::NextHop::getFace(), ndn::nfd::ControlParameters::getFaceId(), nfd::fib::Fib::getMaxDepth(), ndn::nfd::ControlParameters::getName(), ndn::TagHost::getTag(), nfd::fib::Fib::insert(), nfd::ManagerBase::interest, nfd::fib::Fib::NEXTHOP_REMOVED, ndn::tlv::nfd::NextHopRecord, NFD_LOG_DEBUG, NFD_LOG_TRACE, nfd::fib::Fib::NO_SUCH_NEXTHOP, nfd::ManagerBase::parameters, nfd::ManagerBase::prefix, nfd::ManagerBase::registerStatusDatasetHandler(), nfd::fib::Fib::removeNextHop(), ndn::nfd::ControlParameters::setFaceId(), ndn::Name::size(), ndn::to_string(), and ndn::nfd::ControlParameters::wireEncode().

---

The documentation for this class was generated from the following files:

• ndnSIM/NFD/daemon/mgmt/fib-manager.hpp
• ndnSIM/NFD/daemon/mgmt/fib-manager.cpp
