nfd::fib::Fib Class Reference

Represents the Forwarding Information Base (FIB) More...

#include <fib.hpp>

Inheritance diagram for nfd::fib::Fib:

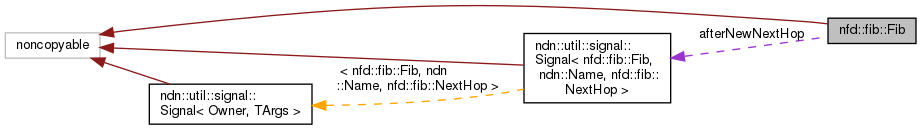

Collaboration diagram for nfd::fib::Fib:

Public Types
enum	RemoveNextHopResult { RemoveNextHopResult::NO_SUCH_NEXTHOP, RemoveNextHopResult::NEXTHOP_REMOVED, RemoveNextHopResult::FIB_ENTRY_REMOVED }
typedef boost::transformed_range< name_tree::GetTableEntry< Entry >, const name_tree::Range >	Range
typedef boost::range_iterator< Range >::type	const_iterator

Public Member Functions
	Fib (NameTree &nameTree)
size_t	size () const
const Entry &	findLongestPrefixMatch (const Name &prefix) const
	Performs a longest prefix match. More...
const Entry &	findLongestPrefixMatch (const pit::Entry &pitEntry) const
	Performs a longest prefix match. More...
const Entry &	findLongestPrefixMatch (const measurements::Entry &measurementsEntry) const
	Performs a longest prefix match. More...
Entry *	findExactMatch (const Name &prefix)
	Performs an exact match lookup. More...
std::pair< Entry *, bool >	insert (const Name &prefix)
	Find or insert a FIB entry. More...
void	erase (const Name &prefix)
void	erase (const Entry &entry)
void	addOrUpdateNextHop (Entry &entry, Face &face, uint64_t cost)
	Add a NextHop record. More...
RemoveNextHopResult	removeNextHop (Entry &entry, const Face &face)
	Remove the NextHop record for face from entry. More...
const_iterator	begin () const
const_iterator	end () const

Static Public Member Functions
static constexpr size_t	getMaxDepth ()
	Maximum number of components in a FIB entry prefix. More...

Public Attributes
signal::Signal< Fib, Name, NextHop >	afterNewNextHop
	signals on Fib entry nexthop creation More...

Detailed Description

Represents the Forwarding Information Base (FIB)

Definition at line 47 of file fib.hpp.

Member Typedef Documentation

Range

typedef boost::transformed_range<name_tree::GetTableEntry<Entry>, const name_tree::Range> nfd::fib::Fib::Range

Definition at line 125 of file fib.hpp.

const_iterator

typedef boost::range_iterator<Range>::type nfd::fib::Fib::const_iterator

Definition at line 126 of file fib.hpp.

Member Enumeration Documentation

RemoveNextHopResult

enum nfd::fib::Fib::RemoveNextHopResult

strong

Enumerator
NO_SUCH_NEXTHOP	the nexthop is not found
NEXTHOP_REMOVED	the nexthop is removed and the fib entry stays
FIB_ENTRY_REMOVED	the nexthop is removed and the fib entry is removed

Definition at line 113 of file fib.hpp.

Constructor & Destructor Documentation

Fib()

nfd::fib::Fib::Fib ( NameTree &  nameTree )

explicit

Definition at line 45 of file fib.cpp.

References nfd::name_tree::NameTree::findLongestPrefixMatch(), nfd::name_tree::Entry::getFibEntry(), and nfd::fib::nteHasFibEntry().

Member Function Documentation

size()

size_t nfd::fib::Fib::size ( ) const

inline

Definition at line 54 of file fib.hpp.

Referenced by nfd::ForwarderStatusManager::ForwarderStatusManager().

findLongestPrefixMatch() [1/3]

const Entry & nfd::fib::Fib::findLongestPrefixMatch

(

const Name &

prefix

)

const

Performs a longest prefix match.

Definition at line 62 of file fib.cpp.

Referenced by nfd::fw::Strategy::lookupFib().

findLongestPrefixMatch() [2/3]

const Entry & nfd::fib::Fib::findLongestPrefixMatch

(

const pit::Entry &

pitEntry

)

const

Performs a longest prefix match.

This is equivalent to findLongestPrefixMatch(pitEntry.getName())

Definition at line 68 of file fib.cpp.

findLongestPrefixMatch() [3/3]

const Entry & nfd::fib::Fib::findLongestPrefixMatch

(

const measurements::Entry &

measurementsEntry

)

const

Performs a longest prefix match.

This is equivalent to findLongestPrefixMatch(measurementsEntry.getName())

Definition at line 74 of file fib.cpp.

findExactMatch()

Entry * nfd::fib::Fib::findExactMatch

(

const Name &

prefix

)

Performs an exact match lookup.

Definition at line 80 of file fib.cpp.

References nfd::name_tree::NameTree::findExactMatch(), and nfd::name_tree::Entry::getFibEntry().

Referenced by nfd::FibManager::FibManager().

getMaxDepth()

static constexpr size_t nfd::fib::Fib::getMaxDepth ( )

inlinestatic

Maximum number of components in a FIB entry prefix.

Definition at line 88 of file fib.hpp.

References Face, and nfd::name_tree::NameTree::getMaxDepth().

Referenced by nfd::RibManager::enableLocalFields(), and nfd::FibManager::FibManager().

insert()

std::pair< Entry *, bool > nfd::fib::Fib::insert

(

const Name &

prefix

)

Find or insert a FIB entry.

Parameters

prefix

FIB entry name; it must not have more than getMaxDepth() components.

Returns

the entry, and true for new entry or false for existing entry

Definition at line 90 of file fib.cpp.

References erase(), nfd::name_tree::NameTree::eraseIfEmpty(), nfd::name_tree::Entry::getFibEntry(), nfd::name_tree::NameTree::lookup(), and nfd::name_tree::Entry::setFibEntry().

Referenced by nfd::FibManager::FibManager().

erase() [1/2]

void nfd::fib::Fib::erase

(

const Name &

prefix

)

Definition at line 116 of file fib.cpp.

References nfd::name_tree::NameTree::findExactMatch().

Referenced by erase(), insert(), and removeNextHop().

erase() [2/2]

void nfd::fib::Fib::erase

(

const Entry &

entry

)

Definition at line 125 of file fib.cpp.

References erase(), and nfd::name_tree::NameTree::getEntry().

addOrUpdateNextHop()

void nfd::fib::Fib::addOrUpdateNextHop	(	Entry &	entry,
		Face &	face,
		uint64_t	cost
	)

Add a NextHop record.

If a NextHop record for face already exists in entry, its cost is set to cost.

Definition at line 136 of file fib.cpp.

References afterNewNextHop, and nfd::fib::Entry::getPrefix().

Referenced by nfd::FibManager::FibManager().

removeNextHop()

Fib::RemoveNextHopResult nfd::fib::Fib::removeNextHop	(	Entry &	entry,
		const Face &	face
	)

Remove the NextHop record for face from entry.

Definition at line 147 of file fib.cpp.

References erase(), FIB_ENTRY_REMOVED, nfd::name_tree::NameTree::fullEnumerate(), nfd::name_tree::NameTree::getEntry(), nfd::name_tree::Entry::getFibEntry(), nfd::fib::Entry::hasNextHops(), NEXTHOP_REMOVED, NO_SUCH_NEXTHOP, and nfd::fib::nteHasFibEntry().

Referenced by nfd::cleanupOnFaceRemoval(), and nfd::FibManager::FibManager().

begin()

const_iterator nfd::fib::Fib::begin ( ) const

inline

Returns

an iterator to the beginning

Note

The iteration order is implementation-defined.

Warning

Undefined behavior may occur if a FIB/PIT/Measurements/StrategyChoice entry is inserted or erased during iteration.

Definition at line 134 of file fib.hpp.

end()

const_iterator nfd::fib::Fib::end ( ) const

inline

Returns

an iterator to the end

See also

begin()

Definition at line 143 of file fib.hpp.

Member Data Documentation

afterNewNextHop

signal::Signal<Fib, Name, NextHop> nfd::fib::Fib::afterNewNextHop

signals on Fib entry nexthop creation

Definition at line 151 of file fib.hpp.

Referenced by addOrUpdateNextHop(), and nfd::Forwarder::Forwarder().

---

The documentation for this class was generated from the following files:

• ndnSIM/NFD/daemon/table/fib.hpp
• ndnSIM/NFD/daemon/table/fib.cpp
