An Interest table entry. More...

#include <pit-entry.hpp>

Inheritance diagram for nfd::pit::Entry:

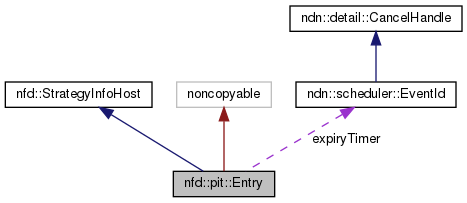

Collaboration diagram for nfd::pit::Entry:

Public Member Functions
	Entry (const Interest &interest)

const Interest &	getInterest () const

const Name &	getName () const

bool	canMatch (const Interest &interest, size_t nEqualNameComps=0) const

const InRecordCollection &	getInRecords () const

bool	hasInRecords () const

InRecordCollection::iterator	in_begin ()

InRecordCollection::const_iterator	in_begin () const

InRecordCollection::iterator	in_end ()

InRecordCollection::const_iterator	in_end () const

InRecordCollection::iterator	getInRecord (const Face &face)
	get the in-record for `face` More...

InRecordCollection::iterator	insertOrUpdateInRecord (Face &face, const Interest &interest)
	insert or update an in-record More...

void	deleteInRecord (const Face &face)
	delete the in-record for `face` if it exists More...

void	clearInRecords ()
	delete all in-records More...

const OutRecordCollection &	getOutRecords () const

bool	hasOutRecords () const

OutRecordCollection::iterator	out_begin ()

OutRecordCollection::const_iterator	out_begin () const

OutRecordCollection::iterator	out_end ()

OutRecordCollection::const_iterator	out_end () const

OutRecordCollection::iterator	getOutRecord (const Face &face)
	get the out-record for `face` More...

OutRecordCollection::iterator	insertOrUpdateOutRecord (Face &face, const Interest &interest)
	insert or update an out-record More...

void	deleteOutRecord (const Face &face)
	delete the out-record for `face` if it exists More...

Public Member Functions inherited from nfd::StrategyInfoHost
template<typename T >
T *	getStrategyInfo () const
	Get a StrategyInfo item. More...

template<typename T , typename ... A>
std::pair< T *, bool >	insertStrategyInfo (A &&... args)
	Insert a StrategyInfo item. More...

template<typename T >
size_t	eraseStrategyInfo ()
	Erase a StrategyInfo item. More...

void	clearStrategyInfo ()
	Clear all StrategyInfo items. More...

Public Attributes
scheduler::EventId	expiryTimer
	Expiry timer. More...

bool	isSatisfied = false
	Indicates whether this PIT entry is satisfied. More...

time::milliseconds	dataFreshnessPeriod = 0_ms
	Data freshness period. More...

Friends
class	name_tree::Entry

Detailed Description

An Interest table entry.

An Interest table entry represents either a pending Interest or a recently satisfied Interest. Each entry contains a collection of in-records, a collection of out-records, and two timers used in forwarding pipelines. In addition, the entry, in-records, and out-records are subclasses of StrategyInfoHost, which allows forwarding strategy to store arbitrary information on them.

Definition at line 58 of file pit-entry.hpp.

Constructor & Destructor Documentation

◆ Entry()

nfd::pit::Entry::Entry ( const Interest & interest )

explicit

Definition at line 33 of file pit-entry.cpp.

Member Function Documentation

◆ getInterest()

const Interest& nfd::pit::Entry::getInterest ( ) const

inline

Returns: the representative Interest of the PIT entry

Note: Every Interest in in-records and out-records should have same Name and Selectors as the representative Interest.

Todo:: #3162 require Link field to match the representative Interest

Definition at line 70 of file pit-entry.hpp.

Referenced by nfd::fw::Strategy::lookupFib(), and nfd::Forwarder::onNewNextHop().

◆ getName()

const Name& nfd::pit::Entry::getName ( ) const

inline

Returns: Interest Name

Definition at line 78 of file pit-entry.hpp.

Referenced by nfd::fw::Strategy::afterReceiveLoopedInterest(), nfd::measurements::Measurements::findLongestPrefixMatch(), nfd::name_tree::NameTree::findLongestPrefixMatch(), nfd::name_tree::NameTree::lookup(), and nfd::Forwarder::onNewNextHop().

◆ canMatch()

bool nfd::pit::Entry::canMatch	(	const Interest &	interest,
		size_t	nEqualNameComps = `0`
	)		const

Returns: whether interest matches this entry

Parameters

interest	the Interest
nEqualNameComps	number of initial name components guaranteed to be equal

Definition at line 39 of file pit-entry.cpp.

References ndn::Interest::getCanBePrefix(), ndn::Interest::getMustBeFresh(), ndn::Interest::getName(), and ndn::Name::npos.

Referenced by insertOrUpdateInRecord(), and insertOrUpdateOutRecord().

◆ getInRecords()

const InRecordCollection& nfd::pit::Entry::getInRecords ( ) const

inline

Returns: collection of in-records

Definition at line 94 of file pit-entry.hpp.

Referenced by nfd::fw::findDuplicateNonce(), ns3::ndn::L3RateTracer::SatisfiedInterests(), and ns3::ndn::L3RateTracer::TimedOutInterests().

◆ hasInRecords()

bool nfd::pit::Entry::hasInRecords ( ) const

inline

Return values

true	There is at least one in-record. This implies some downstream is waiting for Data or Nack.
false	There is no in-record. This implies the entry is new or has been satisfied or Nacked.

Definition at line 105 of file pit-entry.hpp.

◆ in_begin() [1/2]

InRecordCollection::iterator nfd::pit::Entry::in_begin ( )

inline

Definition at line 111 of file pit-entry.hpp.

◆ in_begin() [2/2]

InRecordCollection::const_iterator nfd::pit::Entry::in_begin ( ) const

inline

Definition at line 117 of file pit-entry.hpp.

◆ in_end() [1/2]

InRecordCollection::iterator nfd::pit::Entry::in_end ( )

inline

Definition at line 123 of file pit-entry.hpp.

◆ in_end() [2/2]

InRecordCollection::const_iterator nfd::pit::Entry::in_end ( ) const

inline

Definition at line 129 of file pit-entry.hpp.

References Face.

◆ getInRecord()

InRecordCollection::iterator nfd::pit::Entry::getInRecord ( const Face & face )

get the in-record for face

Returns: an iterator to the in-record, or in_end() if it does not exist

Definition at line 52 of file pit-entry.cpp.

◆ insertOrUpdateInRecord()

InRecordCollection::iterator nfd::pit::Entry::insertOrUpdateInRecord	(	Face &	face,
		const Interest &	interest
	)

insert or update an in-record

Returns: an iterator to the new or updated in-record

Definition at line 59 of file pit-entry.cpp.

References canMatch().

◆ deleteInRecord()

void nfd::pit::Entry::deleteInRecord ( const Face & face )

delete the in-record for face if it exists

Definition at line 75 of file pit-entry.cpp.

Referenced by nfd::pit::Pit::deleteInOutRecords().

◆ clearInRecords()

void nfd::pit::Entry::clearInRecords ( )

delete all in-records

Definition at line 85 of file pit-entry.cpp.

◆ getOutRecords()

const OutRecordCollection& nfd::pit::Entry::getOutRecords ( ) const

inline

Returns: collection of in-records

Definition at line 160 of file pit-entry.hpp.

Referenced by nfd::fw::findDuplicateNonce(), nfd::Forwarder::onNewNextHop(), ns3::ndn::L3RateTracer::SatisfiedInterests(), and ns3::ndn::L3RateTracer::TimedOutInterests().

◆ hasOutRecords()

bool nfd::pit::Entry::hasOutRecords ( ) const

inline

Return values

true	There is at least one out-record. This implies the Interest has been forwarded to some upstream, and they haven't returned Data, but may have returned Nacks.
false	There is no out-record. This implies the Interest has not been forwarded.

Definition at line 172 of file pit-entry.hpp.

◆ out_begin() [1/2]

OutRecordCollection::iterator nfd::pit::Entry::out_begin ( )

inline

Definition at line 178 of file pit-entry.hpp.

Referenced by nfd::fw::getLastOutgoing(), and nfd::fw::hasPendingOutRecords().

◆ out_begin() [2/2]

OutRecordCollection::const_iterator nfd::pit::Entry::out_begin ( ) const

inline

Definition at line 184 of file pit-entry.hpp.

◆ out_end() [1/2]

OutRecordCollection::iterator nfd::pit::Entry::out_end ( )

inline

Definition at line 190 of file pit-entry.hpp.

Referenced by nfd::fw::RetxSuppressionExponential::decidePerUpstream(), nfd::fw::getLastOutgoing(), and nfd::fw::hasPendingOutRecords().

◆ out_end() [2/2]

OutRecordCollection::const_iterator nfd::pit::Entry::out_end ( ) const

inline

Definition at line 196 of file pit-entry.hpp.

References Face.

◆ getOutRecord()

OutRecordCollection::iterator nfd::pit::Entry::getOutRecord ( const Face & face )

get the out-record for face

Returns: an iterator to the out-record, or out_end() if it does not exist

Definition at line 91 of file pit-entry.cpp.

Referenced by nfd::fw::RetxSuppressionExponential::decidePerUpstream(), and nfd::Forwarder::onNewNextHop().

◆ insertOrUpdateOutRecord()

OutRecordCollection::iterator nfd::pit::Entry::insertOrUpdateOutRecord	(	Face &	face,
		const Interest &	interest
	)

insert or update an out-record

Returns: an iterator to the new or updated out-record

Definition at line 98 of file pit-entry.cpp.

References canMatch().

◆ deleteOutRecord()

void nfd::pit::Entry::deleteOutRecord ( const Face & face )

delete the out-record for face if it exists

Definition at line 114 of file pit-entry.cpp.

Referenced by nfd::pit::Pit::deleteInOutRecords().

Friends And Related Function Documentation

◆ name_tree::Entry

friend class name_tree::Entry

friend

Definition at line 241 of file pit-entry.hpp.

Member Data Documentation

◆ expiryTimer

scheduler::EventId nfd::pit::Entry::expiryTimer

Expiry timer.

This timer is used in forwarding pipelines to delete the entry

Definition at line 223 of file pit-entry.hpp.

◆ isSatisfied

bool nfd::pit::Entry::isSatisfied = false

Indicates whether this PIT entry is satisfied.

Definition at line 227 of file pit-entry.hpp.

Referenced by nfd::Forwarder::onNewNextHop().

◆ dataFreshnessPeriod

time::milliseconds nfd::pit::Entry::dataFreshnessPeriod = 0_ms

Data freshness period.

Note: This field is meaningful only if isSatisfied is true

Definition at line 232 of file pit-entry.hpp.

Referenced by nfd::Forwarder::onNewNextHop().

The documentation for this class was generated from the following files:

ndnSIM/NFD/daemon/table/pit-entry.hpp
ndnSIM/NFD/daemon/table/pit-entry.cpp
