NS-3 based Named Data Networking (NDN) simulator
ndnSIM 2.5: NDN, CCN, CCNx, content centric networks
API Documentation
nfd::FaceTable Class Reference

container of all faces More...

#include <face-table.hpp>

Inheritance diagram for nfd::FaceTable:

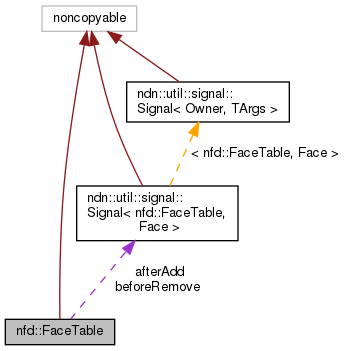

Collaboration diagram for nfd::FaceTable:

Public Types

using FaceMap = std::map< FaceId, shared_ptr< Face > >

using ForwardRange = boost::indirected_range< const boost::select_second_const_range< FaceMap > >

using const_iterator = boost::range_iterator< ForwardRange >::type
 ForwardIterator for Face&. More...


Public Member Functions

 FaceTable ()

void add (shared_ptr< Face > face)
 add a face More...

void addReserved (shared_ptr< Face > face, FaceId faceId)
 add a special face with a reserved FaceId More...

Faceget (FaceId id) const
 get face by FaceId More...

size_t size () const

const_iterator begin () const

const_iterator end () const


Public Attributes

signal::Signal< FaceTable, FaceafterAdd
 Fires immediately after a face is added. More...

signal::Signal< FaceTable, FacebeforeRemove
 Fires immediately before a face is removed. More...


Detailed Description

container of all faces

Definition at line 38 of file face-table.hpp.

Member Typedef Documentation

◆ FaceMap

using nfd::FaceTable::FaceMap = std::map<FaceId, shared_ptr<Face> >

Definition at line 69 of file face-table.hpp.

◆ ForwardRange

using nfd::FaceTable::ForwardRange = boost::indirected_range<const boost::select_second_const_range<FaceMap> >

Definition at line 70 of file face-table.hpp.

◆ const_iterator

using nfd::FaceTable::const_iterator = boost::range_iterator<ForwardRange>::type

ForwardIterator for Face&.

Definition at line 74 of file face-table.hpp.

Constructor & Destructor Documentation

◆ FaceTable()

nfd::FaceTable::FaceTable ( )

Definition at line 39 of file face-table.cpp.

References Face.

Member Function Documentation

◆ add()

void nfd::FaceTable::add ( shared_ptr< Face face)

add a face

FaceTable obtains shared ownership of the face. The channel or protocol factory that creates the face may retain ownership.

Definition at line 58 of file face-table.cpp.

References nfd::face::FACEID_RESERVED_MAX, nfd::face::INVALID_FACEID, nonstd::optional_lite::std11::move(), and NFD_LOG_WARN.

Referenced by nfd::face::FaceSystem::FaceSystem(), and nfd::makeCreateFaceResponse().

◆ addReserved()

void nfd::FaceTable::addReserved ( shared_ptr< Face face,
FaceId  faceId
)

◆ get()

Face * nfd::FaceTable::get ( FaceId  id) const

get face by FaceId

Returns
a face if found, nullptr if not found; face->shared_from_this() can be used if shared_ptr<Face> is desired

Definition at line 45 of file face-table.cpp.

Referenced by nfd::FibManager::FibManager(), nfd::fw::Strategy::getFace(), nfd::Forwarder::onContentStoreMiss(), and nfd::updateLinkServiceOptions().

◆ size()

size_t nfd::FaceTable::size ( ) const
Returns
count of faces

Definition at line 52 of file face-table.cpp.

◆ begin()

FaceTable::const_iterator nfd::FaceTable::begin ( ) const

Definition at line 121 of file face-table.cpp.

◆ end()

FaceTable::const_iterator nfd::FaceTable::end ( ) const

Definition at line 127 of file face-table.cpp.

Member Data Documentation

◆ afterAdd

signal::Signal<FaceTable, Face> nfd::FaceTable::afterAdd

Fires immediately after a face is added.

Definition at line 85 of file face-table.hpp.

Referenced by addReserved(), nfd::FaceManager::FaceManager(), and nfd::Forwarder::Forwarder().

◆ beforeRemove

signal::Signal<FaceTable, Face> nfd::FaceTable::beforeRemove

Fires immediately before a face is removed.

When this signal is emitted, the face is still in FaceTable and has a valid FaceId.

Definition at line 91 of file face-table.hpp.

Referenced by addReserved(), nfd::FaceManager::FaceManager(), and nfd::Forwarder::Forwarder().


The documentation for this class was generated from the following files:
