nfd::face::UnixStreamFactory Class Referencefinal

Protocol factory for stream-oriented Unix sockets. More...

#include <unix-stream-factory.hpp>

Inheritance diagram for nfd::face::UnixStreamFactory:

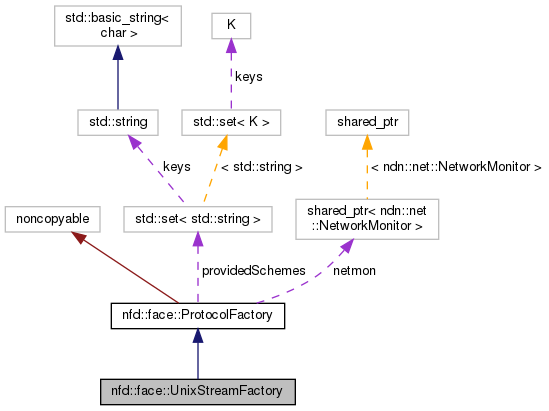

Collaboration diagram for nfd::face::UnixStreamFactory:

Public Member Functions

shared_ptr< UnixStreamChannelcreateChannel (const std::string &unixSocketPath)
 Create stream-oriented Unix channel using specified socket path. More...

- Public Member Functions inherited from nfd::face::ProtocolFactory
 ProtocolFactory (const CtorParams &params)

virtual ~ProtocolFactory ()=0

const std::set< std::string > & getProvidedSchemes () const
 Get FaceUri schemes accepted by this protocol factory. More...

void processConfig (OptionalConfigSection configSection, FaceSystem::ConfigContext &context)
 Process face_system subsection that corresponds to this protocol factory id. More...

void createFace (const CreateFaceRequest &req, const FaceCreatedCallback &onCreated, const FaceCreationFailedCallback &onFailure)
 Create a unicast face. More...

shared_ptr< FacecreateNetdevBoundFace (const FaceUri &remote, const shared_ptr< const ndn::net::NetworkInterface > &netdev)
 Create a netdev-bound face. More...

std::vector< shared_ptr< const Channel > > getChannels () const
 Get list of open channels (listening + non-listening) More...


Static Public Member Functions

static const std::string & getId () noexcept

- Static Public Member Functions inherited from nfd::face::ProtocolFactory
template<typename PF >
static void registerType (const std::string &id=PF::getId())
 Register a protocol factory type. More...

static unique_ptr< ProtocolFactorycreate (const std::string &id, const CtorParams &params)
 Create a protocol factory instance. More...

static std::set< std::string > listRegistered ()
 Get all registered protocol factory ids. More...

static const std::string & getId () noexcept
 Get id for this protocol factory. More...


Additional Inherited Members

- Public Types inherited from nfd::face::ProtocolFactory
using CtorParams = ProtocolFactoryCtorParams

- Static Protected Member Functions inherited from nfd::face::ProtocolFactory
template<typename ChannelMap >
static std::vector< shared_ptr< const Channel > > getChannelsFromMap (const ChannelMap &channelMap)

- Protected Attributes inherited from nfd::face::ProtocolFactory
std::set< std::string > providedSchemes
 FaceUri schemes provided by this protocol factory. More...

FaceCreatedCallback addFace
 callback when a new face is created More...

shared_ptr< ndn::net::NetworkMonitornetmon
 NetworkMonitor for listing available network interfaces and monitoring their changes. More...


Detailed Description

Protocol factory for stream-oriented Unix sockets.

Definition at line 37 of file unix-stream-factory.hpp.

Member Function Documentation

◆ getId()

◆ createChannel()

shared_ptr< UnixStreamChannel > nfd::face::UnixStreamFactory::createChannel ( const std::string &  unixSocketPath)

Create stream-oriented Unix channel using specified socket path.

If this method is called twice with the same path, only one channel will be created. The second call will just retrieve the existing channel.

Returns
always a valid pointer to a UnixStreamChannel object, an exception will be thrown if the channel cannot be created.

Definition at line 91 of file unix-stream-factory.cpp.

References nfd::face::ProtocolFactory::getChannelsFromMap().

Referenced by getId().


The documentation for this class was generated from the following files:
