Provides support for an underlying protocol. More...

#include <protocol-factory.hpp>

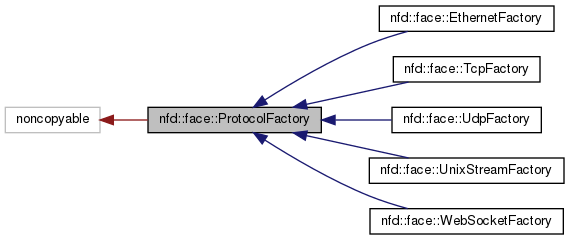

Inheritance diagram for nfd::face::ProtocolFactory:

[legend]

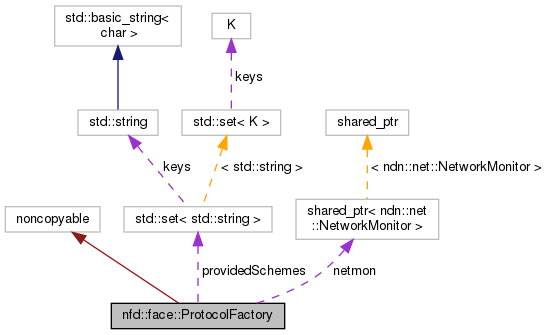

Collaboration diagram for nfd::face::ProtocolFactory:

Classes
struct	CreateFaceRequest
	Encapsulates a face creation request and all its parameters. More...

class	Error
	Base class for all exceptions thrown by ProtocolFactory subclasses. More...

Public Types
using	CtorParams = ProtocolFactoryCtorParams

Public Member Functions
	ProtocolFactory (const CtorParams &params)

virtual	~ProtocolFactory ()=0

const std::set< std::string > &	getProvidedSchemes () const
	Get FaceUri schemes accepted by this protocol factory. More...

void	processConfig (OptionalConfigSection configSection, FaceSystem::ConfigContext &context)
	Process face_system subsection that corresponds to this protocol factory id. More...

void	createFace (const CreateFaceRequest &req, const FaceCreatedCallback &onCreated, const FaceCreationFailedCallback &onFailure)
	Create a unicast face. More...

shared_ptr< Face >	createNetdevBoundFace (const FaceUri &remote, const shared_ptr< const ndn::net::NetworkInterface > &netdev)
	Create a netdev-bound face. More...

std::vector< shared_ptr< const Channel > >	getChannels () const
	Get list of open channels (listening + non-listening) More...

Static Public Member Functions
template<typename PF >
static void	registerType (const std::string &id=PF::getId())
	Register a protocol factory type. More...

static unique_ptr< ProtocolFactory >	create (const std::string &id, const CtorParams &params)
	Create a protocol factory instance. More...

static std::set< std::string >	listRegistered ()
	Get all registered protocol factory ids. More...

static const std::string &	getId () noexcept
	Get id for this protocol factory. More...

Static Protected Member Functions
template<typename ChannelMap >
static std::vector< shared_ptr< const Channel > >	getChannelsFromMap (const ChannelMap &channelMap)

Protected Attributes
std::set< std::string >	providedSchemes
	FaceUri schemes provided by this protocol factory. More...

FaceCreatedCallback	addFace
	callback when a new face is created More...

shared_ptr< ndn::net::NetworkMonitor >	netmon
	NetworkMonitor for listing available network interfaces and monitoring their changes. More...

Detailed Description

Provides support for an underlying protocol.

See also: FaceSystem

A protocol factory provides support for an underlying protocol and owns Channel objects. It can process a subsection of face_system config section and create channels and multicast faces accordingly.

Definition at line 59 of file protocol-factory.hpp.

Member Typedef Documentation

◆ CtorParams

using nfd::face::ProtocolFactory::CtorParams = ProtocolFactoryCtorParams

Definition at line 62 of file protocol-factory.hpp.

Constructor & Destructor Documentation

◆ ProtocolFactory()

nfd::face::ProtocolFactory::ProtocolFactory ( const CtorParams & params )

explicit

Definition at line 62 of file protocol-factory.cpp.

References addFace, netmon, and ~ProtocolFactory().

◆ ~ProtocolFactory()

nfd::face::ProtocolFactory::~ProtocolFactory ( )

pure virtualdefault

Referenced by ProtocolFactory().

Member Function Documentation

◆ registerType()

template<typename PF >

static void nfd::face::ProtocolFactory::registerType ( const std::string & id = PF::getId() )

inlinestatic

Register a protocol factory type.

Template Parameters

PF	subclass of ProtocolFactory

Parameters

id	factory identifier

Definition at line 70 of file protocol-factory.hpp.

◆ create()

unique_ptr< ProtocolFactory > nfd::face::ProtocolFactory::create	(	const std::string &	id,
		const CtorParams &	params
	)

static

Create a protocol factory instance.

Return values

nullptr if a factory with the given id is not registered

Definition at line 42 of file protocol-factory.cpp.

References websocketpp::http::status_code::found.

Referenced by nfd::face::FaceSystem::FaceSystem().

◆ listRegistered()

std::set< std::string > nfd::face::ProtocolFactory::listRegistered ( )

static

Get all registered protocol factory ids.

Definition at line 54 of file protocol-factory.cpp.

Referenced by nfd::face::FaceSystem::FaceSystem().

◆ getId()

static const std::string& nfd::face::ProtocolFactory::getId ( )

staticnoexcept

Get id for this protocol factory.

face_system.factory-id config section is processed by the protocol factory.

◆ getProvidedSchemes()

const std::set<std::string>& nfd::face::ProtocolFactory::getProvidedSchemes ( ) const

inline

Get FaceUri schemes accepted by this protocol factory.

Definition at line 115 of file protocol-factory.hpp.

Referenced by nfd::face::FaceSystem::setConfigFile().

◆ processConfig()

void nfd::face::ProtocolFactory::processConfig	(	OptionalConfigSection	configSection,
		FaceSystem::ConfigContext &	context
	)

Process face_system subsection that corresponds to this protocol factory id.

Parameters

configSection	the configuration section or boost::none to indicate it is omitted
context	provides access to data structures and contextual information

Exceptions

ConfigFile::Error invalid configuration

Definition at line 73 of file protocol-factory.cpp.

Referenced by nfd::face::FaceSystem::setConfigFile().

◆ createFace()

void nfd::face::ProtocolFactory::createFace	(	const CreateFaceRequest &	req,
		const FaceCreatedCallback &	onCreated,
		const FaceCreationFailedCallback &	onFailure
	)

Create a unicast face.

Parameters

req	request object containing the face creation parameters
onCreated	callback if face creation succeeds or face already exists; the settings of an existing face are not updated if they differ from the request
onFailure	callback if face creation fails

Definition at line 86 of file protocol-factory.cpp.

References ndn::FaceUri::canCanonize(), ndn::FaceUri::getScheme(), ndn::FaceUri::isCanonical(), nfd::face::ProtocolFactory::CreateFaceRequest::localUri, and nfd::face::ProtocolFactory::CreateFaceRequest::remoteUri.

Referenced by nfd::FaceManager::FaceManager().

◆ createNetdevBoundFace()

shared_ptr< Face > nfd::face::ProtocolFactory::createNetdevBoundFace	(	const FaceUri &	remote,
		const shared_ptr< const ndn::net::NetworkInterface > &	netdev
	)

Create a netdev-bound face.

Parameters

remote	remote FaceUri, must be canonical
netdev	local network interface

Returns: new face

Exceptions

Error cannot create a face using specified arguments

Note: The caller must ensure there is no existing netdev-bound face with same remote FaceUri on the same local network interface.

Definition at line 106 of file protocol-factory.cpp.

References ndn::FaceUri::isCanonical(), and NDN_THROW.

◆ getChannels()

std::vector< shared_ptr< const Channel > > nfd::face::ProtocolFactory::getChannels ( ) const

Get list of open channels (listening + non-listening)

Definition at line 121 of file protocol-factory.cpp.

◆ getChannelsFromMap()

template<typename ChannelMap >

static std::vector<shared_ptr<const Channel> > nfd::face::ProtocolFactory::getChannelsFromMap ( const ChannelMap & channelMap )

inlinestaticprotected

Definition at line 171 of file protocol-factory.hpp.

Referenced by nfd::face::UnixStreamFactory::createChannel(), nfd::face::EthernetFactory::createChannel(), nfd::face::TcpFactory::createChannel(), nfd::face::WebSocketFactory::createChannel(), and nfd::face::UdpFactory::createChannel().

Member Data Documentation

◆ providedSchemes

std::set<std::string> nfd::face::ProtocolFactory::providedSchemes

protected

FaceUri schemes provided by this protocol factory.

Definition at line 238 of file protocol-factory.hpp.

Referenced by nfd::face::EthernetFactory::createMulticastFace(), nfd::face::TcpFactory::getId(), and nfd::face::UdpFactory::UdpFactory().

◆ addFace

FaceCreatedCallback nfd::face::ProtocolFactory::addFace

protected

callback when a new face is created

Definition at line 239 of file protocol-factory.hpp.

Referenced by nfd::face::EthernetFactory::createMulticastFace(), nfd::face::WebSocketFactory::getId(), nfd::face::UnixStreamFactory::getId(), nfd::face::TcpFactory::getId(), nfd::face::pickAddress(), ProtocolFactory(), and nfd::face::UdpFactory::UdpFactory().

◆ netmon

shared_ptr<ndn::net::NetworkMonitor> nfd::face::ProtocolFactory::netmon

protected

NetworkMonitor for listing available network interfaces and monitoring their changes.

ProtocolFactory subclass should check the NetworkMonitor has sufficient capabilities prior to usage.

Definition at line 246 of file protocol-factory.hpp.

Referenced by nfd::face::EthernetFactory::createMulticastFace(), nfd::face::EthernetFactory::EthernetFactory(), nfd::face::pickAddress(), ProtocolFactory(), and nfd::face::UdpFactory::UdpFactory().

The documentation for this class was generated from the following files:

ndnSIM/NFD/daemon/face/protocol-factory.hpp
ndnSIM/NFD/daemon/face/protocol-factory.cpp
