A Transport that communicates on a UDP multicast group. More...

#include <multicast-udp-transport.hpp>

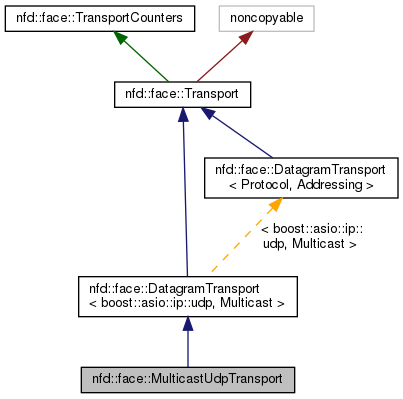

Inheritance diagram for nfd::face::MulticastUdpTransport:

[legend]

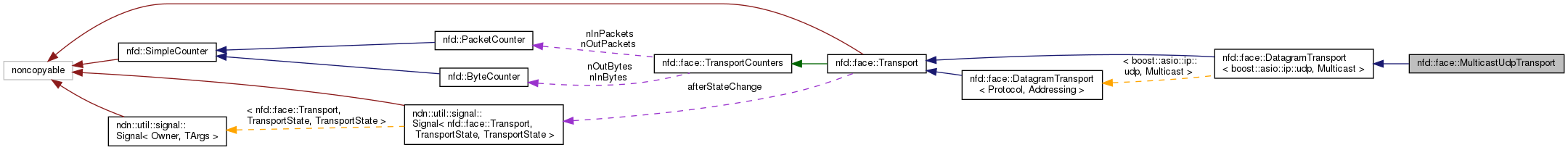

Collaboration diagram for nfd::face::MulticastUdpTransport:

[legend]

Classes
class	Error

Public Member Functions
	MulticastUdpTransport (const protocol::endpoint &multicastGroup, protocol::socket &&recvSocket, protocol::socket &&sendSocket, ndn::nfd::LinkType linkType)
	Creates a UDP-based transport for multicast communication. More...

ssize_t	getSendQueueLength () final

Public Member Functions inherited from nfd::face::DatagramTransport< boost::asio::ip::udp, Multicast >
	DatagramTransport (typename protocol::socket &&socket)
	Construct datagram transport. More...

ssize_t	getSendQueueLength () override

void	receiveDatagram (span< const uint8_t > buffer, const boost::system::error_code &error)
	Receive datagram, translate buffer into packet, deliver to parent class. More...

Public Member Functions inherited from nfd::face::Transport
	Transport ()
	Default constructor. More...

virtual	~Transport ()

void	setFaceAndLinkService (Face &face, LinkService &service)
	set Face and LinkService for Transport More...

const Face *	getFace () const

const LinkService *	getLinkService () const

LinkService *	getLinkService ()

virtual const Counters &	getCounters () const

void	close ()
	Request the transport to be closed. More...

void	send (const Block &packet)
	Send a link-layer packet. More...

FaceUri	getLocalUri () const

FaceUri	getRemoteUri () const

ndn::nfd::FaceScope	getScope () const

ndn::nfd::FacePersistency	getPersistency () const

bool	canChangePersistencyTo (ndn::nfd::FacePersistency newPersistency) const
	check whether the face persistency can be changed to `newPersistency` More...

void	setPersistency (ndn::nfd::FacePersistency newPersistency)
	changes face persistency setting More...

ndn::nfd::LinkType	getLinkType () const

ssize_t	getMtu () const

ssize_t	getSendQueueCapacity () const

TransportState	getState () const

time::steady_clock::TimePoint	getExpirationTime () const

Static Public Member Functions
static void	openRxSocket (protocol::socket &sock, const protocol::endpoint &multicastGroup, const boost::asio::ip::address &localAddress, const shared_ptr< const ndn::net::NetworkInterface > &netif=nullptr)

static void	openTxSocket (protocol::socket &sock, const protocol::endpoint &localEndpoint, const shared_ptr< const ndn::net::NetworkInterface > &netif=nullptr, bool enableLoopback=false)

Additional Inherited Members
Public Types inherited from nfd::face::DatagramTransport< boost::asio::ip::udp, Multicast >
using	protocol = boost::asio::ip::udp

Public Types inherited from nfd::face::Transport
using	Counters = TransportCounters
	Counters provided by a transport. More...

Public Attributes inherited from nfd::face::Transport
signal::Signal< Transport, TransportState, TransportState >	afterStateChange
	signals when transport state changes More...

Protected Member Functions inherited from nfd::face::DatagramTransport< boost::asio::ip::udp, Multicast >
void	doClose () override
	performs Transport specific operations to close the transport More...

void	doSend (const Block &packet) override
	performs Transport specific operations to send a packet More...

void	handleSend (const boost::system::error_code &error, size_t nBytesSent)

void	handleReceive (const boost::system::error_code &error, size_t nBytesReceived)

void	processErrorCode (const boost::system::error_code &error)

bool	hasRecentlyReceived () const

void	resetRecentlyReceived ()

EndpointId	makeEndpointId (const protocol::endpoint &ep)

EndpointId	makeEndpointId (const protocol::endpoint &ep)

	NFD_LOG_MEMBER_DECL ()

Protected Member Functions inherited from nfd::face::Transport
void	receive (const Block &packet, const EndpointId &endpoint=0)
	Pass a received link-layer packet to the upper layer for further processing. More...

void	setLocalUri (const FaceUri &uri)

void	setRemoteUri (const FaceUri &uri)

void	setScope (ndn::nfd::FaceScope scope)

void	setLinkType (ndn::nfd::LinkType linkType)

void	setMtu (ssize_t mtu)

void	setSendQueueCapacity (ssize_t sendQueueCapacity)

void	setState (TransportState newState)
	set transport state More...

void	setExpirationTime (const time::steady_clock::TimePoint &expirationTime)

virtual bool	canChangePersistencyToImpl (ndn::nfd::FacePersistency newPersistency) const
	invoked by canChangePersistencyTo to perform the check More...

virtual void	afterChangePersistency (ndn::nfd::FacePersistency oldPersistency)
	invoked after the persistency has been changed More...

Static Protected Member Functions inherited from nfd::face::DatagramTransport< boost::asio::ip::udp, Multicast >
static EndpointId	makeEndpointId (const typename protocol::endpoint &ep)

Protected Attributes inherited from nfd::face::DatagramTransport< boost::asio::ip::udp, Multicast >
protocol::socket	m_socket

protocol::endpoint	m_sender

Protected Attributes inherited from nfd::face::TransportCounters
PacketCounter	nInPackets
	count of incoming packets More...

PacketCounter	nOutPackets
	count of outgoing packets More...

ByteCounter	nInBytes
	total incoming bytes More...

ByteCounter	nOutBytes
	total outgoing bytes More...

Detailed Description

A Transport that communicates on a UDP multicast group.

Definition at line 49 of file multicast-udp-transport.hpp.

Constructor & Destructor Documentation

◆ MulticastUdpTransport()

nfd::face::MulticastUdpTransport::MulticastUdpTransport	(	const protocol::endpoint &	multicastGroup,
		protocol::socket &&	recvSocket,
		protocol::socket &&	sendSocket,
		ndn::nfd::LinkType	linkType
	)

Creates a UDP-based transport for multicast communication.

Parameters

multicastGroup	multicast group
recvSocket	socket used to receive multicast packets
sendSocket	socket used to send to the multicast group
linkType	either `ndn::nfd::LINK_TYPE_MULTI_ACCESS` or `ndn::nfd::LINK_TYPE_AD_HOC`

Definition at line 45 of file multicast-udp-transport.cpp.

References nfd::udp::computeMtu(), ndn::nfd::FACE_PERSISTENCY_PERMANENT, ndn::nfd::FACE_SCOPE_NON_LOCAL, NFD_LOG_FACE_DEBUG, NFD_LOG_FACE_WARN, nfd::face::QUEUE_ERROR, nfd::face::Transport::setLinkType(), nfd::face::Transport::setLocalUri(), nfd::face::Transport::setMtu(), nfd::face::Transport::setPersistency(), nfd::face::Transport::setRemoteUri(), nfd::face::Transport::setScope(), and nfd::face::Transport::setSendQueueCapacity().

Member Function Documentation

◆ getSendQueueLength()

ssize_t nfd::face::MulticastUdpTransport::getSendQueueLength ( )

finalvirtual

Returns: current send queue length of the transport (in octets)

Return values

QUEUE_UNSUPPORTED	transport does not support queue length retrieval
QUEUE_ERROR	transport was unable to retrieve the queue length

Reimplemented from nfd::face::Transport.

Definition at line 75 of file multicast-udp-transport.cpp.

References nfd::face::DatagramTransport< Protocol, Addressing >::doClose(), nfd::face::getTxQueueLength(), nfd::face::DatagramTransport< boost::asio::ip::udp, Multicast >::handleSend(), NFD_LOG_FACE_TRACE, NFD_LOG_FACE_WARN, and nfd::face::QUEUE_ERROR.

◆ openRxSocket()

void nfd::face::MulticastUdpTransport::openRxSocket	(	protocol::socket &	sock,
		const protocol::endpoint &	multicastGroup,
		const boost::asio::ip::address &	localAddress,
		const shared_ptr< const ndn::net::NetworkInterface > &	netif = `nullptr`
	)

static

Definition at line 134 of file multicast-udp-transport.cpp.

References nfd::face::bindToDevice().

Referenced by nfd::face::UdpFactory::createMulticastFace().

◆ openTxSocket()

void nfd::face::MulticastUdpTransport::openTxSocket	(	protocol::socket &	sock,
		const protocol::endpoint &	localEndpoint,
		const shared_ptr< const ndn::net::NetworkInterface > &	netif = `nullptr`,
		bool	enableLoopback = `false`
	)

static

Definition at line 169 of file multicast-udp-transport.cpp.

Referenced by nfd::face::UdpFactory::createMulticastFace().

The documentation for this class was generated from the following files:

ndnSIM/NFD/daemon/face/multicast-udp-transport.hpp
ndnSIM/NFD/daemon/face/multicast-udp-transport.cpp
