Implements Transport for datagram-based protocols. More...

#include <datagram-transport.hpp>

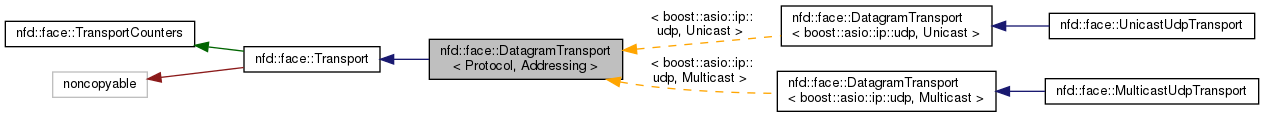

Inheritance diagram for nfd::face::DatagramTransport< Protocol, Addressing >:

[legend]

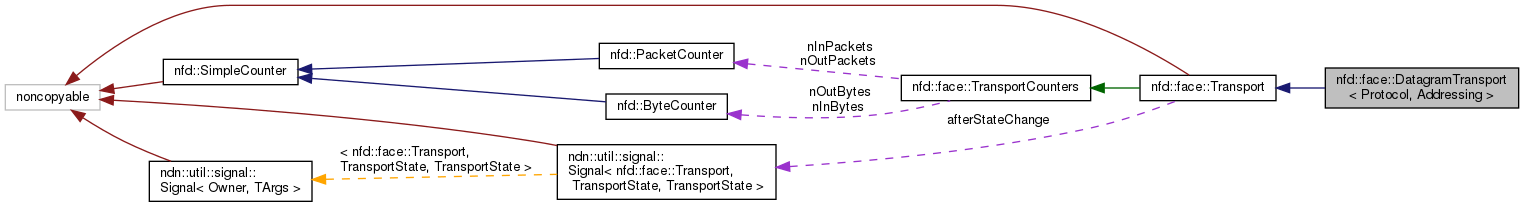

Collaboration diagram for nfd::face::DatagramTransport< Protocol, Addressing >:

[legend]

Public Types
using	protocol = Protocol

Public Types inherited from nfd::face::Transport
using	Counters = TransportCounters
	Counters provided by a transport. More...

Public Member Functions
	DatagramTransport (typename protocol::socket &&socket)
	Construct datagram transport. More...

ssize_t	getSendQueueLength () override

void	receiveDatagram (span< const uint8_t > buffer, const boost::system::error_code &error)
	Receive datagram, translate buffer into packet, deliver to parent class. More...

Public Member Functions inherited from nfd::face::Transport
	Transport ()
	Default constructor. More...

virtual	~Transport ()

void	setFaceAndLinkService (Face &face, LinkService &service)
	set Face and LinkService for Transport More...

const Face *	getFace () const

const LinkService *	getLinkService () const

LinkService *	getLinkService ()

virtual const Counters &	getCounters () const

void	close ()
	Request the transport to be closed. More...

void	send (const Block &packet)
	Send a link-layer packet. More...

FaceUri	getLocalUri () const

FaceUri	getRemoteUri () const

ndn::nfd::FaceScope	getScope () const

ndn::nfd::FacePersistency	getPersistency () const

bool	canChangePersistencyTo (ndn::nfd::FacePersistency newPersistency) const
	check whether the face persistency can be changed to `newPersistency` More...

void	setPersistency (ndn::nfd::FacePersistency newPersistency)
	changes face persistency setting More...

ndn::nfd::LinkType	getLinkType () const

ssize_t	getMtu () const

ssize_t	getSendQueueCapacity () const

TransportState	getState () const

time::steady_clock::TimePoint	getExpirationTime () const

Protected Member Functions
void	doClose () override
	performs Transport specific operations to close the transport More...

void	doSend (const Block &packet) override
	performs Transport specific operations to send a packet More...

void	handleSend (const boost::system::error_code &error, size_t nBytesSent)

void	handleReceive (const boost::system::error_code &error, size_t nBytesReceived)

void	processErrorCode (const boost::system::error_code &error)

bool	hasRecentlyReceived () const

void	resetRecentlyReceived ()

	NFD_LOG_MEMBER_DECL ()

template<>
EndpointId	makeEndpointId (const protocol::endpoint &ep)

template<>
EndpointId	makeEndpointId (const protocol::endpoint &ep)

Protected Member Functions inherited from nfd::face::Transport
void	receive (const Block &packet, const EndpointId &endpoint=0)
	Pass a received link-layer packet to the upper layer for further processing. More...

void	setLocalUri (const FaceUri &uri)

void	setRemoteUri (const FaceUri &uri)

void	setScope (ndn::nfd::FaceScope scope)

void	setLinkType (ndn::nfd::LinkType linkType)

void	setMtu (ssize_t mtu)

void	setSendQueueCapacity (ssize_t sendQueueCapacity)

void	setState (TransportState newState)
	set transport state More...

void	setExpirationTime (const time::steady_clock::TimePoint &expirationTime)

virtual bool	canChangePersistencyToImpl (ndn::nfd::FacePersistency newPersistency) const
	invoked by canChangePersistencyTo to perform the check More...

virtual void	afterChangePersistency (ndn::nfd::FacePersistency oldPersistency)
	invoked after the persistency has been changed More...

Static Protected Member Functions
static EndpointId	makeEndpointId (const typename protocol::endpoint &ep)

Protected Attributes
protocol::socket	m_socket

protocol::endpoint	m_sender

Protected Attributes inherited from nfd::face::TransportCounters
PacketCounter	nInPackets
	count of incoming packets More...

PacketCounter	nOutPackets
	count of outgoing packets More...

ByteCounter	nInBytes
	total incoming bytes More...

ByteCounter	nOutBytes
	total outgoing bytes More...

Additional Inherited Members
Public Attributes inherited from nfd::face::Transport
signal::Signal< Transport, TransportState, TransportState >	afterStateChange
	signals when transport state changes More...

Detailed Description

template<class Protocol, class Addressing = Unicast>
class nfd::face::DatagramTransport< Protocol, Addressing >

Implements Transport for datagram-based protocols.

Template Parameters

Protocol a datagram-based protocol in Boost.Asio

Definition at line 46 of file datagram-transport.hpp.

Member Typedef Documentation

◆ protocol

template<class Protocol, class Addressing = Unicast>

using nfd::face::DatagramTransport< Protocol, Addressing >::protocol = Protocol

Definition at line 49 of file datagram-transport.hpp.

Constructor & Destructor Documentation

◆ DatagramTransport()

template<class Protocol, class Addressing = Unicast>

nfd::face::DatagramTransport< T, U >::DatagramTransport ( typename protocol::socket && socket )

explicit

Construct datagram transport.

Parameters

socket Protocol-specific socket for the created transport

Definition at line 105 of file datagram-transport.hpp.

Member Function Documentation

◆ getSendQueueLength()

template<class T , class U >

ssize_t nfd::face::DatagramTransport< T, U >::getSendQueueLength ( )

overridevirtual

Returns: current send queue length of the transport (in octets)

Return values

QUEUE_UNSUPPORTED	transport does not support queue length retrieval
QUEUE_ERROR	transport was unable to retrieve the queue length

Reimplemented from nfd::face::Transport.

Definition at line 128 of file datagram-transport.hpp.

◆ receiveDatagram()

template<class T , class U >

void nfd::face::DatagramTransport< T, U >::receiveDatagram	(	span< const uint8_t >	buffer,
		const boost::system::error_code &	error
	)

Receive datagram, translate buffer into packet, deliver to parent class.

Definition at line 173 of file datagram-transport.hpp.

Referenced by nfd::face::UdpChannel::listen().

◆ doClose()

template<class T , class U >

void nfd::face::DatagramTransport< T, U >::doClose ( )

overrideprotectedvirtual

performs Transport specific operations to close the transport

This is invoked once by close() after changing state to CLOSING. It will not be invoked by Transport class if the transport is already CLOSING or CLOSED.

When the cleanup procedure is complete, this method should change state to CLOSED. This transition can happen synchronously or asynchronously.

Implements nfd::face::Transport.

Definition at line 139 of file datagram-transport.hpp.

Referenced by nfd::face::MulticastUdpTransport::getSendQueueLength().

◆ doSend()

template<class T , class U >

void nfd::face::DatagramTransport< T, U >::doSend ( const Block & packet )

overrideprotectedvirtual

performs Transport specific operations to send a packet

Parameters

packet the packet to be sent, can be assumed to be valid and well-formed

Precondition: transport state is either UP or DOWN

Implements nfd::face::Transport.

Definition at line 160 of file datagram-transport.hpp.

◆ handleSend()

template<class T , class U >

void nfd::face::DatagramTransport< T, U >::handleSend	(	const boost::system::error_code &	error,
		size_t	nBytesSent
	)

protected

Definition at line 214 of file datagram-transport.hpp.

◆ handleReceive()

template<class T , class U >

void nfd::face::DatagramTransport< T, U >::handleReceive	(	const boost::system::error_code &	error,
		size_t	nBytesReceived
	)

protected

Definition at line 201 of file datagram-transport.hpp.

◆ processErrorCode()

template<class T , class U >

void nfd::face::DatagramTransport< T, U >::processErrorCode ( const boost::system::error_code & error )

protected

Definition at line 224 of file datagram-transport.hpp.

◆ hasRecentlyReceived()

template<class T , class U >

bool nfd::face::DatagramTransport< T, U >::hasRecentlyReceived ( ) const

protected

Definition at line 248 of file datagram-transport.hpp.

◆ resetRecentlyReceived()

template<class T , class U >

void nfd::face::DatagramTransport< T, U >::resetRecentlyReceived ( )

protected

Definition at line 255 of file datagram-transport.hpp.

◆ makeEndpointId() [1/3]

template<class T , class U >

EndpointId nfd::face::DatagramTransport< T, U >::makeEndpointId ( const typename protocol::endpoint & ep )

staticprotected

Definition at line 262 of file datagram-transport.hpp.

◆ NFD_LOG_MEMBER_DECL()

template<class Protocol, class Addressing = Unicast>

nfd::face::DatagramTransport< Protocol, Addressing >::NFD_LOG_MEMBER_DECL ( )

protected

◆ makeEndpointId() [2/3]

template<>

EndpointId nfd::face::DatagramTransport< boost::asio::ip::udp, Multicast >::makeEndpointId ( const protocol::endpoint & ep )

protected

Definition at line 195 of file multicast-udp-transport.cpp.

◆ makeEndpointId() [3/3]

template<>

EndpointId nfd::face::DatagramTransport< boost::asio::ip::udp, Multicast >::makeEndpointId ( const protocol::endpoint & ep )

protected

Member Data Documentation

◆ m_socket

template<class Protocol, class Addressing = Unicast>

protocol::socket nfd::face::DatagramTransport< Protocol, Addressing >::m_socket

protected

Definition at line 93 of file datagram-transport.hpp.

◆ m_sender

template<class Protocol, class Addressing = Unicast>

protocol::endpoint nfd::face::DatagramTransport< Protocol, Addressing >::m_sender

protected

Definition at line 94 of file datagram-transport.hpp.

The documentation for this class was generated from the following file:

ndnSIM/NFD/daemon/face/datagram-transport.hpp
