ndn::security::v2::ValidationPolicy Class Reference

Abstraction that implements validation policy for Data and Interest packets. More...

#include <validation-policy.hpp>

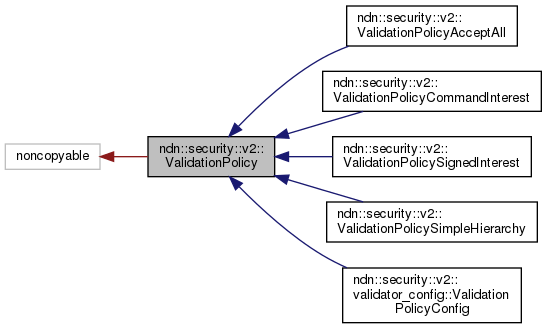

Inheritance diagram for ndn::security::v2::ValidationPolicy:

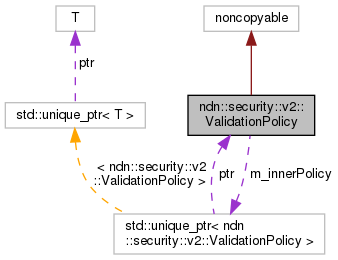

Collaboration diagram for ndn::security::v2::ValidationPolicy:

Public Types
using	ValidationContinuation = std::function< void(const shared_ptr< CertificateRequest > &certRequest, const shared_ptr< ValidationState > &state)>

Public Member Functions
virtual	~ValidationPolicy ()=default
void	setInnerPolicy (unique_ptr< ValidationPolicy > innerPolicy)
	Set inner policy. More...
bool	hasInnerPolicy () const
	Check if inner policy is set. More...
ValidationPolicy &	getInnerPolicy ()
	Return the inner policy. More...
void	setValidator (Validator &validator)
	Set validator to which the policy is associated. More...
virtual void	checkPolicy (const Data &data, const shared_ptr< ValidationState > &state, const ValidationContinuation &continueValidation)=0
	Check data against the policy. More...
virtual void	checkPolicy (const Interest &interest, const shared_ptr< ValidationState > &state, const ValidationContinuation &continueValidation)=0
	Check interest against the policy. More...
virtual void	checkPolicy (const Certificate &certificate, const shared_ptr< ValidationState > &state, const ValidationContinuation &continueValidation)
	Check certificate against the policy. More...

Public Attributes
NDN_CXX_PUBLIC_WITH_TESTS_ELSE_PROTECTED	__pad0__: Validator* m_validator = nullptr
unique_ptr< ValidationPolicy >	m_innerPolicy

Detailed Description

Abstraction that implements validation policy for Data and Interest packets.

Definition at line 37 of file validation-policy.hpp.

Member Typedef Documentation

ValidationContinuation

using ndn::security::v2::ValidationPolicy::ValidationContinuation = std::function<void(const shared_ptr<CertificateRequest>& certRequest, const shared_ptr<ValidationState>& state)>

Definition at line 41 of file validation-policy.hpp.

Constructor & Destructor Documentation

~ValidationPolicy()

virtual ndn::security::v2::ValidationPolicy::~ValidationPolicy ( )

virtualdefault

Member Function Documentation

setInnerPolicy()

void ndn::security::v2::ValidationPolicy::setInnerPolicy

(

unique_ptr< ValidationPolicy >

innerPolicy

)

Set inner policy.

Multiple assignments of the inner policy will create a "chain" of linked policies. The inner policy from the latest invocation of setInnerPolicy will be at the bottom of the policy list.

For example, sequence of this->setInnerPolicy(policy1) and this->setInnerPolicy(policy2), will result in this->m_innerPolicy == policy1, this->m_innerPolicy->m_innerPolicy == policy2', and this->m_innerPolicy->m_innerPolicy->m_innerPolicy == nullptr.

Exceptions

std::invalid_argument

exception, if innerPolicy is nullptr.

Definition at line 30 of file validation-policy.cpp.

References m_innerPolicy, nonstd::optional_lite::std11::move(), and NDN_THROW.

Referenced by ndn::security::v2::ValidationPolicyCommandInterest::ValidationPolicyCommandInterest(), and ndn::security::v2::ValidationPolicySignedInterest::ValidationPolicySignedInterest().

hasInnerPolicy()

bool ndn::security::v2::ValidationPolicy::hasInnerPolicy ( ) const

inline

Check if inner policy is set.

Definition at line 67 of file validation-policy.hpp.

References checkPolicy(), getInnerPolicy(), m_innerPolicy, and setValidator().

Referenced by ndn::security::v2::validator_config::ValidationPolicyConfig::checkPolicy().

getInnerPolicy()

ValidationPolicy & ndn::security::v2::ValidationPolicy::getInnerPolicy

(

)

Return the inner policy.

If the inner policy was not set, behavior is undefined.

Definition at line 49 of file validation-policy.cpp.

References m_innerPolicy.

Referenced by ndn::security::v2::ValidationPolicyCommandInterest::checkPolicy(), ndn::security::v2::ValidationPolicySignedInterest::checkPolicy(), and hasInnerPolicy().

setValidator()

void ndn::security::v2::ValidationPolicy::setValidator

(

Validator &

validator

)

Set validator to which the policy is associated.

Definition at line 55 of file validation-policy.cpp.

References m_innerPolicy.

Referenced by hasInnerPolicy().

checkPolicy() [1/3]

virtual void ndn::security::v2::ValidationPolicy::checkPolicy ( const Data &  data, const shared_ptr< ValidationState > &  state, const ValidationContinuation &  continueValidation  )

pure virtual

Check data against the policy.

Depending on implementation of the policy, this check can be done synchronously or asynchronously.

Semantics of checkPolicy has changed from v1::Validator

• If packet violates policy, the policy should call state->fail with appropriate error code and error description.
• If packet conforms to the policy and no further certificate retrievals are necessary, the policy should call continueValidation(nullptr, state)
• If packet conforms to the policy and a certificate needs to be fetched, the policy should call continueValidation(<appropriate-cert-request-instance>, state)

Implemented in ndn::security::v2::ValidationPolicySignedInterest, ndn::security::v2::ValidationPolicyCommandInterest, ndn::security::v2::validator_config::ValidationPolicyConfig, ndn::security::v2::ValidationPolicyAcceptAll, and ndn::security::v2::ValidationPolicySimpleHierarchy.

Referenced by ndn::security::v2::ValidationPolicyCommandInterest::checkPolicy(), checkPolicy(), ndn::security::v2::ValidationPolicySignedInterest::checkPolicy(), and hasInnerPolicy().

checkPolicy() [2/3]

virtual void ndn::security::v2::ValidationPolicy::checkPolicy ( const Interest &  interest, const shared_ptr< ValidationState > &  state, const ValidationContinuation &  continueValidation  )

pure virtual

Check interest against the policy.

Depending on implementation of the policy, this check can be done synchronously or asynchronously.

Semantics of checkPolicy has changed from v1::Validator

• If packet violates policy, the policy should call state->fail with appropriate error code and error description.
• If packet conforms to the policy and no further certificate retrievals are necessary, the policy should call continueValidation(nullptr, state)
• If packet conforms to the policy and a certificate needs to be fetched, the policy should call continueValidation(<appropriate-cert-request-instance>, state)

Implemented in ndn::security::v2::ValidationPolicySignedInterest, ndn::security::v2::ValidationPolicyCommandInterest, ndn::security::v2::validator_config::ValidationPolicyConfig, ndn::security::v2::ValidationPolicyAcceptAll, and ndn::security::v2::ValidationPolicySimpleHierarchy.

checkPolicy() [3/3]

virtual void ndn::security::v2::ValidationPolicy::checkPolicy ( const Certificate &  certificate, const shared_ptr< ValidationState > &  state, const ValidationContinuation &  continueValidation  )

inlinevirtual

Check certificate against the policy.

Unless overridden by the policy, this check defaults to checkPolicy(const Data&, ...).

Depending on implementation of the policy, this check can be done synchronously or asynchronously.

Semantics of checkPolicy has changed from v1::Validator

• If packet violates policy, the policy should call state->fail with appropriate error code and error description.
• If packet conforms to the policy and no further certificate retrievals are necessary, the policy should call continueValidation(nullptr, state)
• If packet conforms to the policy and a certificate needs to be fetched, the policy should call continueValidation(<appropriate-cert-request-instance>, state)

Definition at line 139 of file validation-policy.hpp.

References checkPolicy(), and NDN_CXX_PUBLIC_WITH_TESTS_ELSE_PROTECTED.

Member Data Documentation

__pad0__

NDN_CXX_PUBLIC_WITH_TESTS_ELSE_PROTECTED ndn::security::v2::ValidationPolicy::__pad0__

Definition at line 146 of file validation-policy.hpp.

m_innerPolicy

unique_ptr<ValidationPolicy> ndn::security::v2::ValidationPolicy::m_innerPolicy

Definition at line 147 of file validation-policy.hpp.

Referenced by getInnerPolicy(), hasInnerPolicy(), setInnerPolicy(), and setValidator().

---

The documentation for this class was generated from the following files:

• ndnSIM/ndn-cxx/ndn-cxx/security/validation-policy.hpp
• ndnSIM/ndn-cxx/ndn-cxx/security/validation-policy.cpp
