Server config with iostream transport. More...

#include <core.hpp>

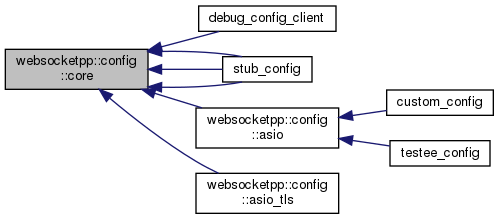

Inheritance diagram for websocketpp::config::core:

[legend]

Collaboration diagram for websocketpp::config::core:

Classes
struct	permessage_deflate_config
	Extension specific settings: More...

struct	transport_config

Public Types
typedef core	type

typedef websocketpp::concurrency::basic	concurrency_type

typedef http::parser::request	request_type

typedef http::parser::response	response_type

typedef message_buffer::message< message_buffer::alloc::con_msg_manager >	message_type

typedef message_buffer::alloc::con_msg_manager< message_type >	con_msg_manager_type

typedef message_buffer::alloc::endpoint_msg_manager< con_msg_manager_type >	endpoint_msg_manager_type

typedef websocketpp::log::basic< concurrency_type, websocketpp::log::elevel >	elog_type
	Logging policies. More...

typedef websocketpp::log::basic< concurrency_type, websocketpp::log::alevel >	alog_type

typedef websocketpp::random::none::int_generator< uint32_t >	rng_type
	RNG policies. More...

typedef websocketpp::transport::iostream::endpoint< transport_config >	transport_type
	Transport Endpoint Component. More...

typedef websocketpp::endpoint_base	endpoint_base
	User overridable Endpoint base class. More...

typedef websocketpp::connection_base	connection_base
	User overridable Connection base class. More...

typedef websocketpp::extensions::permessage_deflate::disabled< permessage_deflate_config >	permessage_deflate_type

Static Public Attributes
static bool const	enable_multithreading = true
	Controls compile time enabling/disabling of thread syncronization code Disabling can provide a minor performance improvement to single threaded applications. More...

static const long	timeout_open_handshake = 5000
	Default timer values (in ms) More...

static const long	timeout_close_handshake = 5000
	Length of time before a closing handshake is aborted. More...

static const long	timeout_pong = 5000
	Length of time to wait for a pong after a ping. More...

static const int	client_version = 13
	WebSocket Protocol version to use as a client. More...

static const websocketpp::log::level	elog_level
	Default static error logging channels. More...

static const websocketpp::log::level	alog_level
	Default static access logging channels. More...

static const size_t	connection_read_buffer_size = 16384
	Size of the per-connection read buffer. More...

static const bool	drop_on_protocol_error = false
	Drop connections immediately on protocol error. More...

static const bool	silent_close = false
	Suppresses the return of detailed connection close information. More...

static const size_t	max_message_size = 32000000
	Default maximum message size. More...

static const size_t	max_http_body_size = 32000000
	Default maximum http body size. More...

static const bool	enable_extensions = true
	Global flag for enabling/disabling extensions. More...

Detailed Description

Server config with iostream transport.

Definition at line 68 of file core.hpp.

Member Typedef Documentation

◆ type

typedef core websocketpp::config::core::type

Definition at line 69 of file core.hpp.

◆ concurrency_type

typedef websocketpp::concurrency::basic websocketpp::config::core::concurrency_type

Definition at line 72 of file core.hpp.

◆ request_type

typedef http::parser::request websocketpp::config::core::request_type

Definition at line 75 of file core.hpp.

◆ response_type

typedef http::parser::response websocketpp::config::core::response_type

Definition at line 76 of file core.hpp.

◆ message_type

typedef message_buffer::message<message_buffer::alloc::con_msg_manager> websocketpp::config::core::message_type

Definition at line 80 of file core.hpp.

◆ con_msg_manager_type

typedef message_buffer::alloc::con_msg_manager<message_type> websocketpp::config::core::con_msg_manager_type

Definition at line 82 of file core.hpp.

◆ endpoint_msg_manager_type

typedef message_buffer::alloc::endpoint_msg_manager<con_msg_manager_type> websocketpp::config::core::endpoint_msg_manager_type

Definition at line 84 of file core.hpp.

◆ elog_type

typedef websocketpp::log::basic<concurrency_type, websocketpp::log::elevel> websocketpp::config::core::elog_type

Logging policies.

Definition at line 88 of file core.hpp.

◆ alog_type

typedef websocketpp::log::basic<concurrency_type, websocketpp::log::alevel> websocketpp::config::core::alog_type

Definition at line 90 of file core.hpp.

◆ rng_type

typedef websocketpp::random::none::int_generator<uint32_t> websocketpp::config::core::rng_type

RNG policies.

Definition at line 93 of file core.hpp.

◆ transport_type

typedef websocketpp::transport::iostream::endpoint<transport_config> websocketpp::config::core::transport_type

Transport Endpoint Component.

Definition at line 142 of file core.hpp.

◆ endpoint_base

typedef websocketpp::endpoint_base websocketpp::config::core::endpoint_base

User overridable Endpoint base class.

Definition at line 145 of file core.hpp.

◆ connection_base

typedef websocketpp::connection_base websocketpp::config::core::connection_base

User overridable Connection base class.

Definition at line 147 of file core.hpp.

◆ permessage_deflate_type

typedef websocketpp::extensions::permessage_deflate::disabled<permessage_deflate_config> websocketpp::config::core::permessage_deflate_type

Definition at line 276 of file core.hpp.

Member Data Documentation

◆ enable_multithreading

bool const websocketpp::config::core::enable_multithreading = true

static

Controls compile time enabling/disabling of thread syncronization code Disabling can provide a minor performance improvement to single threaded applications.

Definition at line 98 of file core.hpp.

◆ timeout_open_handshake

const long websocketpp::config::core::timeout_open_handshake = 5000

static

Default timer values (in ms)

Length of time before an opening handshake is aborted

Definition at line 152 of file core.hpp.

◆ timeout_close_handshake

const long websocketpp::config::core::timeout_close_handshake = 5000

static

Length of time before a closing handshake is aborted.

Definition at line 154 of file core.hpp.

◆ timeout_pong

const long websocketpp::config::core::timeout_pong = 5000

static

Length of time to wait for a pong after a ping.

Definition at line 156 of file core.hpp.

◆ client_version

const int websocketpp::config::core::client_version = 13

static

WebSocket Protocol version to use as a client.

What version of the WebSocket Protocol to use for outgoing client connections. Setting this to a value other than 13 (RFC6455) is not recommended.

Definition at line 164 of file core.hpp.

◆ elog_level

const websocketpp::log::level websocketpp::config::core::elog_level

static

Initial value:

=

websocketpp::log::elevel::all ^ websocketpp::log::elevel::devel

Default static error logging channels.

Which error logging channels to enable at compile time. Channels not enabled here will be unable to be selected by programs using the library. This option gives an optimizing compiler the ability to remove entirely code to test whether or not to print out log messages on a certain channel

Default is all except for development/debug level errors

Definition at line 176 of file core.hpp.

◆ alog_level

const websocketpp::log::level websocketpp::config::core::alog_level

static

Initial value:

=

websocketpp::log::alevel::all ^ websocketpp::log::alevel::devel

Default static access logging channels.

Which access logging channels to enable at compile time. Channels not enabled here will be unable to be selected by programs using the library. This option gives an optimizing compiler the ability to remove entirely code to test whether or not to print out log messages on a certain channel

Default is all except for development/debug level access messages

Definition at line 189 of file core.hpp.

◆ connection_read_buffer_size

const size_t websocketpp::config::core::connection_read_buffer_size = 16384

static

Size of the per-connection read buffer.

Each connection has an internal buffer of this size. A larger value will result in fewer trips through the library and less CPU overhead at the expense of increased memory usage per connection.

If your application primarily deals in very large messages you may want to try setting this value higher.

If your application has a lot of connections or primarily deals in small messages you may want to try setting this smaller.

Definition at line 204 of file core.hpp.

◆ drop_on_protocol_error

const bool websocketpp::config::core::drop_on_protocol_error = false

static

Drop connections immediately on protocol error.

Drop connections on protocol error rather than sending a close frame. Off by default. This may result in legit messages near the error being dropped as well. It may free up resources otherwise spent dealing with misbehaving clients.

Definition at line 213 of file core.hpp.

◆ silent_close

const bool websocketpp::config::core::silent_close = false

static

Suppresses the return of detailed connection close information.

Silence close suppresses the return of detailed connection close information during the closing handshake. This information is useful for debugging and presenting useful errors to end users but may be undesirable for security reasons in some production environments. Close reasons could be used by an attacker to confirm that the endpoint is out of resources or be used to identify the WebSocket implementation in use.

Note: this will suppress all close codes, including those explicitly sent by local applications.

Definition at line 228 of file core.hpp.

◆ max_message_size

const size_t websocketpp::config::core::max_message_size = 32000000

static

Default maximum message size.

Default value for the processor's maximum message size. Maximum message size determines the point at which the library will fail a connection with the message_too_big protocol error.

The default is 32MB

Since: 0.3.0

Definition at line 240 of file core.hpp.

◆ max_http_body_size

const size_t websocketpp::config::core::max_http_body_size = 32000000

static

Default maximum http body size.

Default value for the http parser's maximum body size. Maximum body size determines the point at which the library will abort reading an HTTP connection with the 413/request entity too large error.

The default is 32MB

Since: 0.5.0

Definition at line 252 of file core.hpp.

◆ enable_extensions

const bool websocketpp::config::core::enable_extensions = true

static

Global flag for enabling/disabling extensions.

Definition at line 255 of file core.hpp.

The documentation for this struct was generated from the following file:

ndnSIM/NFD/websocketpp/websocketpp/config/core.hpp
