Asio based connection transport component. More...

#include <connection.hpp>

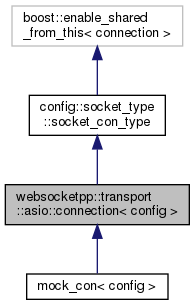

Inheritance diagram for websocketpp::transport::asio::connection< config >:

Collaboration diagram for websocketpp::transport::asio::connection< config >:

Public Types
typedef connection< config >	type
	Type of this connection transport component. More...

typedef lib::shared_ptr< type >	ptr
	Type of a shared pointer to this connection transport component. More...

typedef config::socket_type::socket_con_type	socket_con_type
	Type of the socket connection component. More...

typedef socket_con_type::ptr	socket_con_ptr
	Type of a shared pointer to the socket connection component. More...

typedef config::alog_type	alog_type
	Type of this transport's access logging policy. More...

typedef config::elog_type	elog_type
	Type of this transport's error logging policy. More...

typedef config::request_type	request_type

typedef request_type::ptr	request_ptr

typedef config::response_type	response_type

typedef response_type::ptr	response_ptr

typedef lib::asio::io_service *	io_service_ptr
	Type of a pointer to the Asio io_service being used. More...

typedef lib::shared_ptr< lib::asio::io_service::strand >	strand_ptr
	Type of a pointer to the Asio io_service::strand being used. More...

typedef lib::shared_ptr< lib::asio::steady_timer >	timer_ptr
	Type of a pointer to the Asio timer class. More...

Public Types inherited from websocketpp::transport::asio::tls_socket::connection
typedef connection	type
	Type of this connection socket component. More...

typedef lib::shared_ptr< type >	ptr
	Type of a shared pointer to this connection socket component. More...

typedef lib::asio::ssl::stream< lib::asio::ip::tcp::socket >	socket_type
	Type of the ASIO socket being used. More...

typedef lib::shared_ptr< socket_type >	socket_ptr
	Type of a shared pointer to the ASIO socket being used. More...

typedef lib::asio::io_service *	io_service_ptr
	Type of a pointer to the ASIO io_service being used. More...

typedef lib::shared_ptr< lib::asio::io_service::strand >	strand_ptr
	Type of a pointer to the ASIO io_service strand being used. More...

typedef lib::shared_ptr< lib::asio::ssl::context >	context_ptr
	Type of a shared pointer to the ASIO TLS context being used. More...

Public Member Functions
	connection (bool is_server, const lib::shared_ptr< alog_type > &alog, const lib::shared_ptr< elog_type > &elog)

ptr	get_shared ()
	Get a shared pointer to this component. More...

bool	is_secure () const

void	set_uri (uri_ptr u)
	Set uri hook. More...

void	set_tcp_pre_init_handler (tcp_init_handler h)
	Sets the tcp pre init handler. More...

void	set_tcp_init_handler (tcp_init_handler h)
	Sets the tcp pre init handler (deprecated) More...

void	set_tcp_post_init_handler (tcp_init_handler h)
	Sets the tcp post init handler. More...

void	set_proxy (std::string const &uri, lib::error_code &ec)
	Set the proxy to connect through (exception free) More...

void	set_proxy (std::string const &uri)
	Set the proxy to connect through (exception) More...

void	set_proxy_basic_auth (std::string const &username, std::string const &password, lib::error_code &ec)
	Set the basic auth credentials to use (exception free) More...

void	set_proxy_basic_auth (std::string const &username, std::string const &password)
	Set the basic auth credentials to use (exception) More...

void	set_proxy_timeout (long duration, lib::error_code &ec)
	Set the proxy timeout duration (exception free) More...

void	set_proxy_timeout (long duration)
	Set the proxy timeout duration (exception) More...

std::string const &	get_proxy () const

std::string	get_remote_endpoint () const
	Get the remote endpoint address. More...

connection_hdl	get_handle () const
	Get the connection handle. More...

timer_ptr	set_timer (long duration, timer_handler callback)
	Call back a function after a period of time. More...

void	handle_timer (timer_ptr, timer_handler callback, lib::asio::error_code const &ec)
	Timer callback. More...

strand_ptr	get_strand ()
	Get a pointer to this connection's strand. More...

lib::asio::error_code	get_transport_ec () const
	Get the internal transport error code for a closed/failed connection. More...

Public Member Functions inherited from websocketpp::transport::asio::tls_socket::connection
	connection ()

ptr	get_shared ()
	Get a shared pointer to this component. More...

bool	is_secure () const
	Check whether or not this connection is secure. More...

socket_type::lowest_layer_type &	get_raw_socket ()
	Retrieve a pointer to the underlying socket. More...

socket_type::next_layer_type &	get_next_layer ()
	Retrieve a pointer to the layer below the ssl stream. More...

socket_type &	get_socket ()
	Retrieve a pointer to the wrapped socket. More...

void	set_socket_init_handler (socket_init_handler h)
	Set the socket initialization handler. More...

void	set_tls_init_handler (tls_init_handler h)
	Set TLS init handler. More...

std::string	get_remote_endpoint (lib::error_code &ec) const
	Get the remote endpoint address. More...

Protected Member Functions
void	init (init_handler callback)
	Initialize transport for reading. More...

lib::error_code	proxy_init (std::string const &authority)
	initialize the proxy buffers and http parsers More...

lib::error_code	init_asio (io_service_ptr io_service)
	Finish constructing the transport. More...

void	handle_pre_init (init_handler callback, lib::error_code const &ec)

void	post_init (init_handler callback)

void	handle_post_init_timeout (timer_ptr, init_handler callback, lib::error_code const &ec)
	Post init timeout callback. More...

void	handle_post_init (timer_ptr post_timer, init_handler callback, lib::error_code const &ec)
	Post init timeout callback. More...

void	proxy_write (init_handler callback)

void	handle_proxy_timeout (init_handler callback, lib::error_code const &ec)

void	handle_proxy_write (init_handler callback, lib::asio::error_code const &ec)

void	proxy_read (init_handler callback)

void	handle_proxy_read (init_handler callback, lib::asio::error_code const &ec, size_t)
	Proxy read callback. More...

void	async_read_at_least (size_t num_bytes, char *buf, size_t len, read_handler handler)
	read at least num_bytes bytes into buf and then call handler. More...

void	handle_async_read (read_handler handler, lib::asio::error_code const &ec, size_t bytes_transferred)

void	async_write (const char *buf, size_t len, write_handler handler)
	Initiate a potentially asyncronous write of the given buffer. More...

void	async_write (std::vector< buffer > const &bufs, write_handler handler)
	Initiate a potentially asyncronous write of the given buffers. More...

void	handle_async_write (write_handler handler, lib::asio::error_code const &ec, size_t)
	Async write callback. More...

void	set_handle (connection_hdl hdl)
	Set Connection Handle. More...

lib::error_code	interrupt (interrupt_handler handler)
	Trigger the on_interrupt handler. More...

lib::error_code	dispatch (dispatch_handler handler)

void	async_shutdown (shutdown_handler callback)
	close and clean up the underlying socket More...

void	handle_async_shutdown_timeout (timer_ptr, init_handler callback, lib::error_code const &ec)
	Async shutdown timeout handler. More...

void	handle_async_shutdown (timer_ptr shutdown_timer, shutdown_handler callback, lib::asio::error_code const &ec)

void	cancel_socket_checked ()
	Cancel the underlying socket and log any errors. More...

Protected Member Functions inherited from websocketpp::transport::asio::tls_socket::connection
lib::error_code	init_asio (io_service_ptr service, strand_ptr strand, bool is_server)
	Perform one time initializations. More...

void	set_uri (uri_ptr u)
	Set hostname hook. More...

void	pre_init (init_handler callback)
	Pre-initialize security policy. More...

void	post_init (init_handler callback)
	Post-initialize security policy. More...

void	set_handle (connection_hdl hdl)
	Sets the connection handle. More...

void	handle_init (init_handler callback, lib::asio::error_code const &ec)

lib::error_code	get_ec () const

lib::asio::error_code	cancel_socket ()
	Cancel all async operations on this socket. More...

void	async_shutdown (socket::shutdown_handler callback)

Friends
class	endpoint< config >

Additional Inherited Members
Static Public Member Functions inherited from websocketpp::transport::asio::tls_socket::connection
template<typename ErrorCodeType >
static lib::error_code	translate_ec (ErrorCodeType ec)
	Translate any security policy specific information about an error code. More...

static lib::error_code	translate_ec (lib::error_code ec)
	Overload of translate_ec to catch cases where lib::error_code is the same type as lib::asio::error_code. More...

Detailed Description

template<typename config>
class websocketpp::transport::asio::connection< config >

Asio based connection transport component.

transport::asio::connection implements a connection transport component using Asio that works with the transport::asio::endpoint endpoint transport component.

Definition at line 67 of file connection.hpp.

Member Typedef Documentation

◆ type

template<typename config >

typedef connection<config> websocketpp::transport::asio::connection< config >::type

Type of this connection transport component.

Definition at line 70 of file connection.hpp.

◆ ptr

template<typename config >

typedef lib::shared_ptr<type> websocketpp::transport::asio::connection< config >::ptr

Type of a shared pointer to this connection transport component.

Definition at line 72 of file connection.hpp.

◆ socket_con_type

template<typename config >

typedef config::socket_type::socket_con_type websocketpp::transport::asio::connection< config >::socket_con_type

Type of the socket connection component.

Definition at line 75 of file connection.hpp.

◆ socket_con_ptr

template<typename config >

typedef socket_con_type::ptr websocketpp::transport::asio::connection< config >::socket_con_ptr

Type of a shared pointer to the socket connection component.

Definition at line 77 of file connection.hpp.

◆ alog_type

template<typename config >

typedef config::alog_type websocketpp::transport::asio::connection< config >::alog_type

Type of this transport's access logging policy.

Definition at line 79 of file connection.hpp.

◆ elog_type

template<typename config >

typedef config::elog_type websocketpp::transport::asio::connection< config >::elog_type

Type of this transport's error logging policy.

Definition at line 81 of file connection.hpp.

◆ request_type

template<typename config >

typedef config::request_type websocketpp::transport::asio::connection< config >::request_type

Definition at line 83 of file connection.hpp.

◆ request_ptr

template<typename config >

typedef request_type::ptr websocketpp::transport::asio::connection< config >::request_ptr

Definition at line 84 of file connection.hpp.

◆ response_type

template<typename config >

typedef config::response_type websocketpp::transport::asio::connection< config >::response_type

Definition at line 85 of file connection.hpp.

◆ response_ptr

template<typename config >

typedef response_type::ptr websocketpp::transport::asio::connection< config >::response_ptr

Definition at line 86 of file connection.hpp.

◆ io_service_ptr

template<typename config >

typedef lib::asio::io_service* websocketpp::transport::asio::connection< config >::io_service_ptr

Type of a pointer to the Asio io_service being used.

Definition at line 89 of file connection.hpp.

◆ strand_ptr

template<typename config >

typedef lib::shared_ptr<lib::asio::io_service::strand> websocketpp::transport::asio::connection< config >::strand_ptr

Type of a pointer to the Asio io_service::strand being used.

Definition at line 91 of file connection.hpp.

◆ timer_ptr

template<typename config >

typedef lib::shared_ptr<lib::asio::steady_timer> websocketpp::transport::asio::connection< config >::timer_ptr

Type of a pointer to the Asio timer class.

Definition at line 93 of file connection.hpp.

Constructor & Destructor Documentation

◆ connection()

template<typename config >

websocketpp::transport::asio::connection< config >::connection	(	bool	is_server,
		const lib::shared_ptr< alog_type > &	alog,
		const lib::shared_ptr< elog_type > &	elog
	)

inlineexplicit

Definition at line 101 of file connection.hpp.

References websocketpp::log::alevel::devel.

Member Function Documentation

◆ get_shared()

template<typename config >

ptr websocketpp::transport::asio::connection< config >::get_shared ( )

inline

Get a shared pointer to this component.

Definition at line 110 of file connection.hpp.

References websocketpp::transport::asio::tls_socket::connection::get_shared().

◆ is_secure()

template<typename config >

bool websocketpp::transport::asio::connection< config >::is_secure ( ) const

inline

Definition at line 114 of file connection.hpp.

References websocketpp::transport::asio::tls_socket::connection::is_secure().

◆ set_uri()

template<typename config >

void websocketpp::transport::asio::connection< config >::set_uri ( uri_ptr u )

inline

Set uri hook.

Called by the endpoint as a connection is being established to provide the uri being connected to to the transport layer.

This transport policy doesn't use the uri except to forward it to the socket layer.

Since: 0.6.0

Parameters

u	The uri to set

Definition at line 130 of file connection.hpp.

References websocketpp::transport::asio::tls_socket::connection::set_uri().

◆ set_tcp_pre_init_handler()

template<typename config >

void websocketpp::transport::asio::connection< config >::set_tcp_pre_init_handler ( tcp_init_handler h )

inline

Sets the tcp pre init handler.

The tcp pre init handler is called after the raw tcp connection has been established but before any additional wrappers (proxy connects, TLS handshakes, etc) have been performed.

Since: 0.3.0

Parameters

h	The handler to call on tcp pre init.

Definition at line 144 of file connection.hpp.

Referenced by websocketpp::transport::asio::connection< config >::set_tcp_init_handler().

◆ set_tcp_init_handler()

template<typename config >

void websocketpp::transport::asio::connection< config >::set_tcp_init_handler ( tcp_init_handler h )

inline

Sets the tcp pre init handler (deprecated)

The tcp pre init handler is called after the raw tcp connection has been established but before any additional wrappers (proxy connects, TLS handshakes, etc) have been performed.

Deprecated:: Use set_tcp_pre_init_handler instead

Parameters

h	The handler to call on tcp pre init.

Definition at line 158 of file connection.hpp.

References websocketpp::transport::asio::connection< config >::set_tcp_pre_init_handler().

◆ set_tcp_post_init_handler()

template<typename config >

void websocketpp::transport::asio::connection< config >::set_tcp_post_init_handler ( tcp_init_handler h )

inline

Sets the tcp post init handler.

The tcp post init handler is called after the tcp connection has been established and all additional wrappers (proxy connects, TLS handshakes, etc have been performed. This is fired before any bytes are read or any WebSocket specific handshake logic has been performed.

Since: 0.3.0

Parameters

h	The handler to call on tcp post init.

Definition at line 173 of file connection.hpp.

◆ set_proxy() [1/2]

template<typename config >

void websocketpp::transport::asio::connection< config >::set_proxy	(	std::string const &	uri,
		lib::error_code &	ec
	)

inline

Set the proxy to connect through (exception free)

The URI passed should be a complete URI including scheme. For example: http://proxy.example.com:8080/

The proxy must be set up as an explicit (CONNECT) proxy allowed to connect to the port you specify. Traffic to the proxy is not encrypted.

Parameters

uri	The full URI of the proxy to connect to.
ec	A status value

Definition at line 189 of file connection.hpp.

Referenced by websocketpp::transport::asio::connection< config >::set_proxy().

◆ set_proxy() [2/2]

template<typename config >

void websocketpp::transport::asio::connection< config >::set_proxy ( std::string const & uri )

inline

Set the proxy to connect through (exception)

Definition at line 198 of file connection.hpp.

References websocketpp::transport::asio::connection< config >::set_proxy().

◆ set_proxy_basic_auth() [1/2]

template<typename config >

void websocketpp::transport::asio::connection< config >::set_proxy_basic_auth	(	std::string const &	username,
		std::string const &	password,
		lib::error_code &	ec
	)

inline

Set the basic auth credentials to use (exception free)

The URI passed should be a complete URI including scheme. For example: http://proxy.example.com:8080/

The proxy must be set up as an explicit proxy

Parameters

username	The username to send
password	The password to send
ec	A status value

Definition at line 217 of file connection.hpp.

References websocketpp::base64_encode(), websocketpp::error::invalid_state, and websocketpp::transport::error::make_error_code().

Referenced by websocketpp::transport::asio::connection< config >::set_proxy_basic_auth().

◆ set_proxy_basic_auth() [2/2]

template<typename config >

void websocketpp::transport::asio::connection< config >::set_proxy_basic_auth	(	std::string const &	username,
		std::string const &	password
	)

inline

Set the basic auth credentials to use (exception)

Definition at line 232 of file connection.hpp.

References websocketpp::transport::asio::connection< config >::set_proxy_basic_auth().

◆ set_proxy_timeout() [1/2]

template<typename config >

void websocketpp::transport::asio::connection< config >::set_proxy_timeout	(	long	duration,
		lib::error_code &	ec
	)

inline

Set the proxy timeout duration (exception free)

Duration is in milliseconds. Default value is based on the transport config

Parameters

duration	The number of milliseconds to wait before aborting the proxy connection.
ec	A status value

Definition at line 250 of file connection.hpp.

References websocketpp::error::invalid_state, and websocketpp::transport::error::make_error_code().

Referenced by websocketpp::transport::asio::connection< config >::set_proxy_timeout().

◆ set_proxy_timeout() [2/2]

template<typename config >

void websocketpp::transport::asio::connection< config >::set_proxy_timeout ( long duration )

inline

Set the proxy timeout duration (exception)

Definition at line 261 of file connection.hpp.

References websocketpp::transport::asio::connection< config >::set_proxy_timeout().

◆ get_proxy()

template<typename config >

std::string const& websocketpp::transport::asio::connection< config >::get_proxy ( ) const

inline

Definition at line 267 of file connection.hpp.

◆ get_remote_endpoint()

template<typename config >

std::string websocketpp::transport::asio::connection< config >::get_remote_endpoint ( ) const

inline

Get the remote endpoint address.

The iostream transport has no information about the ultimate remote endpoint. It will return the string "iostream transport". To indicate this.

TODO: allow user settable remote endpoint addresses if this seems useful

Returns: A string identifying the address of the remote endpoint

Definition at line 281 of file connection.hpp.

References websocketpp::transport::asio::tls_socket::connection::get_remote_endpoint(), and websocketpp::log::elevel::info.

◆ get_handle()

template<typename config >

connection_hdl websocketpp::transport::asio::connection< config >::get_handle ( ) const

inline

Get the connection handle.

Definition at line 295 of file connection.hpp.

◆ set_timer()

template<typename config >

timer_ptr websocketpp::transport::asio::connection< config >::set_timer	(	long	duration,
		timer_handler	callback
	)

inline

Call back a function after a period of time.

Sets a timer that calls back a function after the specified period of milliseconds. Returns a handle that can be used to cancel the timer. A cancelled timer will return the error code error::operation_aborted A timer that expired will return no error.

Parameters

duration	Length of time to wait in milliseconds
callback	The function to call back when the timer has expired

Returns: A handle that can be used to cancel the timer if it is no longer needed.

Definition at line 313 of file connection.hpp.

References config::enable_multithreading, websocketpp::transport::asio::connection< config >::get_shared(), websocketpp::transport::asio::connection< config >::handle_timer(), and websocketpp::lib::asio::milliseconds().

Referenced by websocketpp::transport::asio::connection< config >::async_shutdown(), websocketpp::transport::asio::connection< config >::post_init(), and websocketpp::transport::asio::connection< config >::proxy_write().

◆ handle_timer()

template<typename config >

void websocketpp::transport::asio::connection< config >::handle_timer	(	timer_ptr	,
		timer_handler	callback,
		lib::asio::error_code const &	ec
	)

inline

Timer callback.

The timer pointer is included to ensure the timer isn't destroyed until after it has expired.

TODO: candidate for protected status

Parameters

post_timer	Pointer to the timer in question
callback	The function to call back
ec	The status code

Definition at line 349 of file connection.hpp.

References websocketpp::log::elevel::info, websocketpp::transport::error::make_error_code(), websocketpp::transport::error::operation_aborted, and websocketpp::transport::asio::error::pass_through.

Referenced by websocketpp::transport::asio::connection< config >::set_timer().

◆ get_strand()

template<typename config >

strand_ptr websocketpp::transport::asio::connection< config >::get_strand ( )

inline

Get a pointer to this connection's strand.

Definition at line 365 of file connection.hpp.

◆ get_transport_ec()

template<typename config >

lib::asio::error_code websocketpp::transport::asio::connection< config >::get_transport_ec ( ) const

inline

Get the internal transport error code for a closed/failed connection.

Retrieves a machine readable detailed error code indicating the reason that the connection was closed or failed. Valid only after the close or fail handler is called.

Primarily used if you are using mismatched asio / system_error implementations such as boost::asio with std::system_error. In these cases the transport error type is different than the library error type and some WebSocket++ functions that return transport errors via the library error code type will be coerced into a catch all pass_through or tls_error error. This method will return the original machine readable transport error in the native type.

Since: 0.7.0

Returns: Error code indicating the reason the connection was closed or failed

Definition at line 388 of file connection.hpp.

◆ init()

template<typename config >

void websocketpp::transport::asio::connection< config >::init ( init_handler callback )

inlineprotected

Initialize transport for reading.

init_asio is called once immediately after construction to initialize Asio components to the io_service

The transport initialization sequence consists of the following steps:

Pre-init: the underlying socket is initialized to the point where bytes may be written. No bytes are actually written in this stage
Proxy negotiation: if a proxy is set, a request is made to it to start a tunnel to the final destination. This stage ends when the proxy is ready to forward the next byte to the remote endpoint.
Post-init: Perform any i/o with the remote endpoint, such as setting up tunnels for encryption. This stage ends when the connection is ready to read or write the WebSocket handshakes. At this point the original callback function is called.

Definition at line 410 of file connection.hpp.

References websocketpp::log::alevel::devel, websocketpp::transport::asio::connection< config >::get_shared(), websocketpp::transport::asio::connection< config >::handle_pre_init(), and websocketpp::transport::asio::tls_socket::connection::pre_init().

◆ proxy_init()

template<typename config >

lib::error_code websocketpp::transport::asio::connection< config >::proxy_init ( std::string const & authority )

inlineprotected

initialize the proxy buffers and http parsers

Parameters

authority The address of the server we want the proxy to tunnel to in the format of a URI authority (host:port)

Returns: Status code indicating what errors occurred, if any

Definition at line 436 of file connection.hpp.

References websocketpp::error::invalid_state, and websocketpp::error::make_error_code().

◆ init_asio()

template<typename config >

lib::error_code websocketpp::transport::asio::connection< config >::init_asio ( io_service_ptr io_service )

inlineprotected

Finish constructing the transport.

init_asio is called once immediately after construction to initialize Asio components to the io_service.

Parameters

io_service A pointer to the io_service to register with this connection

Returns: Status code for the success or failure of the initialization

Definition at line 460 of file connection.hpp.

References config::enable_multithreading, and websocketpp::transport::asio::tls_socket::connection::init_asio().

◆ handle_pre_init()

template<typename config >

void websocketpp::transport::asio::connection< config >::handle_pre_init	(	init_handler	callback,
		lib::error_code const &	ec
	)

inlineprotected

Definition at line 474 of file connection.hpp.

References websocketpp::log::alevel::devel, websocketpp::transport::asio::connection< config >::post_init(), and websocketpp::transport::asio::connection< config >::proxy_write().

Referenced by websocketpp::transport::asio::connection< config >::init().

◆ post_init()

template<typename config >

void websocketpp::transport::asio::connection< config >::post_init ( init_handler callback )

inlineprotected

Definition at line 496 of file connection.hpp.

References websocketpp::log::alevel::devel, websocketpp::transport::asio::connection< config >::get_shared(), websocketpp::transport::asio::connection< config >::handle_post_init(), websocketpp::transport::asio::connection< config >::handle_post_init_timeout(), websocketpp::transport::asio::tls_socket::connection::post_init(), websocketpp::transport::asio::connection< config >::set_timer(), and config::timeout_socket_post_init.

Referenced by websocketpp::transport::asio::connection< config >::handle_pre_init(), and websocketpp::transport::asio::connection< config >::handle_proxy_read().

◆ handle_post_init_timeout()

template<typename config >

void websocketpp::transport::asio::connection< config >::handle_post_init_timeout	(	timer_ptr	,
		init_handler	callback,
		lib::error_code const &	ec
	)

inlineprotected

Post init timeout callback.

The timer pointer is included to ensure the timer isn't destroyed until after it has expired.

Parameters

post_timer	Pointer to the timer in question
callback	The function to call back
ec	The status code

Definition at line 536 of file connection.hpp.

References websocketpp::transport::asio::connection< config >::cancel_socket_checked(), websocketpp::log::elevel::devel, websocketpp::log::alevel::devel, websocketpp::transport::asio::tls_socket::connection::get_ec(), websocketpp::transport::error::make_error_code(), websocketpp::transport::error::operation_aborted, and websocketpp::transport::error::timeout.

Referenced by websocketpp::transport::asio::connection< config >::post_init().

◆ handle_post_init()

template<typename config >

void websocketpp::transport::asio::connection< config >::handle_post_init	(	timer_ptr	post_timer,
		init_handler	callback,
		lib::error_code const &	ec
	)

inlineprotected

Post init timeout callback.

The timer pointer is included to ensure the timer isn't destroyed until after it has expired.

Parameters

post_timer	Pointer to the timer in question
callback	The function to call back
ec	The status code

Definition at line 572 of file connection.hpp.

References websocketpp::log::alevel::devel, websocketpp::lib::asio::is_neg(), and websocketpp::transport::error::operation_aborted.

Referenced by websocketpp::transport::asio::connection< config >::post_init().

◆ proxy_write()

template<typename config >

void websocketpp::transport::asio::connection< config >::proxy_write ( init_handler callback )

inlineprotected

Definition at line 597 of file connection.hpp.

References websocketpp::log::alevel::devel, config::enable_multithreading, websocketpp::transport::asio::error::general, websocketpp::transport::asio::tls_socket::connection::get_next_layer(), websocketpp::transport::asio::connection< config >::get_shared(), websocketpp::transport::asio::connection< config >::handle_proxy_timeout(), websocketpp::transport::asio::connection< config >::handle_proxy_write(), websocketpp::log::elevel::library, websocketpp::transport::error::make_error_code(), and websocketpp::transport::asio::connection< config >::set_timer().

Referenced by websocketpp::transport::asio::connection< config >::handle_pre_init().

◆ handle_proxy_timeout()

template<typename config >

void websocketpp::transport::asio::connection< config >::handle_proxy_timeout	(	init_handler	callback,
		lib::error_code const &	ec
	)

inlineprotected

Definition at line 651 of file connection.hpp.

References websocketpp::transport::asio::connection< config >::cancel_socket_checked(), websocketpp::log::elevel::devel, websocketpp::log::alevel::devel, websocketpp::transport::error::make_error_code(), websocketpp::transport::error::operation_aborted, and websocketpp::transport::error::timeout.

Referenced by websocketpp::transport::asio::connection< config >::proxy_write().

◆ handle_proxy_write()

template<typename config >

void websocketpp::transport::asio::connection< config >::handle_proxy_write	(	init_handler	callback,
		lib::asio::error_code const &	ec
	)

inlineprotected

Definition at line 668 of file connection.hpp.

References websocketpp::log::elevel::devel, websocketpp::log::alevel::devel, websocketpp::log::elevel::info, websocketpp::lib::asio::is_neg(), websocketpp::transport::error::make_error_code(), websocketpp::transport::error::operation_aborted, websocketpp::transport::asio::error::pass_through, and websocketpp::transport::asio::connection< config >::proxy_read().

Referenced by websocketpp::transport::asio::connection< config >::proxy_write().

◆ proxy_read()

template<typename config >

void websocketpp::transport::asio::connection< config >::proxy_read ( init_handler callback )

inlineprotected

Definition at line 698 of file connection.hpp.

References websocketpp::log::alevel::devel, config::enable_multithreading, websocketpp::transport::asio::error::general, websocketpp::transport::asio::tls_socket::connection::get_next_layer(), websocketpp::transport::asio::connection< config >::get_shared(), websocketpp::transport::asio::connection< config >::handle_proxy_read(), websocketpp::log::elevel::library, and websocketpp::transport::error::make_error_code().

Referenced by websocketpp::transport::asio::connection< config >::handle_proxy_write().

◆ handle_proxy_read()

template<typename config >

void websocketpp::transport::asio::connection< config >::handle_proxy_read	(	init_handler	callback,
		lib::asio::error_code const &	ec,
		size_t
	)

inlineprotected

Proxy read callback.

Parameters

init_handler	The function to call back
ec	The status code
bytes_transferred	The number of bytes read

Definition at line 742 of file connection.hpp.

References websocketpp::log::elevel::devel, websocketpp::log::alevel::devel, websocketpp::transport::asio::error::general, websocketpp::log::elevel::info, websocketpp::lib::asio::is_neg(), websocketpp::log::elevel::library, websocketpp::transport::error::make_error_code(), websocketpp::http::status_code::ok, websocketpp::transport::error::operation_aborted, websocketpp::transport::asio::error::pass_through, websocketpp::transport::asio::connection< config >::post_init(), and websocketpp::transport::asio::error::proxy_failed.

Referenced by websocketpp::transport::asio::connection< config >::proxy_read().

◆ async_read_at_least()

template<typename config >

void websocketpp::transport::asio::connection< config >::async_read_at_least	(	size_t	num_bytes,
		char *	buf,
		size_t	len,
		read_handler	handler
	)

inlineprotected

read at least num_bytes bytes into buf and then call handler.

Definition at line 820 of file connection.hpp.

References websocketpp::log::alevel::devel, config::enable_multithreading, websocketpp::transport::asio::connection< config >::get_shared(), websocketpp::transport::asio::tls_socket::connection::get_socket(), websocketpp::transport::asio::connection< config >::handle_async_read(), and websocketpp::transport::asio::make_custom_alloc_handler().

◆ handle_async_read()

template<typename config >

void websocketpp::transport::asio::connection< config >::handle_async_read	(	read_handler	handler,
		lib::asio::error_code const &	ec,
		size_t	bytes_transferred
	)

inlineprotected

Definition at line 871 of file connection.hpp.

References websocketpp::log::alevel::devel, websocketpp::transport::error::eof, websocketpp::log::elevel::info, websocketpp::transport::error::make_error_code(), websocketpp::transport::error::pass_through, websocketpp::transport::error::tls_error, and websocketpp::transport::asio::tls_socket::connection::translate_ec().

Referenced by websocketpp::transport::asio::connection< config >::async_read_at_least().

◆ async_write() [1/2]

template<typename config >

void websocketpp::transport::asio::connection< config >::async_write	(	const char *	buf,
		size_t	len,
		write_handler	handler
	)

inlineprotected

Initiate a potentially asyncronous write of the given buffer.

Definition at line 906 of file connection.hpp.

References config::enable_multithreading, websocketpp::transport::asio::connection< config >::get_shared(), websocketpp::transport::asio::tls_socket::connection::get_socket(), websocketpp::transport::asio::connection< config >::handle_async_write(), and websocketpp::transport::asio::make_custom_alloc_handler().

◆ async_write() [2/2]

template<typename config >

void websocketpp::transport::asio::connection< config >::async_write	(	std::vector< buffer > const &	bufs,
		write_handler	handler
	)

inlineprotected

Initiate a potentially asyncronous write of the given buffers.

Definition at line 939 of file connection.hpp.

References config::enable_multithreading, websocketpp::transport::asio::connection< config >::get_shared(), websocketpp::transport::asio::tls_socket::connection::get_socket(), websocketpp::transport::asio::connection< config >::handle_async_write(), and websocketpp::transport::asio::make_custom_alloc_handler().

◆ handle_async_write()

template<typename config >

void websocketpp::transport::asio::connection< config >::handle_async_write	(	write_handler	handler,
		lib::asio::error_code const &	ec,
		size_t
	)

inlineprotected

Async write callback.

Parameters

ec	The status code
bytes_transferred	The number of bytes read

Definition at line 980 of file connection.hpp.

References websocketpp::log::alevel::devel, websocketpp::log::elevel::info, websocketpp::transport::error::make_error_code(), and websocketpp::transport::error::pass_through.

Referenced by websocketpp::transport::asio::connection< config >::async_write().

◆ set_handle()

template<typename config >

void websocketpp::transport::asio::connection< config >::set_handle ( connection_hdl hdl )

inlineprotected

Set Connection Handle.

See common/connection_hdl.hpp for information

Parameters

hdl	A connection_hdl that the transport will use to refer to itself

Definition at line 1004 of file connection.hpp.

References websocketpp::transport::asio::tls_socket::connection::set_handle().

◆ interrupt()

template<typename config >

lib::error_code websocketpp::transport::asio::connection< config >::interrupt ( interrupt_handler handler )

inlineprotected

Trigger the on_interrupt handler.

This needs to be thread safe

Definition at line 1013 of file connection.hpp.

References config::enable_multithreading.

◆ dispatch()

template<typename config >

lib::error_code websocketpp::transport::asio::connection< config >::dispatch ( dispatch_handler handler )

inlineprotected

Definition at line 1022 of file connection.hpp.

References config::enable_multithreading.

◆ async_shutdown()

template<typename config >

void websocketpp::transport::asio::connection< config >::async_shutdown ( shutdown_handler callback )

inlineprotected

close and clean up the underlying socket

Definition at line 1036 of file connection.hpp.

References websocketpp::transport::asio::tls_socket::connection::async_shutdown(), websocketpp::log::alevel::devel, websocketpp::transport::asio::connection< config >::get_shared(), websocketpp::transport::asio::connection< config >::handle_async_shutdown(), websocketpp::transport::asio::connection< config >::handle_async_shutdown_timeout(), websocketpp::transport::asio::connection< config >::set_timer(), and config::timeout_socket_shutdown.

◆ handle_async_shutdown_timeout()

template<typename config >

void websocketpp::transport::asio::connection< config >::handle_async_shutdown_timeout	(	timer_ptr	,
		init_handler	callback,
		lib::error_code const &	ec
	)

inlineprotected

Async shutdown timeout handler.

Parameters

shutdown_timer	A pointer to the timer to keep it in scope
callback	The function to call back
ec	The status code

Definition at line 1070 of file connection.hpp.

References websocketpp::transport::asio::connection< config >::cancel_socket_checked(), websocketpp::log::elevel::devel, websocketpp::log::alevel::devel, websocketpp::transport::error::make_error_code(), websocketpp::transport::error::operation_aborted, and websocketpp::transport::error::timeout.

Referenced by websocketpp::transport::asio::connection< config >::async_shutdown().

◆ handle_async_shutdown()

template<typename config >

void websocketpp::transport::asio::connection< config >::handle_async_shutdown	(	timer_ptr	shutdown_timer,
		shutdown_handler	callback,
		lib::asio::error_code const &	ec
	)

inlineprotected

Definition at line 1094 of file connection.hpp.

References websocketpp::log::alevel::devel, websocketpp::log::elevel::info, websocketpp::lib::asio::is_neg(), websocketpp::transport::error::operation_aborted, and websocketpp::transport::asio::tls_socket::connection::translate_ec().

Referenced by websocketpp::transport::asio::connection< config >::async_shutdown().

◆ cancel_socket_checked()

template<typename config >

void websocketpp::transport::asio::connection< config >::cancel_socket_checked ( )

inlineprotected

Cancel the underlying socket and log any errors.

Definition at line 1134 of file connection.hpp.

References websocketpp::transport::asio::tls_socket::connection::cancel_socket(), websocketpp::log::alevel::devel, websocketpp::transport::error::operation_not_supported, config::timeout_proxy, and websocketpp::log::elevel::warn.

Referenced by websocketpp::transport::asio::connection< config >::handle_async_shutdown_timeout(), websocketpp::transport::asio::connection< config >::handle_post_init_timeout(), and websocketpp::transport::asio::connection< config >::handle_proxy_timeout().

Friends And Related Function Documentation

◆ endpoint< config >

template<typename config >

friend class endpoint< config >

friend

Definition at line 98 of file connection.hpp.

The documentation for this class was generated from the following file:

ndnSIM/NFD/websocketpp/websocketpp/transport/asio/connection.hpp

Public Types

Public Member Functions

Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

template<typename config> class websocketpp::transport::asio::connection< config >

Member Typedef Documentation

◆ type

◆ ptr

◆ socket_con_type

◆ socket_con_ptr

◆ alog_type

◆ elog_type

◆ request_type

◆ request_ptr

◆ response_type

◆ response_ptr

◆ io_service_ptr

◆ strand_ptr

◆ timer_ptr

Constructor & Destructor Documentation

◆ connection()

Member Function Documentation

◆ get_shared()

◆ is_secure()

◆ set_uri()

◆ set_tcp_pre_init_handler()

◆ set_tcp_init_handler()

◆ set_tcp_post_init_handler()

◆ set_proxy() [1/2]

◆ set_proxy() [2/2]

◆ set_proxy_basic_auth() [1/2]

◆ set_proxy_basic_auth() [2/2]

◆ set_proxy_timeout() [1/2]

◆ set_proxy_timeout() [2/2]

◆ get_proxy()

◆ get_remote_endpoint()

◆ get_handle()

◆ set_timer()

◆ handle_timer()

◆ get_strand()

◆ get_transport_ec()

◆ init()

◆ proxy_init()

◆ init_asio()

◆ handle_pre_init()

◆ post_init()

◆ handle_post_init_timeout()

◆ handle_post_init()

◆ proxy_write()

◆ handle_proxy_timeout()

◆ handle_proxy_write()

◆ proxy_read()

◆ handle_proxy_read()

◆ async_read_at_least()

◆ handle_async_read()

◆ async_write() [1/2]

◆ async_write() [2/2]

◆ handle_async_write()

◆ set_handle()

◆ interrupt()

◆ dispatch()

◆ async_shutdown()

◆ handle_async_shutdown_timeout()

◆ handle_async_shutdown()

◆ cancel_socket_checked()

Friends And Related Function Documentation

◆ endpoint< config >

template<typename config>
class websocketpp::transport::asio::connection< config >
