Server endpoint role based on the given config. More...

#include <server_endpoint.hpp>

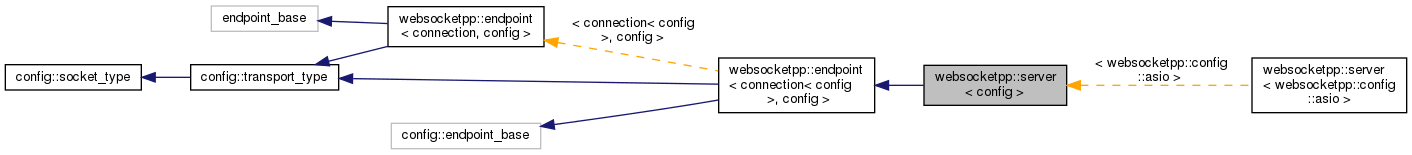

Inheritance diagram for websocketpp::server< config >:

[legend]

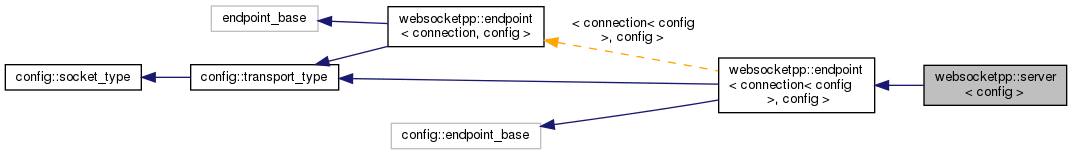

Collaboration diagram for websocketpp::server< config >:

[legend]

Public Types
typedef server< config >	type
	Type of this endpoint. More...

typedef config::concurrency_type	concurrency_type
	Type of the endpoint concurrency component. More...

typedef config::transport_type	transport_type
	Type of the endpoint transport component. More...

typedef connection< config >	connection_type
	Type of the connections this server will create. More...

typedef connection_type::ptr	connection_ptr
	Type of a shared pointer to the connections this server will create. More...

typedef transport_type::transport_con_type	transport_con_type
	Type of the connection transport component. More...

typedef transport_con_type::ptr	transport_con_ptr
	Type of a shared pointer to the connection transport component. More...

typedef endpoint< connection_type, config >	endpoint_type
	Type of the endpoint component of this server. More...

Public Types inherited from websocketpp::endpoint< connection< config >, config >
typedef endpoint< connection< config >, config >	type

typedef config::transport_type	transport_type
	Type of the transport component of this endpoint. More...

typedef config::concurrency_type	concurrency_type
	Type of the concurrency component of this endpoint. More...

typedef connection< config >	connection_type
	Type of the connections that this endpoint creates. More...

typedef connection_type::ptr	connection_ptr
	Shared pointer to connection_type. More...

typedef connection_type::weak_ptr	connection_weak_ptr
	Weak pointer to connection type. More...

typedef transport_type::transport_con_type	transport_con_type
	Type of the transport component of the connections that this endpoint creates. More...

typedef transport_con_type::ptr	transport_con_ptr
	Type of a shared pointer to the transport component of the connections that this endpoint creates. More...

typedef connection_type::message_handler	message_handler
	Type of message_handler. More...

typedef connection_type::message_ptr	message_ptr
	Type of message pointers that this endpoint uses. More...

typedef config::elog_type	elog_type
	Type of error logger. More...

typedef config::alog_type	alog_type
	Type of access logger. More...

typedef concurrency_type::scoped_lock_type	scoped_lock_type
	Type of our concurrency policy's scoped lock object. More...

typedef concurrency_type::mutex_type	mutex_type
	Type of our concurrency policy's mutex object. More...

typedef config::rng_type	rng_type
	Type of RNG. More...

typedef connection_type::termination_handler	termination_handler

Public Types inherited from websocketpp::transport::asio::endpoint< config >
typedef endpoint< config >	type
	Type of this endpoint transport component. More...

typedef config::concurrency_type	concurrency_type
	Type of the concurrency policy. More...

typedef config::socket_type	socket_type
	Type of the socket policy. More...

typedef config::elog_type	elog_type
	Type of the error logging policy. More...

typedef config::alog_type	alog_type
	Type of the access logging policy. More...

typedef socket_type::socket_con_type	socket_con_type
	Type of the socket connection component. More...

typedef socket_con_type::ptr	socket_con_ptr
	Type of a shared pointer to the socket connection component. More...

typedef asio::connection< config >	transport_con_type
	Type of the connection transport component associated with this endpoint transport component. More...

typedef transport_con_type::ptr	transport_con_ptr
	Type of a shared pointer to the connection transport component associated with this endpoint transport component. More...

typedef lib::asio::io_service *	io_service_ptr
	Type of a pointer to the ASIO io_service being used. More...

typedef lib::shared_ptr< lib::asio::ip::tcp::acceptor >	acceptor_ptr
	Type of a shared pointer to the acceptor being used. More...

typedef lib::shared_ptr< lib::asio::ip::tcp::resolver >	resolver_ptr
	Type of a shared pointer to the resolver being used. More...

typedef lib::shared_ptr< lib::asio::steady_timer >	timer_ptr
	Type of timer handle. More...

typedef lib::shared_ptr< lib::asio::io_service::work >	work_ptr
	Type of a shared pointer to an io_service work object. More...

typedef lib::function< lib::error_code(acceptor_ptr)>	tcp_pre_bind_handler
	Type of socket pre-bind handler. More...

Public Types inherited from websocketpp::transport::asio::tls_socket::endpoint
typedef endpoint	type
	The type of this endpoint socket component. More...

typedef connection	socket_con_type
	The type of the corresponding connection socket component. More...

typedef socket_con_type::ptr	socket_con_ptr
	The type of a shared pointer to the corresponding connection socket component. More...

Public Member Functions
	server ()

	~server ()
	Destructor. More...

connection_ptr	get_connection ()
	Create and initialize a new connection. More...

void	start_accept (lib::error_code &ec)
	Starts the server's async connection acceptance loop (exception free) More...

void	start_accept ()
	Starts the server's async connection acceptance loop. More...

void	handle_accept (connection_ptr con, lib::error_code const &ec)
	Handler callback for start_accept. More...

Public Member Functions inherited from websocketpp::endpoint< connection< config >, config >
	endpoint (bool p_is_server)

	~endpoint ()
	Destructor. More...

std::string	get_user_agent () const
	Returns the user agent string that this endpoint will use. More...

void	set_user_agent (std::string const &ua)
	Sets the user agent string that this endpoint will use. More...

bool	is_server () const
	Returns whether or not this endpoint is a server. More...

void	set_access_channels (log::level channels)
	Set Access logging channel. More...

void	clear_access_channels (log::level channels)
	Clear Access logging channels. More...

void	set_error_channels (log::level channels)
	Set Error logging channel. More...

void	clear_error_channels (log::level channels)
	Clear Error logging channels. More...

alog_type &	get_alog ()
	Get reference to access logger. More...

elog_type &	get_elog ()
	Get reference to error logger. More...

void	set_open_handler (open_handler h)

void	set_close_handler (close_handler h)

void	set_fail_handler (fail_handler h)

void	set_ping_handler (ping_handler h)

void	set_pong_handler (pong_handler h)

void	set_pong_timeout_handler (pong_timeout_handler h)

void	set_interrupt_handler (interrupt_handler h)

void	set_http_handler (http_handler h)

void	set_validate_handler (validate_handler h)

void	set_message_handler (message_handler h)

void	set_open_handshake_timeout (long dur)
	Set open handshake timeout. More...

void	set_close_handshake_timeout (long dur)
	Set close handshake timeout. More...

void	set_pong_timeout (long dur)
	Set pong timeout. More...

size_t	get_max_message_size () const
	Get default maximum message size. More...

void	set_max_message_size (size_t new_value)
	Set default maximum message size. More...

size_t	get_max_http_body_size () const
	Get maximum HTTP message body size. More...

void	set_max_http_body_size (size_t new_value)
	Set maximum HTTP message body size. More...

void	interrupt (connection_hdl hdl, lib::error_code &ec)
	These functions act as adaptors to their counterparts in connection. More...

void	interrupt (connection_hdl hdl)

void	pause_reading (connection_hdl hdl, lib::error_code &ec)
	Pause reading of new data (exception free) More...

void	pause_reading (connection_hdl hdl)
	Pause reading of new data. More...

void	resume_reading (connection_hdl hdl, lib::error_code &ec)
	Resume reading of new data (exception free) More...

void	resume_reading (connection_hdl hdl)
	Resume reading of new data. More...

void	send_http_response (connection_hdl hdl, lib::error_code &ec)
	Send deferred HTTP Response. More...

void	send_http_response (connection_hdl hdl)
	Send deferred HTTP Response (exception free) More...

void	send (connection_hdl hdl, std::string const &payload, frame::opcode::value op, lib::error_code &ec)
	Create a message and add it to the outgoing send queue (exception free) More...

void	send (connection_hdl hdl, std::string const &payload, frame::opcode::value op)
	Create a message and add it to the outgoing send queue. More...

void	send (connection_hdl hdl, void const *payload, size_t len, frame::opcode::value op, lib::error_code &ec)

void	send (connection_hdl hdl, void const *payload, size_t len, frame::opcode::value op)

void	send (connection_hdl hdl, message_ptr msg, lib::error_code &ec)

void	send (connection_hdl hdl, message_ptr msg)

void	close (connection_hdl hdl, close::status::value const code, std::string const &reason, lib::error_code &ec)

void	close (connection_hdl hdl, close::status::value const code, std::string const &reason)

void	ping (connection_hdl hdl, std::string const &payload, lib::error_code &ec)
	Send a ping to a specific connection. More...

void	ping (connection_hdl hdl, std::string const &payload)
	Send a ping to a specific connection. More...

void	pong (connection_hdl hdl, std::string const &payload, lib::error_code &ec)
	Send a pong to a specific connection. More...

void	pong (connection_hdl hdl, std::string const &payload)
	Send a pong to a specific connection. More...

connection_ptr	get_con_from_hdl (connection_hdl hdl, lib::error_code &ec)
	Retrieves a connection_ptr from a connection_hdl (exception free) More...

connection_ptr	get_con_from_hdl (connection_hdl hdl)
	Retrieves a connection_ptr from a connection_hdl (exception version) More...

Public Member Functions inherited from websocketpp::transport::asio::endpoint< config >
	endpoint ()

	~endpoint ()

bool	is_secure () const
	Return whether or not the endpoint produces secure connections. More...

void	init_asio (io_service_ptr ptr, lib::error_code &ec)
	initialize asio transport with external io_service (exception free) More...

void	init_asio (io_service_ptr ptr)
	initialize asio transport with external io_service More...

void	init_asio (lib::error_code &ec)
	Initialize asio transport with internal io_service (exception free) More...

void	init_asio ()
	Initialize asio transport with internal io_service. More...

void	set_tcp_pre_bind_handler (tcp_pre_bind_handler h)
	Sets the tcp pre bind handler. More...

void	set_tcp_pre_init_handler (tcp_init_handler h)
	Sets the tcp pre init handler. More...

void	set_tcp_init_handler (tcp_init_handler h)
	Sets the tcp pre init handler (deprecated) More...

void	set_tcp_post_init_handler (tcp_init_handler h)
	Sets the tcp post init handler. More...

void	set_listen_backlog (int backlog)
	Sets the maximum length of the queue of pending connections. More...

void	set_reuse_addr (bool value)
	Sets whether to use the SO_REUSEADDR flag when opening listening sockets. More...

lib::asio::io_service &	get_io_service ()
	Retrieve a reference to the endpoint's io_service. More...

lib::asio::ip::tcp::endpoint	get_local_endpoint (lib::asio::error_code &ec)
	Get local TCP endpoint. More...

void	listen (lib::asio::ip::tcp::endpoint const &ep, lib::error_code &ec)
	Set up endpoint for listening manually (exception free) More...

void	listen (lib::asio::ip::tcp::endpoint const &ep)
	Set up endpoint for listening manually. More...

template<typename InternetProtocol >
void	listen (InternetProtocol const &internet_protocol, uint16_t port, lib::error_code &ec)
	Set up endpoint for listening with protocol and port (exception free) More...

template<typename InternetProtocol >
void	listen (InternetProtocol const &internet_protocol, uint16_t port)
	Set up endpoint for listening with protocol and port. More...

void	listen (uint16_t port, lib::error_code &ec)
	Set up endpoint for listening on a port (exception free) More...

void	listen (uint16_t port)
	Set up endpoint for listening on a port. More...

void	listen (std::string const &host, std::string const &service, lib::error_code &ec)
	Set up endpoint for listening on a host and service (exception free) More...

void	listen (std::string const &host, std::string const &service)
	Set up endpoint for listening on a host and service. More...

void	stop_listening (lib::error_code &ec)
	Stop listening (exception free) More...

void	stop_listening ()
	Stop listening. More...

bool	is_listening () const
	Check if the endpoint is listening. More...

std::size_t	run ()
	wraps the run method of the internal io_service object More...

std::size_t	run_one ()
	wraps the run_one method of the internal io_service object More...

void	stop ()
	wraps the stop method of the internal io_service object More...

std::size_t	poll ()
	wraps the poll method of the internal io_service object More...

std::size_t	poll_one ()
	wraps the poll_one method of the internal io_service object More...

void	reset ()
	wraps the reset method of the internal io_service object More...

bool	stopped () const
	wraps the stopped method of the internal io_service object More...

void	start_perpetual ()
	Marks the endpoint as perpetual, stopping it from exiting when empty. More...

void	stop_perpetual ()
	Clears the endpoint's perpetual flag, allowing it to exit when empty. More...

timer_ptr	set_timer (long duration, timer_handler callback)
	Call back a function after a period of time. More...

void	handle_timer (timer_ptr, timer_handler callback, lib::asio::error_code const &ec)
	Timer handler. More...

void	async_accept (transport_con_ptr tcon, accept_handler callback, lib::error_code &ec)
	Accept the next connection attempt and assign it to con (exception free) More...

void	async_accept (transport_con_ptr tcon, accept_handler callback)
	Accept the next connection attempt and assign it to con. More...

Public Member Functions inherited from websocketpp::transport::asio::tls_socket::endpoint
	endpoint ()

bool	is_secure () const
	Checks whether the endpoint creates secure connections. More...

void	set_socket_init_handler (socket_init_handler h)
	Set socket init handler. More...

void	set_tls_init_handler (tls_init_handler h)
	Set TLS init handler. More...

Friends
class	connection< config >

Additional Inherited Members
Protected Member Functions inherited from websocketpp::endpoint< connection< config >, config >
connection_ptr	create_connection ()

Protected Member Functions inherited from websocketpp::transport::asio::endpoint< config >
void	init_logging (const lib::shared_ptr< alog_type > &a, const lib::shared_ptr< elog_type > &e)
	Initialize logging. More...

void	handle_accept (accept_handler callback, lib::asio::error_code const &asio_ec)

void	async_connect (transport_con_ptr tcon, uri_ptr u, connect_handler cb)
	Initiate a new connection. More...

void	handle_resolve_timeout (timer_ptr, connect_handler callback, lib::error_code const &ec)
	DNS resolution timeout handler. More...

void	handle_resolve (transport_con_ptr tcon, timer_ptr dns_timer, connect_handler callback, lib::asio::error_code const &ec, lib::asio::ip::tcp::resolver::iterator iterator)

void	handle_connect_timeout (transport_con_ptr tcon, timer_ptr, connect_handler callback, lib::error_code const &ec)
	Asio connect timeout handler. More...

void	handle_connect (transport_con_ptr tcon, timer_ptr con_timer, connect_handler callback, lib::asio::error_code const &ec)

lib::error_code	init (transport_con_ptr tcon)
	Initialize a connection. More...

Protected Member Functions inherited from websocketpp::transport::asio::tls_socket::endpoint
lib::error_code	init (socket_con_ptr scon)
	Initialize a connection. More...

Protected Attributes inherited from websocketpp::endpoint< connection< config >, config >
lib::shared_ptr< alog_type >	m_alog

lib::shared_ptr< elog_type >	m_elog

Detailed Description

template<typename config>
class websocketpp::server< config >

Server endpoint role based on the given config.

Definition at line 44 of file server_endpoint.hpp.

Member Typedef Documentation

◆ type

template<typename config>

typedef server<config> websocketpp::server< config >::type

Type of this endpoint.

Definition at line 47 of file server_endpoint.hpp.

◆ concurrency_type

template<typename config>

typedef config::concurrency_type websocketpp::server< config >::concurrency_type

Type of the endpoint concurrency component.

Definition at line 50 of file server_endpoint.hpp.

◆ transport_type

template<typename config>

typedef config::transport_type websocketpp::server< config >::transport_type

Type of the endpoint transport component.

Definition at line 52 of file server_endpoint.hpp.

◆ connection_type

template<typename config>

typedef connection<config> websocketpp::server< config >::connection_type

Type of the connections this server will create.

Definition at line 55 of file server_endpoint.hpp.

◆ connection_ptr

template<typename config>

typedef connection_type::ptr websocketpp::server< config >::connection_ptr

Type of a shared pointer to the connections this server will create.

Definition at line 57 of file server_endpoint.hpp.

◆ transport_con_type

template<typename config>

typedef transport_type::transport_con_type websocketpp::server< config >::transport_con_type

Type of the connection transport component.

Definition at line 60 of file server_endpoint.hpp.

◆ transport_con_ptr

template<typename config>

typedef transport_con_type::ptr websocketpp::server< config >::transport_con_ptr

Type of a shared pointer to the connection transport component.

Definition at line 62 of file server_endpoint.hpp.

◆ endpoint_type

template<typename config>

typedef endpoint<connection_type,config> websocketpp::server< config >::endpoint_type

Type of the endpoint component of this server.

Definition at line 65 of file server_endpoint.hpp.

Constructor & Destructor Documentation

◆ server()

template<typename config>

websocketpp::server< config >::server ( )

inlineexplicit

Definition at line 69 of file server_endpoint.hpp.

◆ ~server()

template<typename config>

websocketpp::server< config >::~server ( )

inline

Destructor.

Definition at line 75 of file server_endpoint.hpp.

Member Function Documentation

◆ get_connection()

template<typename config>

connection_ptr websocketpp::server< config >::get_connection ( )

inline

Create and initialize a new connection.

The connection will be initialized and ready to begin. Call its start() method to begin the processing loop.

Note: The connection must either be started or terminated using connection::terminate in order to avoid memory leaks.

Returns: A pointer to the new connection.

Definition at line 106 of file server_endpoint.hpp.

Referenced by BOOST_AUTO_TEST_CASE(), main(), run_server_test(), and websocketpp::server< websocketpp::config::asio >::start_accept().

◆ start_accept() [1/2]

template<typename config>

void websocketpp::server< config >::start_accept ( lib::error_code & ec )

inline

Starts the server's async connection acceptance loop (exception free)

Initiates the server connection acceptance loop. Must be called after listen. This method will have no effect until the underlying io_service starts running. It may be called after the io_service is already running.

Refer to documentation for the transport policy you are using for instructions on how to stop this acceptance loop.

Parameters

[out] ec A status code indicating an error, if any.

Definition at line 121 of file server_endpoint.hpp.

Referenced by nfd::face::WebSocketChannel::listen(), main(), broadcast_server::run(), count_server::run(), utility_server::run(), telemetry_server::run(), and run_server().

◆ start_accept() [2/2]

template<typename config>

void websocketpp::server< config >::start_accept ( )

inline

Starts the server's async connection acceptance loop.

Initiates the server connection acceptance loop. Must be called after listen. This method will have no effect until the underlying io_service starts running. It may be called after the io_service is already running.

Refer to documentation for the transport policy you are using for instructions on how to stop this acceptance loop.

Definition at line 157 of file server_endpoint.hpp.

Referenced by websocketpp::server< websocketpp::config::asio >::handle_accept(), and websocketpp::server< websocketpp::config::asio >::start_accept().

◆ handle_accept()

template<typename config>

void websocketpp::server< config >::handle_accept	(	connection_ptr	con,
		lib::error_code const &	ec
	)

inline

Handler callback for start_accept.

Definition at line 166 of file server_endpoint.hpp.

Friends And Related Function Documentation

◆ connection< config >

template<typename config>

friend class connection< config >

friend

Definition at line 67 of file server_endpoint.hpp.

The documentation for this class was generated from the following file:

ndnSIM/NFD/websocketpp/websocketpp/roles/server_endpoint.hpp

Public Types

Public Member Functions

Friends

Additional Inherited Members

Detailed Description

template<typename config> class websocketpp::server< config >

Member Typedef Documentation

◆ type

◆ concurrency_type

◆ transport_type

◆ connection_type

◆ connection_ptr

◆ transport_con_type

◆ transport_con_ptr

◆ endpoint_type

Constructor & Destructor Documentation

◆ server()

◆ ~server()

Member Function Documentation

◆ get_connection()

◆ start_accept() [1/2]

◆ start_accept() [2/2]

◆ handle_accept()

Friends And Related Function Documentation

◆ connection< config >

template<typename config>
class websocketpp::server< config >
