ns3::ndn::NetDeviceTransport Class Reference

ndnSIM-specific transport More...

#include <ndn-net-device-transport.hpp>

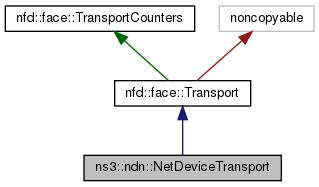

Inheritance diagram for ns3::ndn::NetDeviceTransport:

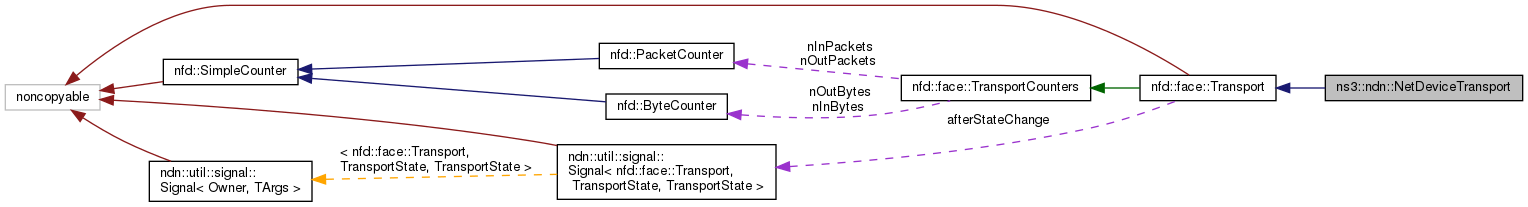

Collaboration diagram for ns3::ndn::NetDeviceTransport:

Public Member Functions
	NetDeviceTransport (Ptr< Node > node, const Ptr< NetDevice > &netDevice, const std::string &localUri, const std::string &remoteUri, ::ndn::nfd::FaceScope scope=::ndn::nfd::FACE_SCOPE_NON_LOCAL, ::ndn::nfd::FacePersistency persistency=::ndn::nfd::FACE_PERSISTENCY_PERSISTENT, ::ndn::nfd::LinkType linkType=::ndn::nfd::LINK_TYPE_POINT_TO_POINT)
	~NetDeviceTransport ()
Ptr< NetDevice >	GetNetDevice () const
virtual ssize_t	getSendQueueLength () final
Public Member Functions inherited from nfd::face::Transport
	Transport ()
	Default constructor. More...
virtual	~Transport ()
void	setFaceAndLinkService (Face &face, LinkService &service)
	set Face and LinkService for Transport More...
const Face *	getFace () const
const LinkService *	getLinkService () const
LinkService *	getLinkService ()
virtual const Counters &	getCounters () const
void	close ()
	Request the transport to be closed. More...
void	send (const Block &packet)
	Send a link-layer packet. More...
FaceUri	getLocalUri () const
FaceUri	getRemoteUri () const
ndn::nfd::FaceScope	getScope () const
ndn::nfd::FacePersistency	getPersistency () const
bool	canChangePersistencyTo (ndn::nfd::FacePersistency newPersistency) const
	check whether the face persistency can be changed to newPersistency More...
void	setPersistency (ndn::nfd::FacePersistency newPersistency)
	changes face persistency setting More...
ndn::nfd::LinkType	getLinkType () const
ssize_t	getMtu () const
ssize_t	getSendQueueCapacity () const
TransportState	getState () const
time::steady_clock::TimePoint	getExpirationTime () const

Additional Inherited Members
Public Types inherited from nfd::face::Transport
using	Counters = TransportCounters
	Counters provided by a transport. More...
Public Attributes inherited from nfd::face::Transport
signal::Signal< Transport, TransportState, TransportState >	afterStateChange
	signals when transport state changes More...
Protected Member Functions inherited from nfd::face::Transport
void	receive (const Block &packet, const EndpointId &endpoint=0)
	Pass a received link-layer packet to the upper layer for further processing. More...
void	setLocalUri (const FaceUri &uri)
void	setRemoteUri (const FaceUri &uri)
void	setScope (ndn::nfd::FaceScope scope)
void	setLinkType (ndn::nfd::LinkType linkType)
void	setMtu (ssize_t mtu)
void	setSendQueueCapacity (ssize_t sendQueueCapacity)
void	setState (TransportState newState)
	set transport state More...
void	setExpirationTime (const time::steady_clock::TimePoint &expirationTime)
virtual bool	canChangePersistencyToImpl (ndn::nfd::FacePersistency newPersistency) const
	invoked by canChangePersistencyTo to perform the check More...
virtual void	afterChangePersistency (ndn::nfd::FacePersistency oldPersistency)
	invoked after the persistency has been changed More...
Protected Attributes inherited from nfd::face::TransportCounters
PacketCounter	nInPackets
	count of incoming packets More...
PacketCounter	nOutPackets
	count of outgoing packets More...
ByteCounter	nInBytes
	total incoming bytes More...
ByteCounter	nOutBytes
	total outgoing bytes More...

Detailed Description

ndnSIM-specific transport

Definition at line 42 of file ndn-net-device-transport.hpp.

Constructor & Destructor Documentation

NetDeviceTransport()

ns3::ndn::NetDeviceTransport::NetDeviceTransport	(	Ptr< Node >	node,
		const Ptr< NetDevice > &	netDevice,
		const std::string &	localUri,
		const std::string &	remoteUri,
		::ndn::nfd::FaceScope	scope = ::ndn::nfd::FACE_SCOPE_NON_LOCAL,
		::ndn::nfd::FacePersistency	persistency = ::ndn::nfd::FACE_PERSISTENCY_PERSISTENT,
		::ndn::nfd::LinkType	linkType = ::ndn::nfd::LINK_TYPE_POINT_TO_POINT
	)

Definition at line 37 of file ndn-net-device-transport.cpp.

References ns3::ndn::L3Protocol::ETHERNET_FRAME_TYPE, nfd::face::Transport::getLocalUri(), nfd::face::Transport::setLinkType(), nfd::face::Transport::setLocalUri(), nfd::face::Transport::setMtu(), nfd::face::Transport::setPersistency(), nfd::face::Transport::setRemoteUri(), nfd::face::Transport::setScope(), nfd::face::Transport::setSendQueueCapacity(), and nonstd::span_lite::size().

~NetDeviceTransport()

ns3::ndn::NetDeviceTransport::~NetDeviceTransport

(

)

Definition at line 80 of file ndn-net-device-transport.cpp.

Member Function Documentation

GetNetDevice()

Ptr< NetDevice > ns3::ndn::NetDeviceTransport::GetNetDevice

(

)

const

Definition at line 145 of file ndn-net-device-transport.cpp.

getSendQueueLength()

ssize_t ns3::ndn::NetDeviceTransport::getSendQueueLength ( )

finalvirtual

Returns

current send queue length of the transport (in octets)

Return values

QUEUE_UNSUPPORTED	transport does not support queue length retrieval
QUEUE_ERROR	transport was unable to retrieve the queue length

Reimplemented from nfd::face::Transport.

Definition at line 86 of file ndn-net-device-transport.cpp.

References nfd::face::CLOSED, ns3::ndn::L3Protocol::ETHERNET_FRAME_TYPE, ns3::ndn::BlockHeader::getBlock(), nfd::face::Transport::getLocalUri(), nonstd::optional_lite::std11::move(), nfd::face::QUEUE_UNSUPPORTED, nfd::face::Transport::receive(), and nfd::face::Transport::setState().

---

The documentation for this class was generated from the following files:

• ndnSIM/model/ndn-net-device-transport.hpp
• ndnSIM/model/ndn-net-device-transport.cpp
