A Transport that communicates on a WebSocket connection. More...

#include <websocket-transport.hpp>

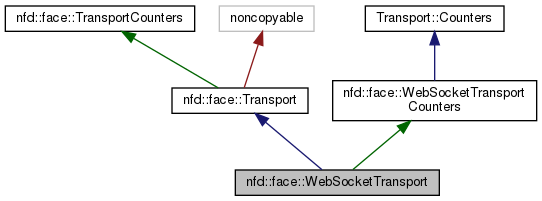

Inheritance diagram for nfd::face::WebSocketTransport:

[legend]

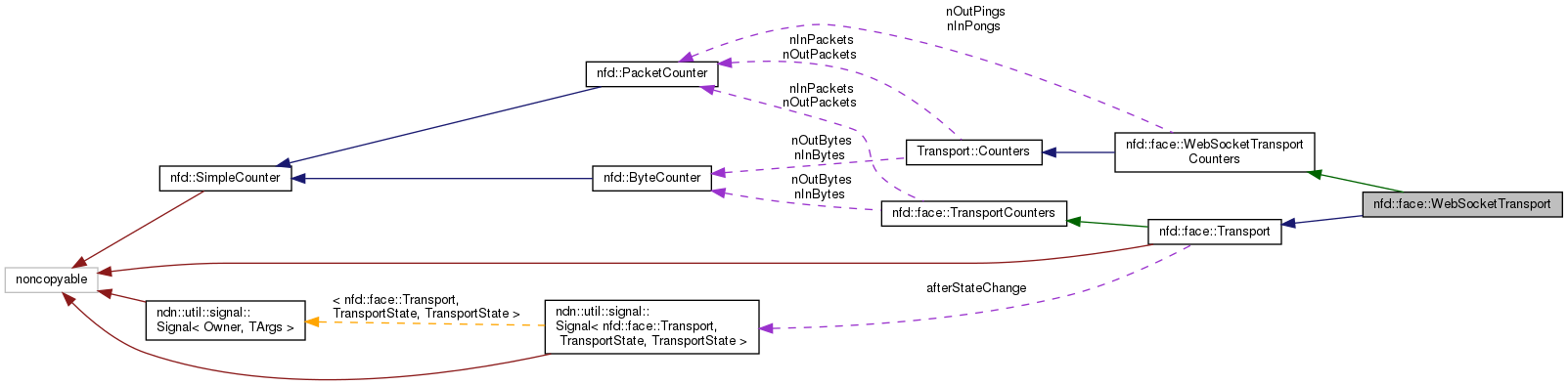

Collaboration diagram for nfd::face::WebSocketTransport:

[legend]

Public Types
typedef WebSocketTransportCounters	Counters
	counters provided by WebSocketTransport More...

Public Types inherited from nfd::face::Transport
using	Counters = TransportCounters
	Counters provided by a transport. More...

Public Member Functions
	WebSocketTransport (websocketpp::connection_hdl hdl, websocket::Server &server, time::milliseconds pingInterval)

const Counters &	getCounters () const final

void	receiveMessage (const std::string &msg)
	Translates a message into a Block and delivers it to the link service. More...

void	handlePong ()

void	handlePongTimeout ()

Public Member Functions inherited from nfd::face::Transport
	Transport ()
	Default constructor. More...

virtual	~Transport ()

void	setFaceAndLinkService (Face &face, LinkService &service)
	set Face and LinkService for Transport More...

const Face *	getFace () const

const LinkService *	getLinkService () const

LinkService *	getLinkService ()

void	close ()
	Request the transport to be closed. More...

void	send (const Block &packet)
	Send a link-layer packet. More...

FaceUri	getLocalUri () const

FaceUri	getRemoteUri () const

ndn::nfd::FaceScope	getScope () const

ndn::nfd::FacePersistency	getPersistency () const

bool	canChangePersistencyTo (ndn::nfd::FacePersistency newPersistency) const
	check whether the face persistency can be changed to `newPersistency` More...

void	setPersistency (ndn::nfd::FacePersistency newPersistency)
	changes face persistency setting More...

ndn::nfd::LinkType	getLinkType () const

ssize_t	getMtu () const

ssize_t	getSendQueueCapacity () const

TransportState	getState () const

time::steady_clock::TimePoint	getExpirationTime () const

virtual ssize_t	getSendQueueLength ()

Protected Member Functions
void	doClose () final
	performs Transport specific operations to close the transport More...

Protected Member Functions inherited from nfd::face::Transport
void	receive (const Block &packet, const EndpointId &endpoint=0)
	Pass a received link-layer packet to the upper layer for further processing. More...

void	setLocalUri (const FaceUri &uri)

void	setRemoteUri (const FaceUri &uri)

void	setScope (ndn::nfd::FaceScope scope)

void	setLinkType (ndn::nfd::LinkType linkType)

void	setMtu (ssize_t mtu)

void	setSendQueueCapacity (ssize_t sendQueueCapacity)

void	setState (TransportState newState)
	set transport state More...

void	setExpirationTime (const time::steady_clock::TimePoint &expirationTime)

virtual bool	canChangePersistencyToImpl (ndn::nfd::FacePersistency newPersistency) const
	invoked by canChangePersistencyTo to perform the check More...

virtual void	afterChangePersistency (ndn::nfd::FacePersistency oldPersistency)
	invoked after the persistency has been changed More...

Additional Inherited Members
Public Attributes inherited from nfd::face::Transport
signal::Signal< Transport, TransportState, TransportState >	afterStateChange
	signals when transport state changes More...

Protected Attributes inherited from nfd::face::TransportCounters
PacketCounter	nInPackets
	count of incoming packets More...

PacketCounter	nOutPackets
	count of outgoing packets More...

ByteCounter	nInBytes
	total incoming bytes More...

ByteCounter	nOutBytes
	total outgoing bytes More...

Protected Attributes inherited from nfd::face::WebSocketTransportCounters
PacketCounter	nOutPings
	count of outgoing Pings More...

PacketCounter	nInPongs
	count of incoming Pongs More...

Detailed Description

A Transport that communicates on a WebSocket connection.

Definition at line 53 of file websocket-transport.hpp.

Member Typedef Documentation

◆ Counters

typedef WebSocketTransportCounters nfd::face::WebSocketTransport::Counters

counters provided by WebSocketTransport

Definition at line 59 of file websocket-transport.hpp.

Constructor & Destructor Documentation

◆ WebSocketTransport()

nfd::face::WebSocketTransport::WebSocketTransport	(	websocketpp::connection_hdl	hdl,
		websocket::Server &	server,
		time::milliseconds	pingInterval
	)

Member Function Documentation

◆ getCounters()

const WebSocketTransport::Counters & nfd::face::WebSocketTransport::getCounters ( ) const

inlinefinalvirtual

Reimplemented from nfd::face::Transport.

Definition at line 105 of file websocket-transport.hpp.

◆ receiveMessage()

void nfd::face::WebSocketTransport::receiveMessage ( const std::string & msg )

Translates a message into a Block and delivers it to the link service.

Definition at line 95 of file websocket-transport.cpp.

References ndn::Block::fromBuffer(), nfd::getScheduler(), NFD_LOG_FACE_TRACE, NFD_LOG_FACE_WARN, nfd::face::WebSocketTransportCounters::nOutPings, websocketpp::endpoint< connection, config >::ping(), and nfd::face::Transport::receive().

◆ handlePong()

void nfd::face::WebSocketTransport::handlePong ( )

Definition at line 132 of file websocket-transport.cpp.

References NFD_LOG_FACE_TRACE, and nfd::face::WebSocketTransportCounters::nInPongs.

◆ handlePongTimeout()

void nfd::face::WebSocketTransport::handlePongTimeout ( )

Definition at line 140 of file websocket-transport.cpp.

References nfd::face::CLOSED, nfd::face::CLOSING, doClose(), nfd::face::FAILED, nfd::face::Transport::getState(), NFD_LOG_FACE_ERROR, NFD_LOG_FACE_TRACE, and nfd::face::Transport::setState().

◆ doClose()

void nfd::face::WebSocketTransport::doClose ( )

finalprotectedvirtual

performs Transport specific operations to close the transport

This is invoked once by close() after changing state to CLOSING. It will not be invoked by Transport class if the transport is already CLOSING or CLOSED.

When the cleanup procedure is complete, this method should change state to CLOSED. This transition can happen synchronously or asynchronously.

Implements nfd::face::Transport.

Definition at line 164 of file websocket-transport.cpp.

References ndn::detail::ScopedCancelHandle< HandleT >::cancel(), websocketpp::endpoint< connection, config >::close(), nfd::face::CLOSED, NFD_LOG_FACE_TRACE, websocketpp::close::status::normal, and nfd::face::Transport::setState().

Referenced by handlePongTimeout().

The documentation for this class was generated from the following files:

ndnSIM/NFD/daemon/face/websocket-transport.hpp
ndnSIM/NFD/daemon/face/websocket-transport.cpp
