A unicast Transport that uses raw Ethernet II frames. More...

#include <unicast-ethernet-transport.hpp>

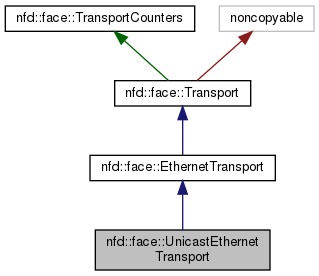

Inheritance diagram for nfd::face::UnicastEthernetTransport:

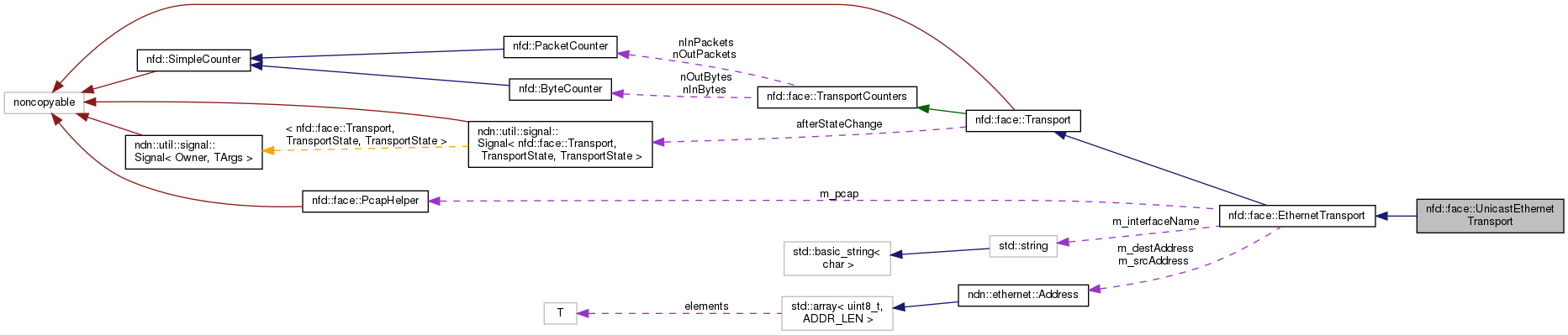

Collaboration diagram for nfd::face::UnicastEthernetTransport:

[legend]

Public Member Functions
	UnicastEthernetTransport (const ndn::net::NetworkInterface &localEndpoint, const ethernet::Address &remoteEndpoint, ndn::nfd::FacePersistency persistency, time::nanoseconds idleTimeout)
	Creates an Ethernet-based transport for unicast communication. More...

Public Member Functions inherited from nfd::face::EthernetTransport
void	receivePayload (span< const uint8_t > payload, const ethernet::Address &sender)
	Processes the payload of an incoming frame. More...

Public Member Functions inherited from nfd::face::Transport
	Transport ()
	Default constructor. More...

virtual	~Transport ()

void	setFaceAndLinkService (Face &face, LinkService &service)
	set Face and LinkService for Transport More...

const Face *	getFace () const

const LinkService *	getLinkService () const

LinkService *	getLinkService ()

virtual const Counters &	getCounters () const

void	close ()
	Request the transport to be closed. More...

void	send (const Block &packet)
	Send a link-layer packet. More...

FaceUri	getLocalUri () const

FaceUri	getRemoteUri () const

ndn::nfd::FaceScope	getScope () const

ndn::nfd::FacePersistency	getPersistency () const

bool	canChangePersistencyTo (ndn::nfd::FacePersistency newPersistency) const
	check whether the face persistency can be changed to `newPersistency` More...

void	setPersistency (ndn::nfd::FacePersistency newPersistency)
	changes face persistency setting More...

ndn::nfd::LinkType	getLinkType () const

ssize_t	getMtu () const

ssize_t	getSendQueueCapacity () const

TransportState	getState () const

time::steady_clock::TimePoint	getExpirationTime () const

virtual ssize_t	getSendQueueLength ()

Protected Member Functions
bool	canChangePersistencyToImpl (ndn::nfd::FacePersistency newPersistency) const final
	invoked by canChangePersistencyTo to perform the check More...

void	afterChangePersistency (ndn::nfd::FacePersistency oldPersistency) final
	invoked after the persistency has been changed More...

Protected Member Functions inherited from nfd::face::EthernetTransport
	EthernetTransport (const ndn::net::NetworkInterface &localEndpoint, const ethernet::Address &remoteEndpoint)

void	doClose () final
	performs Transport specific operations to close the transport More...

bool	hasRecentlyReceived () const

void	resetRecentlyReceived ()

Protected Member Functions inherited from nfd::face::Transport
void	receive (const Block &packet, const EndpointId &endpoint=0)
	Pass a received link-layer packet to the upper layer for further processing. More...

void	setLocalUri (const FaceUri &uri)

void	setRemoteUri (const FaceUri &uri)

void	setScope (ndn::nfd::FaceScope scope)

void	setLinkType (ndn::nfd::LinkType linkType)

void	setMtu (ssize_t mtu)

void	setSendQueueCapacity (ssize_t sendQueueCapacity)

void	setState (TransportState newState)
	set transport state More...

void	setExpirationTime (const time::steady_clock::TimePoint &expirationTime)

Additional Inherited Members
Public Types inherited from nfd::face::Transport
using	Counters = TransportCounters
	Counters provided by a transport. More...

Public Attributes inherited from nfd::face::Transport
signal::Signal< Transport, TransportState, TransportState >	afterStateChange
	signals when transport state changes More...

Protected Attributes inherited from nfd::face::EthernetTransport
boost::asio::posix::stream_descriptor	m_socket

PcapHelper	m_pcap

ethernet::Address	m_srcAddress

ethernet::Address	m_destAddress

std::string	m_interfaceName

Protected Attributes inherited from nfd::face::TransportCounters
PacketCounter	nInPackets
	count of incoming packets More...

PacketCounter	nOutPackets
	count of outgoing packets More...

ByteCounter	nInBytes
	total incoming bytes More...

ByteCounter	nOutBytes
	total outgoing bytes More...

Detailed Description

A unicast Transport that uses raw Ethernet II frames.

Definition at line 37 of file unicast-ethernet-transport.hpp.

Constructor & Destructor Documentation

◆ UnicastEthernetTransport()

nfd::face::UnicastEthernetTransport::UnicastEthernetTransport	(	const ndn::net::NetworkInterface &	localEndpoint,
		const ethernet::Address &	remoteEndpoint,
		ndn::nfd::FacePersistency	persistency,
		time::nanoseconds	idleTimeout
	)

Creates an Ethernet-based transport for unicast communication.

Definition at line 36 of file unicast-ethernet-transport.cpp.

References ndn::ethernet::ETHERTYPE_NDN, ndn::nfd::FACE_PERSISTENCY_ON_DEMAND, ndn::nfd::FACE_SCOPE_NON_LOCAL, ndn::FaceUri::fromDev(), ndn::net::NetworkInterface::getMtu(), nfd::face::Transport::getPersistency(), ndn::nfd::LINK_TYPE_POINT_TO_POINT, nfd::face::EthernetTransport::m_destAddress, nfd::face::EthernetTransport::m_interfaceName, nfd::face::EthernetTransport::m_pcap, nfd::face::EthernetTransport::m_srcAddress, NFD_LOG_FACE_DEBUG, nfd::face::Transport::setLinkType(), nfd::face::Transport::setLocalUri(), nfd::face::Transport::setMtu(), nfd::face::PcapHelper::setPacketFilter(), nfd::face::Transport::setPersistency(), nfd::face::Transport::setRemoteUri(), nfd::face::Transport::setScope(), and ndn::ethernet::Address::toString().

Member Function Documentation

◆ canChangePersistencyToImpl()

bool nfd::face::UnicastEthernetTransport::canChangePersistencyToImpl ( ndn::nfd::FacePersistency newPersistency ) const

finalprotectedvirtual

invoked by canChangePersistencyTo to perform the check

Base class implementation returns false.

Parameters

newPersistency the new persistency, guaranteed to be different from current persistency

Reimplemented from nfd::face::Transport.

Definition at line 71 of file unicast-ethernet-transport.cpp.

◆ afterChangePersistency()

void nfd::face::UnicastEthernetTransport::afterChangePersistency ( ndn::nfd::FacePersistency oldPersistency )

finalprotectedvirtual

invoked after the persistency has been changed

The base class implementation does nothing. When overridden in a subclass, the function should update internal states after persistency setting has been changed.

Reimplemented from nfd::face::Transport.

Definition at line 77 of file unicast-ethernet-transport.cpp.

References ndn::detail::ScopedCancelHandle< HandleT >::cancel(), nfd::face::Transport::close(), ndn::nfd::FACE_PERSISTENCY_ON_DEMAND, nfd::face::Transport::getPersistency(), nfd::getScheduler(), nfd::face::EthernetTransport::hasRecentlyReceived(), NFD_LOG_FACE_INFO, ndn::time::steady_clock::now(), nfd::face::EthernetTransport::resetRecentlyReceived(), and nfd::face::Transport::setExpirationTime().

The documentation for this class was generated from the following files:

ndnSIM/NFD/daemon/face/unicast-ethernet-transport.hpp
ndnSIM/NFD/daemon/face/unicast-ethernet-transport.cpp
