A client-side face for unit testing. More...

#include <dummy-client-face.hpp>

Inheritance diagram for ndn::util::DummyClientFace:

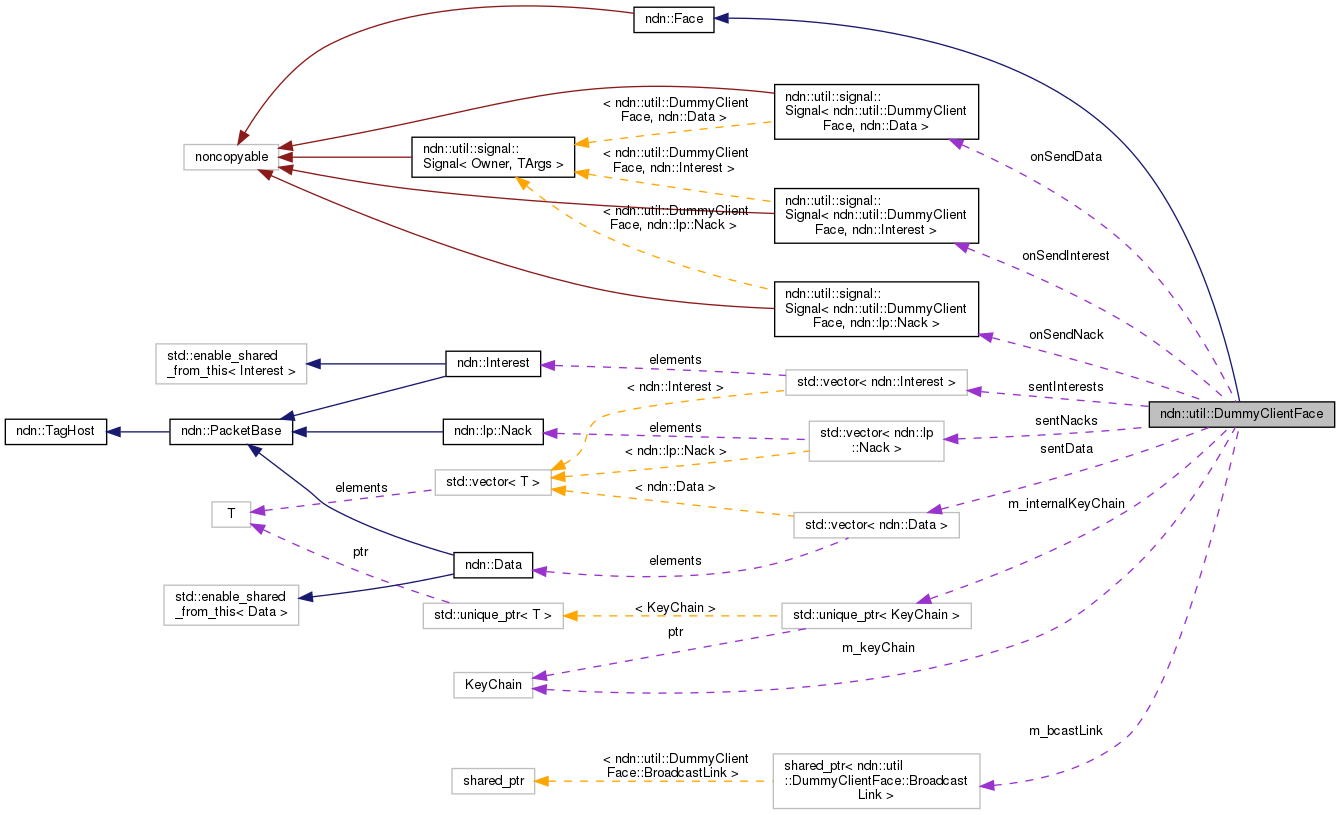

Collaboration diagram for ndn::util::DummyClientFace:

[legend]

Classes
class	AlreadyLinkedError

struct	BroadcastLink

class	Options
	options for DummyClientFace More...

class	Transport

Public Member Functions
	DummyClientFace (const Options &options=Options())
	Create a dummy face with internal IO service. More...

	DummyClientFace (KeyChain &keyChain, const Options &options=Options())
	Create a dummy face with internal IO service and the specified KeyChain. More...

	DummyClientFace (boost::asio::io_service &ioService, const Options &options=Options())
	Create a dummy face with the provided IO service. More...

	DummyClientFace (boost::asio::io_service &ioService, KeyChain &keyChain, const Options &options=Options())
	Create a dummy face with the provided IO service and the specified KeyChain. More...

	~DummyClientFace () override

void	receive (const Interest &interest)
	cause the Face to receive an interest More...

void	receive (const Data &data)
	cause the Face to receive a data More...

void	receive (const lp::Nack &nack)
	cause the Face to receive a nack More...

void	linkTo (DummyClientFace &other)
	link another DummyClientFace through a broadcast media More...

void	unlink ()
	unlink the broadcast media if previously linked More...

Public Member Functions inherited from ndn::Face
	Face (shared_ptr< Transport > transport=nullptr)
	Create Face using given transport (or default transport if omitted) More...

	Face (DummyIoService &ioService)
	Create Face using default transport and given io_service. More...

	Face (shared_ptr< Transport > transport, KeyChain &keyChain)
	Create Face using given transport and KeyChain. More...

virtual	~Face ()

PendingInterestHandle	expressInterest (const Interest &interest, const DataCallback &afterSatisfied, const NackCallback &afterNacked, const TimeoutCallback &afterTimeout)
	Express Interest. More...

void	removeAllPendingInterests ()
	Cancel all previously expressed Interests. More...

size_t	getNPendingInterests () const
	Get number of pending Interests. More...

RegisteredPrefixHandle	setInterestFilter (const InterestFilter &filter, const InterestCallback &onInterest, const RegisterPrefixFailureCallback &onFailure, const security::SigningInfo &signingInfo=security::SigningInfo(), uint64_t flags=nfd::ROUTE_FLAG_CHILD_INHERIT)
	Set InterestFilter to dispatch incoming matching interest to onInterest callback and register the filtered prefix with the connected NDN forwarder. More...

RegisteredPrefixHandle	setInterestFilter (const InterestFilter &filter, const InterestCallback &onInterest, const RegisterPrefixSuccessCallback &onSuccess, const RegisterPrefixFailureCallback &onFailure, const security::SigningInfo &signingInfo=security::SigningInfo(), uint64_t flags=nfd::ROUTE_FLAG_CHILD_INHERIT)
	Set InterestFilter to dispatch incoming matching interest to onInterest callback and register the filtered prefix with the connected NDN forwarder. More...

InterestFilterHandle	setInterestFilter (const InterestFilter &filter, const InterestCallback &onInterest)
	Set an InterestFilter to dispatch matching incoming Interests to `onInterest` callback. More...

RegisteredPrefixHandle	registerPrefix (const Name &prefix, const RegisterPrefixSuccessCallback &onSuccess, const RegisterPrefixFailureCallback &onFailure, const security::SigningInfo &signingInfo=security::SigningInfo(), uint64_t flags=nfd::ROUTE_FLAG_CHILD_INHERIT)
	Register prefix with the connected NDN forwarder. More...

void	put (Data data)
	Publish data packet. More...

void	put (lp::Nack nack)
	Send a network NACK. More...

void	processEvents (time::milliseconds timeout=time::milliseconds::zero(), bool keepThread=false)
	Process any data to receive or call timeout callbacks. More...

void	shutdown ()
	Shutdown face operations. More...

DummyIoService &	getIoService ()

Public Attributes
std::vector< Interest >	sentInterests
	Interests sent out of this DummyClientFace. More...

std::vector< Data >	sentData
	Data sent out of this DummyClientFace. More...

std::vector< lp::Nack >	sentNacks
	Nacks sent out of this DummyClientFace. More...

Signal< DummyClientFace, Interest >	onSendInterest
	emits whenever an Interest is sent More...

Signal< DummyClientFace, Data >	onSendData
	emits whenever a Data packet is sent More...

Signal< DummyClientFace, lp::Nack >	onSendNack
	emits whenever a Nack is sent More...

NDN_CXX_PUBLIC_WITH_TESTS_ELSE_PRIVATE	__pad0__: struct BroadcastLink

shared_ptr< BroadcastLink >	m_bcastLink

std::unique_ptr< KeyChain >	m_internalKeyChain

KeyChain &	m_keyChain

std::function< void(time::milliseconds)>	m_processEventsOverride

Public Attributes inherited from ndn::Face
NDN_CXX_PUBLIC_WITH_TESTS_ELSE_PROTECTED	__pad0__: shared_ptr<Transport> getTransport() const { return m_transport

Additional Inherited Members

Detailed Description

A client-side face for unit testing.

Definition at line 34 of file dummy-client-face.hpp.

Constructor & Destructor Documentation

◆ DummyClientFace() [1/4]

ndn::util::DummyClientFace::DummyClientFace ( const Options & options = Options() )

explicit

Create a dummy face with internal IO service.

Definition at line 82 of file dummy-client-face.cpp.

◆ DummyClientFace() [2/4]

ndn::util::DummyClientFace::DummyClientFace	(	KeyChain &	keyChain,
		const Options &	options = `Options()`
	)

explicit

Create a dummy face with internal IO service and the specified KeyChain.

Definition at line 90 of file dummy-client-face.cpp.

◆ DummyClientFace() [3/4]

ndn::util::DummyClientFace::DummyClientFace	(	boost::asio::io_service &	ioService,
		const Options &	options = `Options()`
	)

explicit

Create a dummy face with the provided IO service.

Definition at line 97 of file dummy-client-face.cpp.

◆ DummyClientFace() [4/4]

ndn::util::DummyClientFace::DummyClientFace	(	boost::asio::io_service &	ioService,
		KeyChain &	keyChain,
		const Options &	options = `Options()`
	)

Create a dummy face with the provided IO service and the specified KeyChain.

Definition at line 105 of file dummy-client-face.cpp.

◆ ~DummyClientFace()

ndn::util::DummyClientFace::~DummyClientFace ( )

override

Definition at line 112 of file dummy-client-face.cpp.

References ndn::Transport::connect(), ndn::tlv::Data, ndn::util::DummyClientFace::Options::enablePacketLogging, ndn::util::DummyClientFace::Options::enableRegistrationReply, ndn::Face::getIoService(), ndn::Interest::getName(), ndn::nfd::ControlParameters::hasCost(), ndn::nfd::ControlParameters::hasFaceId(), ndn::nfd::ControlParameters::hasOrigin(), ndn::tlv::Interest, ndn::Name::isPrefixOf(), m_bcastLink, m_keyChain, m_processEventsOverride, nonstd::optional_lite::std11::move(), onSendData, onSendInterest, onSendNack, ndn::util::DummyClientFace::Options::processEventsOverride, receive(), ndn::util::DummyClientFace::Options::registrationReplyFaceId, ndn::nfd::ROUTE_ORIGIN_APP, sentData, sentInterests, sentNacks, ndn::mgmt::ControlResponse::setBody(), ndn::mgmt::ControlResponse::setCode(), ndn::nfd::ControlParameters::setCost(), ndn::nfd::ControlParameters::setFaceId(), ndn::nfd::ControlParameters::setOrigin(), ndn::security::SigningInfo::SIGNER_TYPE_SHA256, unlink(), ndn::mgmt::ControlResponse::wireEncode(), and ndn::nfd::ControlParameters::wireEncode().

Member Function Documentation

◆ receive() [1/3]

void ndn::util::DummyClientFace::receive ( const Interest & interest )

cause the Face to receive an interest

Definition at line 238 of file dummy-client-face.cpp.

References ndn::Interest::wireEncode().

Referenced by receive(), and ~DummyClientFace().

◆ receive() [2/3]

void ndn::util::DummyClientFace::receive ( const Data & data )

cause the Face to receive a data

Definition at line 250 of file dummy-client-face.cpp.

References receive(), and ndn::Data::wireEncode().

◆ receive() [3/3]

void ndn::util::DummyClientFace::receive ( const lp::Nack & nack )

cause the Face to receive a nack

Definition at line 261 of file dummy-client-face.cpp.

References ndn::lp::Packet::add(), ndn::lp::Nack::getHeader(), ndn::lp::Nack::getInterest(), receive(), and ndn::Interest::wireEncode().

◆ linkTo()

void ndn::util::DummyClientFace::linkTo ( DummyClientFace & other )

link another DummyClientFace through a broadcast media

Definition at line 275 of file dummy-client-face.cpp.

References m_bcastLink, and NDN_THROW.

◆ unlink()

void ndn::util::DummyClientFace::unlink ( )

unlink the broadcast media if previously linked

Definition at line 299 of file dummy-client-face.cpp.

References ndn::Face::doProcessEvents(), m_bcastLink, m_processEventsOverride, and websocketpp::transport::error::timeout.

Referenced by ~DummyClientFace().

Member Data Documentation

◆ sentInterests

std::vector<Interest> ndn::util::DummyClientFace::sentInterests

Interests sent out of this DummyClientFace.

Sent Interests are appended to this container if options.enablePacketLogger is true. User of this class is responsible for cleaning up the container, if necessary. After .expressInterest, .processEvents must be called before the Interest would show up here.

Definition at line 157 of file dummy-client-face.hpp.

Referenced by ~DummyClientFace().

◆ sentData

std::vector<Data> ndn::util::DummyClientFace::sentData

Data sent out of this DummyClientFace.

Sent Data are appended to this container if options.enablePacketLogger is true. User of this class is responsible for cleaning up the container, if necessary. After .put, .processEvents must be called before the Data would show up here.

Definition at line 165 of file dummy-client-face.hpp.

Referenced by ~DummyClientFace().

◆ sentNacks

std::vector<lp::Nack> ndn::util::DummyClientFace::sentNacks

Nacks sent out of this DummyClientFace.

Sent Nacks are appended to this container if options.enablePacketLogger is true. User of this class is responsible for cleaning up the container, if necessary. After .put, .processEvents must be called before the NACK would show up here.

Definition at line 173 of file dummy-client-face.hpp.

Referenced by ~DummyClientFace().

◆ onSendInterest

Signal<DummyClientFace, Interest> ndn::util::DummyClientFace::onSendInterest

emits whenever an Interest is sent

After .expressInterest, .processEvents must be called before this signal would be emitted.

Definition at line 179 of file dummy-client-face.hpp.

Referenced by ~DummyClientFace().

◆ onSendData

Signal<DummyClientFace, Data> ndn::util::DummyClientFace::onSendData

emits whenever a Data packet is sent

After .put, .processEvents must be called before this signal would be emitted.

Definition at line 185 of file dummy-client-face.hpp.

Referenced by ~DummyClientFace().

◆ onSendNack

Signal<DummyClientFace, lp::Nack> ndn::util::DummyClientFace::onSendNack

emits whenever a Nack is sent

After .put, .processEvents must be called before this signal would be emitted.

Definition at line 191 of file dummy-client-face.hpp.

Referenced by ~DummyClientFace().

◆ pad0

NDN_CXX_PUBLIC_WITH_TESTS_ELSE_PRIVATE ndn::util::DummyClientFace::__pad0__

Definition at line 194 of file dummy-client-face.hpp.

◆ m_bcastLink

shared_ptr<BroadcastLink> ndn::util::DummyClientFace::m_bcastLink

Definition at line 195 of file dummy-client-face.hpp.

Referenced by linkTo(), unlink(), and ~DummyClientFace().

◆ m_internalKeyChain

std::unique_ptr<KeyChain> ndn::util::DummyClientFace::m_internalKeyChain

Definition at line 196 of file dummy-client-face.hpp.

◆ m_keyChain

KeyChain& ndn::util::DummyClientFace::m_keyChain

Definition at line 197 of file dummy-client-face.hpp.

Referenced by ~DummyClientFace().

◆ m_processEventsOverride

std::function<void(time::milliseconds)> ndn::util::DummyClientFace::m_processEventsOverride

Definition at line 198 of file dummy-client-face.hpp.

Referenced by unlink(), and ~DummyClientFace().

The documentation for this class was generated from the following files:

ndnSIM/ndn-cxx/ndn-cxx/util/dummy-client-face.hpp
ndnSIM/ndn-cxx/ndn-cxx/util/dummy-client-face.cpp
