ndn::security::v2::validator_config::Rule Class Reference

#include <rule.hpp>

Inheritance diagram for ndn::security::v2::validator_config::Rule:

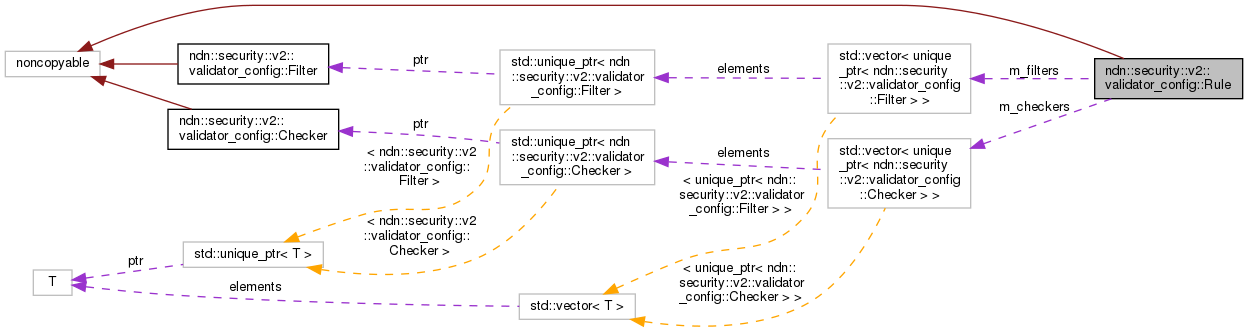

Collaboration diagram for ndn::security::v2::validator_config::Rule:

Public Member Functions
	Rule (const std::string &id, uint32_t pktType)
const std::string &	getId () const
uint32_t	getPktType () const
void	addFilter (unique_ptr< Filter > filter)
void	addChecker (unique_ptr< Checker > checker)
bool	match (uint32_t pktType, const Name &pktName, const shared_ptr< ValidationState > &state) const
	check if the packet name matches rule's filter More...
bool	check (uint32_t pktType, tlv::SignatureTypeValue sigType, const Name &pktName, const Name &klName, const shared_ptr< ValidationState > &state) const
	Check if packet satisfies rule's condition. More...

Static Public Member Functions
static unique_ptr< Rule >	create (const ConfigSection &configSection, const std::string &configFilename)
	create a rule from configuration section More...

Public Attributes
NDN_CXX_PUBLIC_WITH_TESTS_ELSE_PRIVATE	__pad0__: std::string m_id
uint32_t	m_pktType
std::vector< unique_ptr< Filter > >	m_filters
std::vector< unique_ptr< Checker > >	m_checkers

Detailed Description

Definition at line 36 of file rule.hpp.

Constructor & Destructor Documentation

Rule()

ndn::security::v2::validator_config::Rule::Rule	(	const std::string &	id,
		uint32_t	pktType
	)

Definition at line 35 of file rule.cpp.

Member Function Documentation

getId()

const std::string& ndn::security::v2::validator_config::Rule::getId ( ) const

inline

Definition at line 42 of file rule.hpp.

getPktType()

uint32_t ndn::security::v2::validator_config::Rule::getPktType ( ) const

inline

Definition at line 48 of file rule.hpp.

References addChecker(), addFilter(), check(), create(), m_pktType, match(), and NDN_CXX_PUBLIC_WITH_TESTS_ELSE_PRIVATE.

addFilter()

void ndn::security::v2::validator_config::Rule::addFilter

(

unique_ptr< Filter >

filter

)

Definition at line 42 of file rule.cpp.

References m_filters, and nonstd::optional_lite::std11::move().

Referenced by getPktType().

addChecker()

void ndn::security::v2::validator_config::Rule::addChecker

(

unique_ptr< Checker >

checker

)

Definition at line 48 of file rule.cpp.

References m_checkers, and nonstd::optional_lite::std11::move().

Referenced by getPktType().

match()

bool ndn::security::v2::validator_config::Rule::match	(	uint32_t	pktType,
		const Name &	pktName,
		const shared_ptr< ValidationState > &	state
	)		const

check if the packet name matches rule's filter

If no filters were added, the rule matches everything.

Parameters

pktType	tlv::Interest or tlv::Data
pktName	packet name, for signed Interests the last two components are not removed
state	The associated validation state

Return values

true	If at least one filter matches pktName
false	If none of the filters match pktName

Exceptions

Error

the supplied pktType doesn't match one for which the rule is designed

Definition at line 54 of file rule.cpp.

References m_filters, m_pktType, NDN_LOG_TRACE, NDN_THROW, and ndn::to_string().

Referenced by getPktType().

check()

bool ndn::security::v2::validator_config::Rule::check	(	uint32_t	pktType,
		tlv::SignatureTypeValue	sigType,
		const Name &	pktName,
		const Name &	klName,
		const shared_ptr< ValidationState > &	state
	)		const

Check if packet satisfies rule's condition.

Parameters

pktType	tlv::Interest or tlv::Data
sigType	Signature type
pktName	packet name, for signed Interests the last two components are not removed
klName	KeyLocator name
state	Validation state

Return values

false	packet violates all checkers. fail() will have been called on state with proper code and message.
true	packet satisfies at least one checker, further validation is needed.

Exceptions

Error

the supplied pktType doesn't match one for which the rule is designed.

Definition at line 77 of file rule.cpp.

References m_checkers, m_pktType, nonstd::optional_lite::std11::move(), NDN_LOG_TRACE, NDN_THROW, ndn::security::v2::ValidationError::POLICY_ERROR, and ndn::to_string().

Referenced by getPktType().

create()

unique_ptr< Rule > ndn::security::v2::validator_config::Rule::create ( const ConfigSection &  configSection, const std::string &  configFilename  )

static

create a rule from configuration section

Parameters

configSection	The section containing the definition of checker.
configFilename	The configuration file name.

Returns

a rule created from configuration

Definition at line 107 of file rule.cpp.

References ndn::security::v2::validator_config::Filter::create(), ndn::security::v2::validator_config::Checker::create(), ndn::tlv::Data, ndn::tlv::Interest, and NDN_THROW.

Referenced by getPktType(), and ndn::security::v2::validator_config::ValidationPolicyConfig::load().

Member Data Documentation

__pad0__

NDN_CXX_PUBLIC_WITH_TESTS_ELSE_PRIVATE ndn::security::v2::validator_config::Rule::__pad0__

Definition at line 106 of file rule.hpp.

m_pktType

uint32_t ndn::security::v2::validator_config::Rule::m_pktType

Definition at line 107 of file rule.hpp.

Referenced by check(), getPktType(), and match().

m_filters

std::vector<unique_ptr<Filter> > ndn::security::v2::validator_config::Rule::m_filters

Definition at line 108 of file rule.hpp.

Referenced by addFilter(), and match().

m_checkers

std::vector<unique_ptr<Checker> > ndn::security::v2::validator_config::Rule::m_checkers

Definition at line 109 of file rule.hpp.

Referenced by addChecker(), and check().

---

The documentation for this class was generated from the following files:

• ndnSIM/ndn-cxx/ndn-cxx/security/validator-config/rule.hpp
• ndnSIM/ndn-cxx/ndn-cxx/security/validator-config/rule.cpp
