Abstraction of the transformation source module. More...

#include <transform-base.hpp>

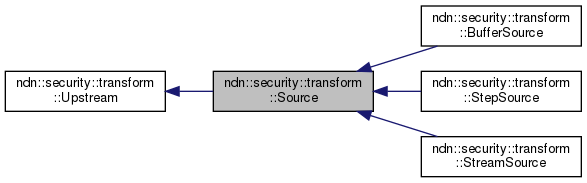

Inheritance diagram for ndn::security::transform::Source:

[legend]

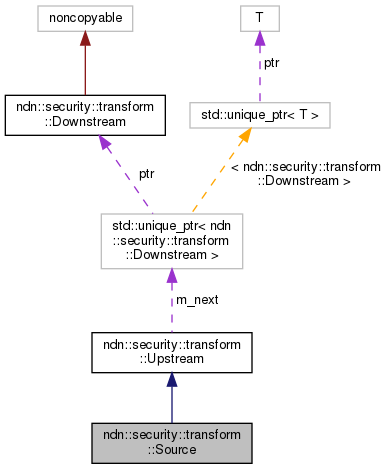

Collaboration diagram for ndn::security::transform::Source:

Public Member Functions
Source &	operator>> (unique_ptr< Transform > transform)
	Connect to an intermediate transformation module. More...

void	operator>> (unique_ptr< Sink > sink)
	Connect to the last transformation module. More...

Public Member Functions inherited from ndn::security::transform::Upstream
virtual	~Upstream ()=default

Protected Member Functions
	Source ()=default

void	pump ()
	Pump all data into next transformation module. More...

size_t	getIndex () const
	Get the source module index (should always be 0). More...

Protected Member Functions inherited from ndn::security::transform::Upstream
	Upstream ()=default

void	appendChain (unique_ptr< Downstream > tail)
	Connect to the next transformation module. More...

Downstream *	getNext ()

Additional Inherited Members
Protected Attributes inherited from ndn::security::transform::Upstream
unique_ptr< Downstream >	m_next

Detailed Description

Abstraction of the transformation source module.

This module can only accept input data from the constructor.

Definition at line 278 of file transform-base.hpp.

Constructor & Destructor Documentation

◆ Source()

ndn::security::transform::Source::Source ( )

protecteddefault

Member Function Documentation

◆ operator>>() [1/2]

Source & ndn::security::transform::Source::operator>> ( unique_ptr< Transform > transform )

Connect to an intermediate transformation module.

Definition at line 141 of file transform-base.cpp.

References nonstd::optional_lite::std11::move().

◆ operator>>() [2/2]

void ndn::security::transform::Source::operator>> ( unique_ptr< Sink > sink )

Connect to the last transformation module.

This method will trigger the source to pump data into the transformation pipeline.

Definition at line 151 of file transform-base.cpp.

References nonstd::optional_lite::std11::move().

◆ pump()

void ndn::security::transform::Source::pump ( )

protected

Pump all data into next transformation module.

Definition at line 135 of file transform-base.cpp.

◆ getIndex()

size_t ndn::security::transform::Source::getIndex ( ) const

inlineprotected

Get the source module index (should always be 0).

Definition at line 308 of file transform-base.hpp.

Referenced by ndn::security::transform::StreamSource::StreamSource().

The documentation for this class was generated from the following files:

ndnSIM/ndn-cxx/ndn-cxx/security/transform/transform-base.hpp
ndnSIM/ndn-cxx/ndn-cxx/security/transform/transform-base.cpp
