Abstract class of PIB implementation. More...

#include <pib-impl.hpp>

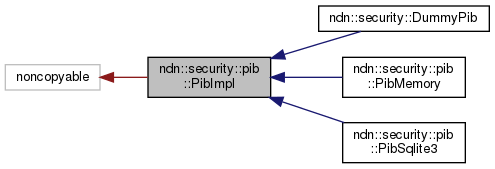

Inheritance diagram for ndn::security::pib::PibImpl:

Collaboration diagram for ndn::security::pib::PibImpl:

Classes
class	Error
	represents a non-semantic error More...

Public Member Functions
virtual	~PibImpl ()=default

virtual void	setTpmLocator (const std::string &tpmLocator)=0
	Set the corresponding TPM information to `tpmLocator`. More...

virtual std::string	getTpmLocator () const =0
	Get TPM Locator. More...

virtual bool	hasIdentity (const Name &identity) const =0
	Check the existence of an identity. More...

virtual void	addIdentity (const Name &identity)=0
	Add an identity. More...

virtual void	removeIdentity (const Name &identity)=0
	Remove an identity and related keys and certificates. More...

virtual void	clearIdentities ()=0
	Erasing all certificates, keys, and identities. More...

virtual std::set< Name >	getIdentities () const =0
	Get the name of all the identities. More...

virtual void	setDefaultIdentity (const Name &identityName)=0
	Set an identity with name `identityName` as the default identity. More...

virtual Name	getDefaultIdentity () const =0
	Get the default identity. More...

virtual bool	hasKey (const Name &keyName) const =0
	Check the existence of a key with `keyName`. More...

virtual void	addKey (const Name &identity, const Name &keyName, span< const uint8_t > key)=0
	Add a key. More...

virtual void	removeKey (const Name &keyName)=0
	Remove a key with `keyName` and related certificates. More...

virtual Buffer	getKeyBits (const Name &keyName) const =0
	Get the key bits of a key with name `keyName`. More...

virtual std::set< Name >	getKeysOfIdentity (const Name &identity) const =0
	Get all the key names of an identity with name `identity`. More...

virtual void	setDefaultKeyOfIdentity (const Name &identity, const Name &keyName)=0
	Set an key with `keyName` as the default key of an identity with name `identity`. More...

virtual Name	getDefaultKeyOfIdentity (const Name &identity) const =0

virtual bool	hasCertificate (const Name &certName) const =0
	Check the existence of a certificate with name `certName`. More...

virtual void	addCertificate (const Certificate &certificate)=0
	Add a certificate. More...

virtual void	removeCertificate (const Name &certName)=0
	Remove a certificate with name `certName`. More...

virtual Certificate	getCertificate (const Name &certName) const =0
	Get a certificate with name `certName`. More...

virtual std::set< Name >	getCertificatesOfKey (const Name &keyName) const =0
	Get a list of certificate names of a key with id `keyName`. More...

virtual void	setDefaultCertificateOfKey (const Name &keyName, const Name &certName)=0
	Set a cert with name `certName` as the default of a key with `keyName`. More...

virtual Certificate	getDefaultCertificateOfKey (const Name &keyName) const =0

Detailed Description

Abstract class of PIB implementation.

This class defines the interface that an actual PIB (e.g., one based on sqlite3) implementation should provide.

Definition at line 40 of file pib-impl.hpp.

Constructor & Destructor Documentation

◆ ~PibImpl()

virtual ndn::security::pib::PibImpl::~PibImpl ( )

virtualdefault

Member Function Documentation

◆ setTpmLocator()

virtual void ndn::security::pib::PibImpl::setTpmLocator ( const std::string & tpmLocator )

pure virtual

Set the corresponding TPM information to tpmLocator.

This method does not reset contents of the PIB

Implemented in ndn::security::pib::PibSqlite3, ndn::security::DummyPib, and ndn::security::pib::PibMemory.

◆ getTpmLocator()

virtual std::string ndn::security::pib::PibImpl::getTpmLocator ( ) const

pure virtual

Get TPM Locator.

Implemented in ndn::security::pib::PibSqlite3, ndn::security::DummyPib, and ndn::security::pib::PibMemory.

◆ hasIdentity()

virtual bool ndn::security::pib::PibImpl::hasIdentity ( const Name & identity ) const

pure virtual

Check the existence of an identity.

Parameters

identity The name of the identity.

Returns: true if the identity exists, otherwise false.

Implemented in ndn::security::pib::PibSqlite3, ndn::security::DummyPib, and ndn::security::pib::PibMemory.

◆ addIdentity()

virtual void ndn::security::pib::PibImpl::addIdentity ( const Name & identity )

pure virtual

Add an identity.

If the identity already exists, do nothing. If no default identity has been set, set the added one as default identity.

Parameters

identity The name of the identity to add.

Implemented in ndn::security::pib::PibSqlite3, ndn::security::DummyPib, and ndn::security::pib::PibMemory.

◆ removeIdentity()

virtual void ndn::security::pib::PibImpl::removeIdentity ( const Name & identity )

pure virtual

Remove an identity and related keys and certificates.

If the default identity is being removed, no default identity will be selected. If the identity does not exist, do nothing.

Parameters

identity The name of the identity to remove.

Implemented in ndn::security::pib::PibSqlite3, ndn::security::DummyPib, and ndn::security::pib::PibMemory.

◆ clearIdentities()

virtual void ndn::security::pib::PibImpl::clearIdentities ( )

pure virtual

Erasing all certificates, keys, and identities.

Implemented in ndn::security::pib::PibSqlite3, ndn::security::DummyPib, and ndn::security::pib::PibMemory.

◆ getIdentities()

virtual std::set<Name> ndn::security::pib::PibImpl::getIdentities ( ) const

pure virtual

Get the name of all the identities.

Implemented in ndn::security::pib::PibSqlite3, ndn::security::DummyPib, and ndn::security::pib::PibMemory.

◆ setDefaultIdentity()

virtual void ndn::security::pib::PibImpl::setDefaultIdentity ( const Name & identityName )

pure virtual

Set an identity with name identityName as the default identity.

Parameters

identityName The name for the default identity.

Exceptions

Error If identityName identity does not exist.

Implemented in ndn::security::pib::PibSqlite3, ndn::security::DummyPib, and ndn::security::pib::PibMemory.

◆ getDefaultIdentity()

virtual Name ndn::security::pib::PibImpl::getDefaultIdentity ( ) const

pure virtual

Get the default identity.

Returns: The name for the default identity.

Exceptions

Pib::Error no default identity.

Implemented in ndn::security::pib::PibSqlite3, ndn::security::DummyPib, and ndn::security::pib::PibMemory.

◆ hasKey()

virtual bool ndn::security::pib::PibImpl::hasKey ( const Name & keyName ) const

pure virtual

Check the existence of a key with keyName.

Returns: true if the key exists, otherwise false. Return false if the identity does not exist

Implemented in ndn::security::pib::PibSqlite3, ndn::security::DummyPib, and ndn::security::pib::PibMemory.

◆ addKey()

virtual void ndn::security::pib::PibImpl::addKey	(	const Name &	identity,
		const Name &	keyName,
		span< const uint8_t >	key
	)

pure virtual

Add a key.

If a key with the same name already exists, overwrite the key. If the identity does not exist, it will be created. If no default key of the identity has been set, set the added one as default key of the identity. If no default identity has been set, identity becomes the default.

Parameters

identity	The name of the identity that will own the added key.
keyName	The key name.
key	The public key bits.

Implemented in ndn::security::pib::PibSqlite3, ndn::security::DummyPib, and ndn::security::pib::PibMemory.

◆ removeKey()

virtual void ndn::security::pib::PibImpl::removeKey ( const Name & keyName )

pure virtual

Remove a key with keyName and related certificates.

If the key does not exist, do nothing.

Implemented in ndn::security::pib::PibSqlite3, ndn::security::DummyPib, and ndn::security::pib::PibMemory.

◆ getKeyBits()

virtual Buffer ndn::security::pib::PibImpl::getKeyBits ( const Name & keyName ) const

pure virtual

Get the key bits of a key with name keyName.

Returns: key bits

Exceptions

Pib::Error the key does not exist.

Implemented in ndn::security::pib::PibSqlite3, ndn::security::DummyPib, and ndn::security::pib::PibMemory.

◆ getKeysOfIdentity()

virtual std::set<Name> ndn::security::pib::PibImpl::getKeysOfIdentity ( const Name & identity ) const

pure virtual

Get all the key names of an identity with name identity.

The returned key names can be used to create a KeyContainer. With key name and backend implementation, one can create a Key frontend instance.

Returns: the key name component set. If the identity does not exist, return an empty set.

Implemented in ndn::security::pib::PibSqlite3, ndn::security::DummyPib, and ndn::security::pib::PibMemory.

◆ setDefaultKeyOfIdentity()

virtual void ndn::security::pib::PibImpl::setDefaultKeyOfIdentity	(	const Name &	identity,
		const Name &	keyName
	)

pure virtual

Set an key with keyName as the default key of an identity with name identity.

Exceptions

Pib::Error the key does not exist.

Implemented in ndn::security::pib::PibSqlite3, ndn::security::DummyPib, and ndn::security::pib::PibMemory.

◆ getDefaultKeyOfIdentity()

virtual Name ndn::security::pib::PibImpl::getDefaultKeyOfIdentity ( const Name & identity ) const

pure virtual

Returns: The name of the default key of an identity with name identity.

Exceptions

Pib::Error no default key or the identity does not exist.

Implemented in ndn::security::pib::PibSqlite3, ndn::security::DummyPib, and ndn::security::pib::PibMemory.

◆ hasCertificate()

virtual bool ndn::security::pib::PibImpl::hasCertificate ( const Name & certName ) const

pure virtual

Check the existence of a certificate with name certName.

Parameters

certName The name of the certificate.

Returns: true if the certificate exists, otherwise false.

Implemented in ndn::security::pib::PibSqlite3, ndn::security::DummyPib, and ndn::security::pib::PibMemory.

◆ addCertificate()

virtual void ndn::security::pib::PibImpl::addCertificate ( const Certificate & certificate )

pure virtual

Add a certificate.

If a certificate with the same name (without implicit digest) already exists, overwrite the certificate. If the key or identity does not exist, they will be created. If no default certificate of the key has been set, set the added one as default certificate of the key. If no default key was set for the identity, it will be set as default key for the identity. If no default identity was selected, the certificate's identity becomes default.

Parameters

certificate The certificate to add.

Implemented in ndn::security::pib::PibSqlite3, ndn::security::DummyPib, and ndn::security::pib::PibMemory.

◆ removeCertificate()

virtual void ndn::security::pib::PibImpl::removeCertificate ( const Name & certName )

pure virtual

Remove a certificate with name certName.

If the certificate does not exist, do nothing.

Parameters

certName The name of the certificate.

Implemented in ndn::security::pib::PibSqlite3, ndn::security::DummyPib, and ndn::security::pib::PibMemory.

◆ getCertificate()

virtual Certificate ndn::security::pib::PibImpl::getCertificate ( const Name & certName ) const

pure virtual

Get a certificate with name certName.

Parameters

certName The name of the certificate.

Returns: the certificate.

Exceptions

Pib::Error the certificate does not exist.

Implemented in ndn::security::pib::PibSqlite3, ndn::security::DummyPib, and ndn::security::pib::PibMemory.

◆ getCertificatesOfKey()

virtual std::set<Name> ndn::security::pib::PibImpl::getCertificatesOfKey ( const Name & keyName ) const

pure virtual

Get a list of certificate names of a key with id keyName.

The returned certificate names can be used to create a CertificateContainer. With certificate name and backend implementation, one can obtain the certificate.

Returns: The certificate name set. If the key does not exist, return an empty set.

Implemented in ndn::security::pib::PibSqlite3, ndn::security::DummyPib, and ndn::security::pib::PibMemory.

◆ setDefaultCertificateOfKey()

virtual void ndn::security::pib::PibImpl::setDefaultCertificateOfKey	(	const Name &	keyName,
		const Name &	certName
	)

pure virtual

Set a cert with name certName as the default of a key with keyName.

Exceptions

Pib::Error the certificate with name certName does not exist.

Implemented in ndn::security::pib::PibSqlite3, ndn::security::DummyPib, and ndn::security::pib::PibMemory.

◆ getDefaultCertificateOfKey()

virtual Certificate ndn::security::pib::PibImpl::getDefaultCertificateOfKey ( const Name & keyName ) const

pure virtual

Returns: Get the default certificate of a key with keyName.

Exceptions

Pib::Error the default certificate does not exist.

Implemented in ndn::security::pib::PibSqlite3, ndn::security::DummyPib, and ndn::security::pib::PibMemory.

The documentation for this class was generated from the following file:

ndnSIM/ndn-cxx/ndn-cxx/security/pib/pib-impl.hpp
