ndn::net::NetworkMonitorStub Class Reference

a stub NetworkMonitor for unit testing More...

#include <network-monitor-stub.hpp>

Inheritance diagram for ndn::net::NetworkMonitorStub:

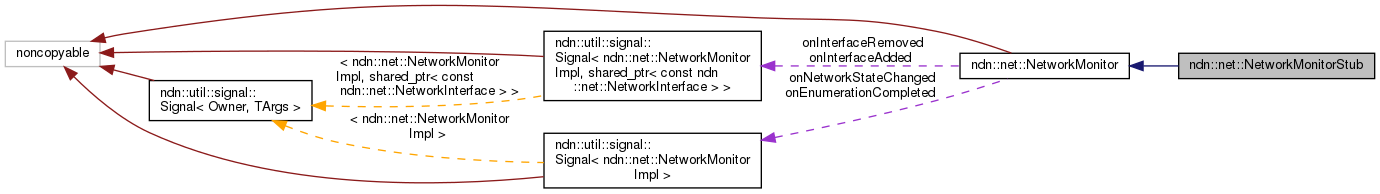

Collaboration diagram for ndn::net::NetworkMonitorStub:

Public Member Functions
	NetworkMonitorStub (uint32_t capabilities)
	constructor More...
void	addInterface (shared_ptr< NetworkInterface > netif)
	emit the onInterfaceAdded signal and add netif internally More...
void	removeInterface (const std::string &ifname)
	emit the onInterfaceRemoved signal and remove netif internally More...
void	emitEnumerationCompleted ()
	emit the onEnumerationCompleted signal More...
Public Member Functions inherited from ndn::net::NetworkMonitor
	NetworkMonitor (boost::asio::io_service &io)
	Construct instance, request enumeration of all network interfaces, and start monitoring for network state changes. More...
uint32_t	getCapabilities () const
	Returns a bitwise OR'ed set of Capability flags supported on the current platform. More...
shared_ptr< const NetworkInterface >	getNetworkInterface (const std::string &ifname) const
	Returns the NetworkInterface with the given name, or nullptr if it does not exist. More...
NDN_CXX_NODISCARD std::vector< shared_ptr< const NetworkInterface > >	listNetworkInterfaces () const
	Lists all network interfaces currently available on the system. More...

Static Public Member Functions
static shared_ptr< NetworkInterface >	makeNetworkInterface ()
	create a NetworkInterface instance More...

Additional Inherited Members
Public Types inherited from ndn::net::NetworkMonitor
enum	Capability : uint32_t {   CAP_NONE = 0, CAP_ENUM = 1 << 0, CAP_IF_ADD_REMOVE = 1 << 1, CAP_STATE_CHANGE = 1 << 2,   CAP_MTU_CHANGE = 1 << 3, CAP_ADDR_ADD_REMOVE = 1 << 4 }
Public Attributes inherited from ndn::net::NetworkMonitor
util::Signal< NetworkMonitorImpl > &	onEnumerationCompleted
	Fires when the enumeration of all network interfaces on the system is complete. More...
util::Signal< NetworkMonitorImpl, shared_ptr< const NetworkInterface > > &	onInterfaceAdded
	Fires whenever a new interface is detected on the system. More...
util::Signal< NetworkMonitorImpl, shared_ptr< const NetworkInterface > > &	onInterfaceRemoved
	Fires whenever an interface disappears from the system. More...
util::Signal< NetworkMonitorImpl > &	onNetworkStateChanged
Protected Member Functions inherited from ndn::net::NetworkMonitor
	NetworkMonitor (unique_ptr< NetworkMonitorImpl > impl)
NetworkMonitorImpl &	getImpl ()

Detailed Description

a stub NetworkMonitor for unit testing

Definition at line 34 of file network-monitor-stub.hpp.

Constructor & Destructor Documentation

NetworkMonitorStub()

ndn::net::NetworkMonitorStub::NetworkMonitorStub ( uint32_t  capabilities )

explicit

constructor

Parameters

capabilities

capabilities reported by getCapabilities

Definition at line 102 of file network-monitor-stub.cpp.

References ndn::net::NetworkMonitor::getImpl().

Member Function Documentation

makeNetworkInterface()

shared_ptr< NetworkInterface > ndn::net::NetworkMonitorStub::makeNetworkInterface ( )

static

create a NetworkInterface instance

Definition at line 114 of file network-monitor-stub.cpp.

References ndn::net::NetworkMonitorImpl::makeNetworkInterface().

addInterface()

void ndn::net::NetworkMonitorStub::addInterface

(

shared_ptr< NetworkInterface >

netif

)

emit the onInterfaceAdded signal and add netif internally

Parameters

netif

new network interface

Postcondition

getNetworkInterface(netif->getName()) == netif

listNetworkInterface() contains netif

Exceptions

std::invalid_argument

a network interface with same name already exists

Definition at line 120 of file network-monitor-stub.cpp.

References ndn::net::NetworkMonitorImplStub::addInterface(), and nonstd::optional_lite::std11::move().

removeInterface()

void ndn::net::NetworkMonitorStub::removeInterface

(

const std::string &

ifname

)

emit the onInterfaceRemoved signal and remove netif internally

Parameters

ifname

network interface name

Postcondition

getNetworkInterface(ifname) == nullptr

listNetworkInterface() does not contains an interface with specified name

Note

If specified interface name does not exist, this operation has no effect.

Definition at line 126 of file network-monitor-stub.cpp.

References ndn::net::NetworkMonitorImplStub::removeInterface().

emitEnumerationCompleted()

void ndn::net::NetworkMonitorStub::emitEnumerationCompleted

(

)

emit the onEnumerationCompleted signal

A real NetworkMonitor starts with an "enumerating" state, during which the initial information about network interfaces is collected from the OS. Upon discovering a network interface, it emits the onInterfaceAdded signal. When the initial enumerating completes, it emits the onEnumerationCompleted signal.

To simulate this procedure on a newly constructed MockNetworkMonitor, the caller should invoke addInterface once for each network interface that already exists, and then invoke signalEnumerationCompleted .

Definition at line 132 of file network-monitor-stub.cpp.

References ndn::net::NetworkMonitorImplStub::emitEnumerationCompleted().

---

The documentation for this class was generated from the following files:

• ndnSIM/ndn-cxx/ndn-cxx/net/network-monitor-stub.hpp
• ndnSIM/ndn-cxx/ndn-cxx/net/network-monitor-stub.cpp
