Represents a name component. More...

#include <name-component.hpp>

Inheritance diagram for ndn::name::Component:

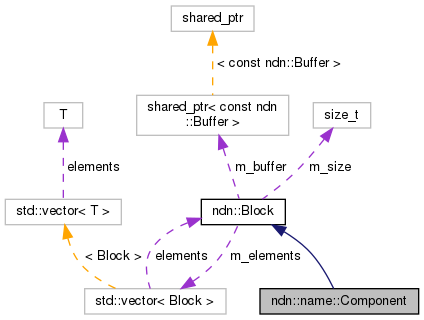

Collaboration diagram for ndn::name::Component:

Classes
class	Error

Public Member Functions
	Component (uint32_t type=tlv::GenericNameComponent)
	Construct a NameComponent of TLV-TYPE `type` and with empty TLV-VALUE. More...

	Component (const Block &block)
	Construct a NameComponent from `block`. More...

	Component (uint32_t type, ConstBufferPtr buffer)
	Construct a NameComponent of TLV-TYPE `type`, using TLV-VALUE from `buffer`. More...

	Component (ConstBufferPtr buffer)
	Construct a GenericNameComponent, using TLV-VALUE from `buffer`. More...

	Component (uint32_t type, span< const uint8_t > value)
	Construct a NameComponent of TLV-TYPE `type`, copying the TLV-VALUE from `value`. More...

	Component (span< const uint8_t > buffer)
	Construct a GenericNameComponent, copying the TLV-VALUE from `buffer`. More...

	Component (uint32_t type, const uint8_t *value, size_t count)
	Construct a NameComponent of TLV-TYPE `type`, copying `count` bytes at `value` as TLV-VALUE. More...

	Component (const uint8_t *value, size_t count)
	Construct a GenericNameComponent, copying `count` bytes at `value` as TLV-VALUE. More...

template<class Iterator >
	Component (uint32_t type, Iterator first, Iterator last)
	Construct a NameComponent of TLV-TYPE `type`, copying TLV-VALUE from a range. More...

template<class Iterator >
	Component (Iterator first, Iterator last)
	Construct a GenericNameComponent, copying TLV-VALUE from a range. More...

	Component (const char *str)
	Construct a GenericNameComponent, copying TLV-VALUE from a null-terminated string. More...

	Component (const std::string &str)
	Construct a GenericNameComponent, copying TLV-VALUE from a string. More...

template<encoding::Tag TAG>
size_t	wireEncode (EncodingImpl< TAG > &encoder) const
	Fast encoding or block size estimation. More...

const Block &	wireEncode () const
	Encode to a wire format. More...

void	wireDecode (const Block &wire)
	Decode from the wire format. More...

void	toUri (std::ostream &os, UriFormat format=UriFormat::DEFAULT) const
	Write *this to the output stream, escaping characters according to the NDN URI format. More...

std::string	toUri (UriFormat format=UriFormat::DEFAULT) const
	Convert *this by escaping characters according to the NDN URI format. More...

bool	isNumber () const
	Check if the component is a NonNegativeInteger. More...

bool	isNumberWithMarker (uint8_t marker) const
	Check if the component is a NameComponentWithMarker per NDN naming conventions rev1. More...

bool	isSegment () const
	Check if the component is a segment number per NDN naming conventions. More...

bool	isByteOffset () const
	Check if the component is a byte offset per NDN naming conventions. More...

bool	isVersion () const
	Check if the component is a version per NDN naming conventions. More...

bool	isTimestamp () const
	Check if the component is a timestamp per NDN naming conventions. More...

bool	isSequenceNumber () const
	Check if the component is a sequence number per NDN naming conventions. More...

uint64_t	toNumber () const
	Interpret this name component as a NonNegativeInteger. More...

uint64_t	toNumberWithMarker (uint8_t marker) const
	Interpret this name component as a NameComponentWithMarker. More...

uint64_t	toSegment () const
	Interpret as segment number component using NDN naming conventions. More...

uint64_t	toByteOffset () const
	Interpret as byte offset component using NDN naming conventions. More...

uint64_t	toVersion () const
	Interpret as version component using NDN naming conventions. More...

time::system_clock::time_point	toTimestamp () const
	Interpret as timestamp component using NDN naming conventions. More...

uint64_t	toSequenceNumber () const
	Interpret as sequence number component using NDN naming conventions. More...

bool	isGeneric () const noexcept
	Check if the component is a GenericNameComponent. More...

bool	isImplicitSha256Digest () const
	Check if the component is an ImplicitSha256DigestComponent. More...

bool	isParametersSha256Digest () const
	Check if the component is a ParametersSha256DigestComponent. More...

bool	isKeyword () const noexcept
	Check if the component is a KeywordNameComponent. More...

NDN_CXX_NODISCARD bool	empty () const

bool	equals (const Component &other) const
	Check if this is the same component as other. More...

int	compare (const Component &other) const
	Compare this to the other Component using NDN canonical ordering. More...

Component	getSuccessor () const
	Get the successor of this name component. More...

Public Member Functions inherited from ndn::Block
	Block ()
	Create an invalid Block. More...

	Block (const Block &)
	Copy constructor. More...

Block &	operator= (const Block &)
	Copy assignment operator. More...

	Block (Block &&) noexcept
	Move constructor. More...

Block &	operator= (Block &&) noexcept
	Move assignment operator. More...

	Block (span< const uint8_t > buffer)
	Parse Block from a byte range. More...

	Block (const EncodingBuffer &buffer)
	Parse Block from an EncodingBuffer. More...

	Block (const ConstBufferPtr &buffer)
	Parse Block from a wire Buffer. More...

	Block (ConstBufferPtr buffer, Buffer::const_iterator begin, Buffer::const_iterator end, bool verifyLength=true)
	Parse Block within boundaries of a wire Buffer. More...

	Block (const Block &block, Block::const_iterator begin, Block::const_iterator end, bool verifyLength=true)
	Parse Block within boundaries of an existing Block, reusing underlying wire Buffer. More...

	Block (ConstBufferPtr buffer, uint32_t type, Buffer::const_iterator begin, Buffer::const_iterator end, Buffer::const_iterator valueBegin, Buffer::const_iterator valueEnd)
	Create a Block from a wire Buffer without parsing. More...

	Block (uint32_t type)
	Create a zero-length Block with the specified TLV-TYPE. More...

	Block (uint32_t type, ConstBufferPtr value)
	Create a Block with the specified TLV-TYPE and TLV-VALUE. More...

	Block (uint32_t type, const Block &value)
	Create a Block with the specified TLV-TYPE and TLV-VALUE. More...

bool	isValid () const noexcept
	Check if the Block is valid. More...

void	reset () noexcept
	Reset the Block to a default-constructed state. More...

void	resetWire () noexcept
	Reset wire buffer but keep TLV-TYPE and sub-elements (if any) More...

bool	hasWire () const noexcept
	Check if the Block contains a fully encoded wire representation. More...

const_iterator	begin () const
	Get begin iterator of encoded wire. More...

const_iterator	end () const
	Get end iterator of encoded wire. More...

const uint8_t *	data () const
	Return a raw pointer to the beginning of the encoded wire. More...

const uint8_t *	wire () const

size_t	size () const
	Return the size of the encoded wire, i.e., of the whole TLV. More...

ConstBufferPtr	getBuffer () const
	Get underlying buffer. More...

uint32_t	type () const noexcept
	Return the TLV-TYPE of the Block. More...

bool	hasValue () const noexcept
	Check if the Block has a non-empty TLV-VALUE. More...

const_iterator	value_begin () const noexcept
	Get begin iterator of TLV-VALUE. More...

const_iterator	value_end () const noexcept
	Get end iterator of TLV-VALUE. More...

size_t	value_size () const noexcept
	Return the size of TLV-VALUE, i.e., the TLV-LENGTH. More...

span< const uint8_t >	value_bytes () const noexcept
	Return a read-only view of TLV-VALUE as a contiguous range of bytes. More...

const uint8_t *	value () const noexcept
	Return a raw pointer to the beginning of TLV-VALUE. More...

Block	blockFromValue () const
	Return a new Block constructed from the TLV-VALUE of this Block. More...

void	parse () const
	Parse TLV-VALUE into sub-elements. More...

void	encode ()
	Encode sub-elements into TLV-VALUE. More...

const Block &	get (uint32_t type) const
	Return the first sub-element of the specified TLV-TYPE. More...

element_const_iterator	find (uint32_t type) const
	Find the first sub-element of the specified TLV-TYPE. More...

void	remove (uint32_t type)
	Remove all sub-elements of the specified TLV-TYPE. More...

element_iterator	erase (element_const_iterator position)
	Erase a sub-element. More...

element_iterator	erase (element_const_iterator first, element_const_iterator last)
	Erase a range of sub-elements. More...

void	push_back (const Block &element)
	Append a sub-element. More...

void	push_back (Block &&element)
	Append a sub-element. More...

element_iterator	insert (element_const_iterator pos, const Block &element)
	Insert a sub-element. More...

const element_container &	elements () const
	Get container of sub-elements. More...

element_const_iterator	elements_begin () const
	Equivalent to elements().begin() More...

element_const_iterator	elements_end () const
	Equivalent to elements().end() More...

size_t	elements_size () const
	Equivalent to elements().size() More...

	operator boost::asio::const_buffer () const
	Implicit conversion to `boost::asio::const_buffer` More...

Static Public Member Functions
static Component	fromEscapedString (const char *input, size_t beginOffset, size_t endOffset)
	Decode NameComponent from a URI component. More...

static Component	fromEscapedString (const char *input)
	Decode NameComponent from a URI component. More...

static Component	fromEscapedString (const std::string &input)
	Decode NameComponent from a URI component. More...

static Component	fromNumber (uint64_t number, uint32_t type=tlv::GenericNameComponent)
	Create a component encoded as NonNegativeInteger. More...

static Component	fromNumberWithMarker (uint8_t marker, uint64_t number)
	Create a component encoded as NameComponentWithMarker. More...

static Component	fromSegment (uint64_t segmentNo)
	Create a segment number component using NDN naming conventions. More...

static Component	fromByteOffset (uint64_t offset)
	Create a byte offset component using NDN naming conventions. More...

static Component	fromVersion (uint64_t version)
	Create a version component using NDN naming conventions. More...

static Component	fromTimestamp (const time::system_clock::time_point &timePoint)
	Create a timestamp component using NDN naming conventions. More...

static Component	fromSequenceNumber (uint64_t seqNo)
	Create a sequence number component using NDN naming conventions. More...

static Component	fromImplicitSha256Digest (ConstBufferPtr digest)
	Create ImplicitSha256DigestComponent component. More...

static Component	fromImplicitSha256Digest (span< const uint8_t > digest)
	Create ImplicitSha256DigestComponent component. More...

static Component	fromParametersSha256Digest (ConstBufferPtr digest)
	Create ParametersSha256DigestComponent component. More...

static Component	fromParametersSha256Digest (span< const uint8_t > digest)
	Create ParametersSha256DigestComponent component. More...

Static Public Member Functions inherited from ndn::Block
static NDN_CXX_NODISCARD std::tuple< bool, Block >	fromBuffer (ConstBufferPtr buffer, size_t offset=0)
	Try to parse Block from a wire buffer. More...

static NDN_CXX_NODISCARD std::tuple< bool, Block >	fromBuffer (span< const uint8_t > buffer)
	Try to parse Block from a byte range. More...

static Block	fromStream (std::istream &is)
	Parse Block from an input stream. More...

Friends
bool	operator== (const Component &lhs, const Component &rhs)

bool	operator!= (const Component &lhs, const Component &rhs)

bool	operator< (const Component &lhs, const Component &rhs)

bool	operator<= (const Component &lhs, const Component &rhs)

bool	operator> (const Component &lhs, const Component &rhs)

bool	operator>= (const Component &lhs, const Component &rhs)

std::ostream &	operator<< (std::ostream &os, const Component &component)

Additional Inherited Members
Public Types inherited from ndn::Block
using	value_type = Buffer::value_type

using	const_iterator = Buffer::const_iterator

using	element_container = std::vector< Block >

using	element_iterator = element_container::iterator

using	element_const_iterator = element_container::const_iterator

Protected Attributes inherited from ndn::Block
shared_ptr< const Buffer >	m_buffer
	Underlying buffer storing TLV-VALUE and possibly TLV-TYPE and TLV-LENGTH fields. More...

Buffer::const_iterator	m_begin

Buffer::const_iterator	m_end

Buffer::const_iterator	m_valueBegin

Buffer::const_iterator	m_valueEnd

uint32_t	m_type = tlv::Invalid
	TLV-TYPE. More...

size_t	m_size = 0
	Total size including Type-Length-Value. More...

element_container	m_elements
	Contains the sub-elements. More...

Detailed Description

Represents a name component.

The Component class provides a read-only view of a Block interpreted as a name component. Although it inherits mutation methods from the Block base class, they must not be used, because the enclosing Name would not be updated correctly.

A name component is considered invalid if its TLV-TYPE is outside the range [1, 65535], or, if it is an ImplicitSha256DigestComponent or a ParametersSha256DigestComponent, its TLV-LENGTH is not 32.

Definition at line 107 of file name-component.hpp.

Constructor & Destructor Documentation

◆ Component() [1/12]

ndn::name::Component::Component ( uint32_t type = tlv::GenericNameComponent )

explicit

Construct a NameComponent of TLV-TYPE type and with empty TLV-VALUE.

Exceptions

Error the NameComponent is invalid.

Definition at line 128 of file name-component.cpp.

Referenced by fromNumber(), fromNumberWithMarker(), ndn::name::parseUriEscapedValue(), and wireDecode().

◆ Component() [2/12]

ndn::name::Component::Component ( const Block & block )

explicit

Construct a NameComponent from block.

Exceptions

Error the NameComponent is invalid.

Definition at line 134 of file name-component.cpp.

◆ Component() [3/12]

ndn::name::Component::Component	(	uint32_t	type,
		ConstBufferPtr	buffer
	)

Construct a NameComponent of TLV-TYPE type, using TLV-VALUE from buffer.

Exceptions

Error the NameComponent is invalid.

This constructor does not copy the underlying buffer, but retains a pointer to it. Therefore, the caller must not change the underlying buffer.

Definition at line 140 of file name-component.cpp.

◆ Component() [4/12]

ndn::name::Component::Component ( ConstBufferPtr buffer )

inlineexplicit

Construct a GenericNameComponent, using TLV-VALUE from buffer.

Exceptions

Error the NameComponent is invalid.

This constructor does not copy the underlying buffer, but retains a pointer to it. Therefore, the caller must not change the underlying buffer.

Definition at line 148 of file name-component.hpp.

◆ Component() [5/12]

ndn::name::Component::Component	(	uint32_t	type,
		span< const uint8_t >	value
	)

Construct a NameComponent of TLV-TYPE type, copying the TLV-VALUE from value.

Definition at line 146 of file name-component.cpp.

◆ Component() [6/12]

ndn::name::Component::Component ( span< const uint8_t > buffer )

inlineexplicit

Construct a GenericNameComponent, copying the TLV-VALUE from buffer.

Definition at line 162 of file name-component.hpp.

◆ Component() [7/12]

ndn::name::Component::Component	(	uint32_t	type,
		const uint8_t *	value,
		size_t	count
	)

inline

Construct a NameComponent of TLV-TYPE type, copying count bytes at value as TLV-VALUE.

Deprecated:: Use Component(uint32_t, span<const uint8_t>)

Definition at line 173 of file name-component.hpp.

◆ Component() [8/12]

ndn::name::Component::Component	(	const uint8_t *	value,
		size_t	count
	)

inline

Construct a GenericNameComponent, copying count bytes at value as TLV-VALUE.

Deprecated:: Use Component(span<const uint8_t>)

Definition at line 183 of file name-component.hpp.

◆ Component() [9/12]

template<class Iterator >

ndn::name::Component::Component	(	uint32_t	type,
		Iterator	first,
		Iterator	last
	)

inline

Construct a NameComponent of TLV-TYPE type, copying TLV-VALUE from a range.

Template Parameters

Iterator an InputIterator dereferencing to a one-octet value type. More efficient implementation is available when it is a RandomAccessIterator.

Parameters

type	the TLV-TYPE.
first	beginning of the range.
last	past-end of the range.

Definition at line 197 of file name-component.hpp.

◆ Component() [10/12]

template<class Iterator >

ndn::name::Component::Component	(	Iterator	first,
		Iterator	last
	)

inline

Construct a GenericNameComponent, copying TLV-VALUE from a range.

Definition at line 206 of file name-component.hpp.

◆ Component() [11/12]

ndn::name::Component::Component ( const char * str )

explicit

Construct a GenericNameComponent, copying TLV-VALUE from a null-terminated string.

Bytes from the string are copied as is, and not interpreted as URI component.

Definition at line 152 of file name-component.cpp.

◆ Component() [12/12]

ndn::name::Component::Component ( const std::string & str )

explicit

Construct a GenericNameComponent, copying TLV-VALUE from a string.

Bytes from the string are copied as is, and not interpreted as URI component.

Definition at line 157 of file name-component.cpp.

Member Function Documentation

◆ wireEncode() [1/2]

template<encoding::Tag TAG>

size_t ndn::name::Component::wireEncode ( EncodingImpl< TAG > & encoder ) const

Fast encoding or block size estimation.

Definition at line 515 of file name-component.cpp.

References ndn::name::NDN_CXX_DEFINE_WIRE_ENCODE_INSTANTIATIONS(), ndn::Block::type(), ndn::Block::value_bytes(), and ndn::Block::value_size().

◆ wireEncode() [2/2]

const Block & ndn::name::Component::wireEncode ( ) const

Encode to a wire format.

Definition at line 529 of file name-component.cpp.

References ndn::Block::hasWire(), and wireDecode().

◆ wireDecode()

void ndn::name::Component::wireDecode ( const Block & wire )

Decode from the wire format.

Definition at line 545 of file name-component.cpp.

References Component().

Referenced by wireEncode().

◆ fromEscapedString() [1/3]

static Component ndn::name::Component::fromEscapedString	(	const char *	input,
		size_t	beginOffset,
		size_t	endOffset
	)

inlinestatic

Decode NameComponent from a URI component.

The URI component is read from [input+beginOffset, input+endOffset) range.

Exceptions

Error URI component does not represent a valid NameComponent.

Definition at line 255 of file name-component.hpp.

Referenced by ndn::Name::Name().

◆ fromEscapedString() [2/3]

static Component ndn::name::Component::fromEscapedString ( const char * input )

inlinestatic

Decode NameComponent from a URI component.

Exceptions

Error URI component does not represent a valid NameComponent.

Definition at line 265 of file name-component.hpp.

References ndn::name::DEFAULT, ndn::tlv::GenericNameComponent, and websocketpp::http::parser::state::version.

◆ fromEscapedString() [3/3]

Component ndn::name::Component::fromEscapedString ( const std::string & input )

static

Decode NameComponent from a URI component.

Exceptions

Error URI component does not represent a valid NameComponent.

Definition at line 178 of file name-component.cpp.

References ndn::Block::find(), ndn::tlv::GenericNameComponent, ndn::tlv::NameComponentMax, ndn::tlv::NameComponentMin, NDN_THROW, ndn::name::parseUriEscapedValue(), ndn::to_string(), and ndn::Block::type().

◆ toUri() [1/2]

void ndn::name::Component::toUri	(	std::ostream &	os,
		UriFormat	format = `UriFormat::DEFAULT`
	)		const

Write *this to the output stream, escaping characters according to the NDN URI format.

See also: https://named-data.net/doc/NDN-packet-spec/current/name.html#ndn-uri-scheme

Definition at line 202 of file name-component.cpp.

References ndn::Block::type(), and ndn::name::wantAltUri().

Referenced by ndn::net::computePrefixLength(), ndn::RegexComponentMatcher::match(), and toUri().

◆ toUri() [2/2]

std::string ndn::name::Component::toUri ( UriFormat format = UriFormat::DEFAULT ) const

Convert *this by escaping characters according to the NDN URI format.

See also: https://named-data.net/doc/NDN-packet-spec/current/name.html#ndn-uri-scheme

Definition at line 213 of file name-component.cpp.

References toUri().

◆ isNumber()

bool ndn::name::Component::isNumber ( ) const

Check if the component is a NonNegativeInteger.

See also: https://named-data.net/doc/NDN-packet-spec/current/tlv.html#non-negative-integer-encoding

Definition at line 223 of file name-component.cpp.

References ndn::Block::value_size().

Referenced by isByteOffset(), isSegment(), isSequenceNumber(), isTimestamp(), isVersion(), and toNumber().

◆ isNumberWithMarker()

bool ndn::name::Component::isNumberWithMarker ( uint8_t marker ) const

Check if the component is a NameComponentWithMarker per NDN naming conventions rev1.

See also: NDN Naming Conventions revision 1 (obsolete) https://named-data.net/wp-content/uploads/2014/08/ndn-tr-22-ndn-memo-naming-conventions.pdf

Definition at line 230 of file name-component.cpp.

References ndn::Block::value(), and ndn::Block::value_size().

Referenced by isByteOffset(), isSegment(), isSequenceNumber(), isTimestamp(), isVersion(), and toNumberWithMarker().

◆ isSegment()

bool ndn::name::Component::isSegment ( ) const

Check if the component is a segment number per NDN naming conventions.

See also: https://named-data.net/publications/techreports/ndn-tr-22-3-ndn-memo-naming-conventions/

Definition at line 237 of file name-component.cpp.

References ndn::name::canDecodeMarkerConvention(), ndn::name::canDecodeTypedConvention(), ndn::tlv::GenericNameComponent, isNumber(), isNumberWithMarker(), ndn::name::SEGMENT_MARKER, ndn::tlv::SegmentNameComponent, and ndn::Block::type().

Referenced by ndn::security::v2::CertificateBundleFetcher::doFetch(), ndn::mgmt::StatusDatasetContext::setPrefix(), and ndn::util::SegmentFetcher::stop().

◆ isByteOffset()

bool ndn::name::Component::isByteOffset ( ) const

Check if the component is a byte offset per NDN naming conventions.

See also: https://named-data.net/publications/techreports/ndn-tr-22-3-ndn-memo-naming-conventions/

Definition at line 244 of file name-component.cpp.

References ndn::tlv::ByteOffsetNameComponent, ndn::name::canDecodeMarkerConvention(), ndn::name::canDecodeTypedConvention(), ndn::tlv::GenericNameComponent, isNumber(), isNumberWithMarker(), ndn::name::SEGMENT_OFFSET_MARKER, and ndn::Block::type().

◆ isVersion()

bool ndn::name::Component::isVersion ( ) const

Check if the component is a version per NDN naming conventions.

See also: https://named-data.net/publications/techreports/ndn-tr-22-3-ndn-memo-naming-conventions/

Definition at line 251 of file name-component.cpp.

References ndn::name::canDecodeMarkerConvention(), ndn::name::canDecodeTypedConvention(), ndn::tlv::GenericNameComponent, isNumber(), isNumberWithMarker(), ndn::Block::type(), ndn::name::VERSION_MARKER, and ndn::tlv::VersionNameComponent.

Referenced by nfd::fw::Strategy::makeInstanceName(), and ndn::mgmt::StatusDatasetContext::setPrefix().

◆ isTimestamp()

bool ndn::name::Component::isTimestamp ( ) const

Check if the component is a timestamp per NDN naming conventions.

See also: https://named-data.net/publications/techreports/ndn-tr-22-3-ndn-memo-naming-conventions/

Definition at line 258 of file name-component.cpp.

References ndn::name::canDecodeMarkerConvention(), ndn::name::canDecodeTypedConvention(), ndn::tlv::GenericNameComponent, isNumber(), isNumberWithMarker(), ndn::name::TIMESTAMP_MARKER, ndn::tlv::TimestampNameComponent, and ndn::Block::type().

◆ isSequenceNumber()

bool ndn::name::Component::isSequenceNumber ( ) const

Check if the component is a sequence number per NDN naming conventions.

See also: https://named-data.net/publications/techreports/ndn-tr-22-3-ndn-memo-naming-conventions/

Definition at line 265 of file name-component.cpp.

References ndn::name::canDecodeMarkerConvention(), ndn::name::canDecodeTypedConvention(), ndn::tlv::GenericNameComponent, isNumber(), isNumberWithMarker(), ndn::name::SEQUENCE_NUMBER_MARKER, ndn::tlv::SequenceNumNameComponent, and ndn::Block::type().

◆ toNumber()

uint64_t ndn::name::Component::toNumber ( ) const

Interpret this name component as a NonNegativeInteger.

See also: https://named-data.net/doc/NDN-packet-spec/current/tlv.html#non-negative-integer-encoding

Returns: The decoded non-negative integer.

Definition at line 274 of file name-component.cpp.

References isNumber(), NDN_THROW, and ndn::encoding::readNonNegativeInteger().

Referenced by toByteOffset(), toSegment(), toSequenceNumber(), toTimestamp(), and toVersion().

◆ toNumberWithMarker()

uint64_t ndn::name::Component::toNumberWithMarker ( uint8_t marker ) const

Interpret this name component as a NameComponentWithMarker.

See also: NDN Naming Conventions revision 1 (obsolete) https://named-data.net/wp-content/uploads/2014/08/ndn-tr-22-ndn-memo-naming-conventions.pdf

Parameters

marker 1-byte octet of the marker

Returns: The integer number.

Exceptions

Error	if name component does not have the specified marker.
tlv::Error	if format does not follow NameComponentWithMarker specification.

Definition at line 283 of file name-component.cpp.

References isNumberWithMarker(), NDN_THROW, ndn::tlv::readNonNegativeInteger(), ndn::Block::value_begin(), ndn::Block::value_end(), and ndn::Block::value_size().

Referenced by toByteOffset(), toSegment(), toSequenceNumber(), toTimestamp(), and toVersion().

◆ toSegment()

uint64_t ndn::name::Component::toSegment ( ) const

Interpret as segment number component using NDN naming conventions.

See also: https://named-data.net/publications/techreports/ndn-tr-22-3-ndn-memo-naming-conventions/

Exceptions

tlv::Error not a Segment component interpreted by the chosen convention(s).

Definition at line 294 of file name-component.cpp.

References ndn::name::canDecodeMarkerConvention(), ndn::name::canDecodeTypedConvention(), ndn::tlv::GenericNameComponent, NDN_THROW, ndn::name::SEGMENT_MARKER, ndn::tlv::SegmentNameComponent, toNumber(), toNumberWithMarker(), and ndn::Block::type().

Referenced by ndn::util::SegmentFetcher::stop().

◆ toByteOffset()

uint64_t ndn::name::Component::toByteOffset ( ) const

Interpret as byte offset component using NDN naming conventions.

See also: https://named-data.net/publications/techreports/ndn-tr-22-3-ndn-memo-naming-conventions/

Exceptions

tlv::Error not a ByteOffset component interpreted by the chosen convention(s).

Definition at line 306 of file name-component.cpp.

References ndn::tlv::ByteOffsetNameComponent, ndn::name::canDecodeMarkerConvention(), ndn::name::canDecodeTypedConvention(), ndn::tlv::GenericNameComponent, NDN_THROW, ndn::name::SEGMENT_OFFSET_MARKER, toNumber(), toNumberWithMarker(), and ndn::Block::type().

◆ toVersion()

uint64_t ndn::name::Component::toVersion ( ) const

Interpret as version component using NDN naming conventions.

See also: https://named-data.net/publications/techreports/ndn-tr-22-3-ndn-memo-naming-conventions/

Exceptions

tlv::Error not a Version component interpreted by the chosen convention(s).

Definition at line 318 of file name-component.cpp.

References ndn::name::canDecodeMarkerConvention(), ndn::name::canDecodeTypedConvention(), ndn::tlv::GenericNameComponent, NDN_THROW, toNumber(), toNumberWithMarker(), ndn::Block::type(), ndn::name::VERSION_MARKER, and ndn::tlv::VersionNameComponent.

◆ toTimestamp()

time::system_clock::time_point ndn::name::Component::toTimestamp ( ) const

Interpret as timestamp component using NDN naming conventions.

See also: https://named-data.net/publications/techreports/ndn-tr-22-3-ndn-memo-naming-conventions/

Exceptions

tlv::Error not a Timestamp component interpreted by the chosen convention(s).

Definition at line 330 of file name-component.cpp.

References ndn::name::canDecodeMarkerConvention(), ndn::name::canDecodeTypedConvention(), ndn::tlv::GenericNameComponent, ndn::time::getUnixEpoch(), NDN_THROW, ndn::name::TIMESTAMP_MARKER, ndn::tlv::TimestampNameComponent, toNumber(), toNumberWithMarker(), ndn::Block::type(), and ndn::Block::value().

◆ toSequenceNumber()

uint64_t ndn::name::Component::toSequenceNumber ( ) const

Interpret as sequence number component using NDN naming conventions.

See also: https://named-data.net/publications/techreports/ndn-tr-22-3-ndn-memo-naming-conventions/

Exceptions

tlv::Error not a SequenceNumber component interpreted by the chosen convention(s).

Definition at line 346 of file name-component.cpp.

References ndn::name::canDecodeMarkerConvention(), ndn::name::canDecodeTypedConvention(), ndn::tlv::GenericNameComponent, NDN_THROW, ndn::name::SEQUENCE_NUMBER_MARKER, ndn::tlv::SequenceNumNameComponent, toNumber(), toNumberWithMarker(), and ndn::Block::type().

Referenced by ndn::util::NotificationSubscriberBase::stop().

◆ fromNumber()

Component ndn::name::Component::fromNumber	(	uint64_t	number,
		uint32_t	type = `tlv::GenericNameComponent`
	)

static

Create a component encoded as NonNegativeInteger.

See also: https://named-data.net/doc/NDN-packet-spec/current/tlv.html#non-negative-integer-encoding

Parameters

number	The non-negative number
type	TLV-TYPE

Definition at line 360 of file name-component.cpp.

References Component(), and ndn::encoding::makeNonNegativeIntegerBlock().

Referenced by ndn::Name::appendNumber(), ndn::security::tpm::BackEnd::constructAsymmetricKeyName(), fromByteOffset(), fromSegment(), fromSequenceNumber(), fromTimestamp(), fromVersion(), and ndn::security::InterestSigner::makeCommandInterest().

◆ fromNumberWithMarker()

Component ndn::name::Component::fromNumberWithMarker	(	uint8_t	marker,
		uint64_t	number
	)

static

Create a component encoded as NameComponentWithMarker.

NameComponentWithMarker is defined as:

NameComponentWithMarker ::= NAME-COMPONENT-TYPE TLV-LENGTH
                              Marker
                              includedNonNegativeInteger
Marker ::= BYTE
includedNonNegativeInteger ::= BYTE{1,2,4,8}

See also: NDN Naming Conventions revision 1 (obsolete) https://named-data.net/wp-content/uploads/2014/08/ndn-tr-22-ndn-memo-naming-conventions.pdf

Parameters

marker	1-byte marker octet
number	The non-negative number

Definition at line 366 of file name-component.cpp.

References Component(), ndn::tlv::GenericNameComponent, and ndn::encoding::Estimator::prependNonNegativeInteger().

Referenced by ndn::Name::appendNumberWithMarker(), fromByteOffset(), fromSegment(), fromSequenceNumber(), fromTimestamp(), and fromVersion().

◆ fromSegment()

Component ndn::name::Component::fromSegment ( uint64_t segmentNo )

static

Create a segment number component using NDN naming conventions.

See also: https://named-data.net/publications/techreports/ndn-tr-22-3-ndn-memo-naming-conventions/

Definition at line 385 of file name-component.cpp.

References fromNumber(), fromNumberWithMarker(), ndn::name::MARKER, ndn::name::SEGMENT_MARKER, and ndn::tlv::SegmentNameComponent.

Referenced by ndn::Name::appendSegment(), and ndn::security::v2::CertificateBundleFetcher::doFetch().

◆ fromByteOffset()

Component ndn::name::Component::fromByteOffset ( uint64_t offset )

static

Create a byte offset component using NDN naming conventions.

See also: https://named-data.net/publications/techreports/ndn-tr-22-3-ndn-memo-naming-conventions/

Definition at line 393 of file name-component.cpp.

References ndn::tlv::ByteOffsetNameComponent, fromNumber(), fromNumberWithMarker(), ndn::name::MARKER, and ndn::name::SEGMENT_OFFSET_MARKER.

Referenced by ndn::Name::appendByteOffset().

◆ fromVersion()

Component ndn::name::Component::fromVersion ( uint64_t version )

static

Create a version component using NDN naming conventions.

See also: https://named-data.net/publications/techreports/ndn-tr-22-3-ndn-memo-naming-conventions/

Definition at line 401 of file name-component.cpp.

References fromNumber(), fromNumberWithMarker(), ndn::name::MARKER, ndn::name::VERSION_MARKER, and ndn::tlv::VersionNameComponent.

Referenced by ndn::Name::appendVersion().

◆ fromTimestamp()

Component ndn::name::Component::fromTimestamp ( const time::system_clock::time_point & timePoint )

static

Create a timestamp component using NDN naming conventions.

See also: https://named-data.net/publications/techreports/ndn-tr-22-3-ndn-memo-naming-conventions/

Definition at line 409 of file name-component.cpp.

References fromNumber(), fromNumberWithMarker(), ndn::time::getUnixEpoch(), ndn::name::MARKER, ndn::name::TIMESTAMP_MARKER, ndn::tlv::TimestampNameComponent, and ndn::Block::value().

Referenced by ndn::Name::appendTimestamp().

◆ fromSequenceNumber()

Component ndn::name::Component::fromSequenceNumber ( uint64_t seqNo )

static

Create a sequence number component using NDN naming conventions.

See also: https://named-data.net/publications/techreports/ndn-tr-22-3-ndn-memo-naming-conventions/

Definition at line 418 of file name-component.cpp.

References fromNumber(), fromNumberWithMarker(), ndn::name::MARKER, ndn::name::SEQUENCE_NUMBER_MARKER, and ndn::tlv::SequenceNumNameComponent.

Referenced by ndn::Name::appendSequenceNumber().

◆ isGeneric()

bool ndn::name::Component::isGeneric ( ) const

inlinenoexcept

Check if the component is a GenericNameComponent.

See also: https://redmine.named-data.net/projects/ndn-tlv/wiki/NameComponentType

Definition at line 476 of file name-component.hpp.

References ndn::tlv::GenericNameComponent.

◆ isImplicitSha256Digest()

bool ndn::name::Component::isImplicitSha256Digest ( ) const

Check if the component is an ImplicitSha256DigestComponent.

See also: https://redmine.named-data.net/projects/ndn-tlv/wiki/NameComponentType; https://named-data.net/doc/NDN-packet-spec/0.3/name.html#implicit-digest-component

Definition at line 428 of file name-component.cpp.

References ndn::util::Sha256::DIGEST_SIZE, ndn::tlv::ImplicitSha256DigestComponent, ndn::Block::type(), and ndn::Block::value_size().

Referenced by ndn::security::v2::CertificateBundleFetcher::doFetch(), and ndn::Interest::matchesData().

◆ fromImplicitSha256Digest() [1/2]

Component ndn::name::Component::fromImplicitSha256Digest ( ConstBufferPtr digest )

static

Create ImplicitSha256DigestComponent component.

Deprecated:: Use Component(uint32_t, ConstBufferPtr)

Definition at line 434 of file name-component.cpp.

References ndn::tlv::ImplicitSha256DigestComponent, and nonstd::optional_lite::std11::move().

◆ fromImplicitSha256Digest() [2/2]

Component ndn::name::Component::fromImplicitSha256Digest ( span< const uint8_t > digest )

static

Create ImplicitSha256DigestComponent component.

Deprecated:: Use Component(uint32_t, span<const uint8_t>)

Definition at line 440 of file name-component.cpp.

References ndn::tlv::ImplicitSha256DigestComponent.

◆ isParametersSha256Digest()

bool ndn::name::Component::isParametersSha256Digest ( ) const

Check if the component is a ParametersSha256DigestComponent.

See also: https://redmine.named-data.net/projects/ndn-tlv/wiki/NameComponentType; https://named-data.net/doc/NDN-packet-spec/0.3/name.html#parameters-digest-component

Definition at line 446 of file name-component.cpp.

References ndn::util::Sha256::DIGEST_SIZE, ndn::tlv::ParametersSha256DigestComponent, ndn::Block::type(), and ndn::Block::value_size().

◆ fromParametersSha256Digest() [1/2]

Component ndn::name::Component::fromParametersSha256Digest ( ConstBufferPtr digest )

static

Create ParametersSha256DigestComponent component.

Deprecated:: Use Component(uint32_t, ConstBufferPtr)

Definition at line 452 of file name-component.cpp.

References nonstd::optional_lite::std11::move(), and ndn::tlv::ParametersSha256DigestComponent.

◆ fromParametersSha256Digest() [2/2]

Component ndn::name::Component::fromParametersSha256Digest ( span< const uint8_t > digest )

static

Create ParametersSha256DigestComponent component.

Deprecated:: Use Component(uint32_t, span<const uint8_t>)

Definition at line 458 of file name-component.cpp.

References ndn::tlv::ParametersSha256DigestComponent.

◆ isKeyword()

bool ndn::name::Component::isKeyword ( ) const

inlinenoexcept

Check if the component is a KeywordNameComponent.

See also: https://redmine.named-data.net/projects/ndn-tlv/wiki/NameComponentType

Definition at line 534 of file name-component.hpp.

References ndn::tlv::KeywordNameComponent, and NDN_CXX_NODISCARD.

◆ empty()

NDN_CXX_NODISCARD bool ndn::name::Component::empty ( ) const

inline

Definition at line 541 of file name-component.hpp.

Referenced by compare(), and ndn::KeyParams::KeyParams().

◆ equals()

bool ndn::name::Component::equals ( const Component & other ) const

Check if this is the same component as other.

Parameters

other The other Component to compare with

Returns: true if the components are equal, otherwise false.

Definition at line 466 of file name-component.cpp.

References ndn::Block::type(), ndn::Block::value_begin(), ndn::Block::value_end(), and ndn::Block::value_size().

◆ compare()

int ndn::name::Component::compare ( const Component & other ) const

Compare this to the other Component using NDN canonical ordering.

Parameters

other The other Component to compare with.

Return values

negative	this comes before other in canonical ordering
zero	this equals other
positive	this comes after other in canonical ordering

See also: https://named-data.net/doc/NDN-packet-spec/current/name.html#canonical-order

Definition at line 474 of file name-component.cpp.

References ndn::Block::data(), empty(), ndn::Block::hasWire(), ndn::Block::size(), ndn::Block::type(), ndn::Block::value(), and ndn::Block::value_size().

◆ getSuccessor()

Component ndn::name::Component::getSuccessor ( ) const

Get the successor of this name component.

The successor of a name component is defined as follows:

C represents the set of name components, and X,Y ∈ C.
Operator < is defined by canonical order on C.
Y is the successor of X, if (a) X < Y, and (b) ∄ Z ∈ C s.t. X < Z < Y.

In plain words, successor of a name component is the next possible name component.

Examples:

successor of sha256digest=0000000000000000000000000000000000000000000000000000000000000000 is sha256digest=0000000000000000000000000000000000000000000000000000000000000001.
successor of sha256digest=ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff is params-sha256=0000000000000000000000000000000000000000000000000000000000000000.
successor of params-sha256=0000000000000000000000000000000000000000000000000000000000000000 is params-sha256=0000000000000000000000000000000000000000000000000000000000000001.
successor of params-sha256=ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff is 3=....
successor of ... is %00.
successor of A is B.
successor of FF is %00%00.

Definition at line 499 of file name-component.cpp.

References ndn::Block::get(), ndn::Block::type(), and ndn::Block::value().

Referenced by ndn::security::v2::CertificateBundleFetcher::doFetch().

Friends And Related Function Documentation

◆ operator==

bool operator==	(	const Component &	lhs,
		const Component &	rhs
	)

friend

Definition at line 608 of file name-component.hpp.

◆ operator!=

bool operator!=	(	const Component &	lhs,
		const Component &	rhs
	)

friend

Definition at line 614 of file name-component.hpp.

◆ operator<

bool operator<	(	const Component &	lhs,
		const Component &	rhs
	)

friend

Definition at line 620 of file name-component.hpp.

◆ operator<=

bool operator<=	(	const Component &	lhs,
		const Component &	rhs
	)

friend

Definition at line 626 of file name-component.hpp.

◆ operator>

bool operator>	(	const Component &	lhs,
		const Component &	rhs
	)

friend

Definition at line 632 of file name-component.hpp.

◆ operator>=

bool operator>=	(	const Component &	lhs,
		const Component &	rhs
	)

friend

Definition at line 638 of file name-component.hpp.

◆ operator<<

std::ostream& operator<<	(	std::ostream &	os,
		const Component &	component
	)

friend

Definition at line 644 of file name-component.hpp.

The documentation for this class was generated from the following files:

ndnSIM/ndn-cxx/ndn-cxx/name-component.hpp
ndnSIM/ndn-cxx/ndn-cxx/name-component.cpp

Classes

Public Member Functions

Static Public Member Functions

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Component() [1/12]

◆ Component() [2/12]

◆ Component() [3/12]

◆ Component() [4/12]

◆ Component() [5/12]

◆ Component() [6/12]

◆ Component() [7/12]

◆ Component() [8/12]

◆ Component() [9/12]

◆ Component() [10/12]

◆ Component() [11/12]

◆ Component() [12/12]

Member Function Documentation

◆ wireEncode() [1/2]

◆ wireEncode() [2/2]

◆ wireDecode()

◆ fromEscapedString() [1/3]

◆ fromEscapedString() [2/3]

◆ fromEscapedString() [3/3]

◆ toUri() [1/2]

◆ toUri() [2/2]

◆ isNumber()

◆ isNumberWithMarker()

◆ isSegment()

◆ isByteOffset()

◆ isVersion()

◆ isTimestamp()

◆ isSequenceNumber()

◆ toNumber()

◆ toNumberWithMarker()

◆ toSegment()

◆ toByteOffset()

◆ toVersion()

◆ toTimestamp()

◆ toSequenceNumber()

◆ fromNumber()

◆ fromNumberWithMarker()

◆ fromSegment()

◆ fromByteOffset()

◆ fromVersion()

◆ fromTimestamp()

◆ fromSequenceNumber()

◆ isGeneric()

◆ isImplicitSha256Digest()

◆ fromImplicitSha256Digest() [1/2]

◆ fromImplicitSha256Digest() [2/2]

◆ isParametersSha256Digest()

◆ fromParametersSha256Digest() [1/2]

◆ fromParametersSha256Digest() [2/2]

◆ isKeyword()

◆ empty()

◆ equals()

◆ compare()

◆ getSuccessor()

Friends And Related Function Documentation

◆ operator==

◆ operator!=

◆ operator<

◆ operator<=

◆ operator>

◆ operator>=

◆ operator<<
