ndn::security::v2::validator_config::ValidationPolicyConfig Class Reference

A validator that can be set up via a configuration file. More...

#include <validation-policy-config.hpp>

Inheritance diagram for ndn::security::v2::validator_config::ValidationPolicyConfig:

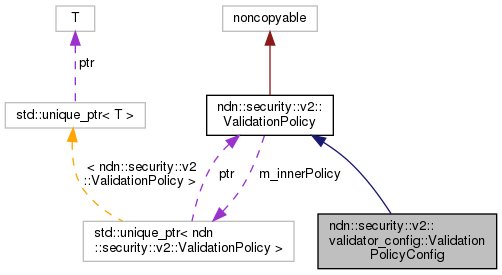

Collaboration diagram for ndn::security::v2::validator_config::ValidationPolicyConfig:

Public Member Functions
void	load (const std::string &filename)
	Load policy from file filename. More...
void	load (const std::string &input, const std::string &filename)
	Load policy from direct input. More...
void	load (std::istream &input, const std::string &filename)
	Load policy from direct input. More...
void	load (const ConfigSection &configSection, const std::string &filename)
	Load policy from configSection. More...
Public Member Functions inherited from ndn::security::v2::ValidationPolicy
virtual	~ValidationPolicy ()=default
void	setInnerPolicy (unique_ptr< ValidationPolicy > innerPolicy)
	Set inner policy. More...
bool	hasInnerPolicy () const
	Check if inner policy is set. More...
ValidationPolicy &	getInnerPolicy ()
	Return the inner policy. More...
void	setValidator (Validator &validator)
	Set validator to which the policy is associated. More...
virtual void	checkPolicy (const Certificate &certificate, const shared_ptr< ValidationState > &state, const ValidationContinuation &continueValidation)
	Check certificate against the policy. More...

Protected Member Functions
void	checkPolicy (const Data &data, const shared_ptr< ValidationState > &state, const ValidationContinuation &continueValidation) override
	Check data against the policy. More...
void	checkPolicy (const Interest &interest, const shared_ptr< ValidationState > &state, const ValidationContinuation &continueValidation) override
	Check interest against the policy. More...

Additional Inherited Members
Public Types inherited from ndn::security::v2::ValidationPolicy
using	ValidationContinuation = std::function< void(const shared_ptr< CertificateRequest > &certRequest, const shared_ptr< ValidationState > &state)>
Public Attributes inherited from ndn::security::v2::ValidationPolicy
NDN_CXX_PUBLIC_WITH_TESTS_ELSE_PROTECTED	__pad0__: Validator* m_validator = nullptr
unique_ptr< ValidationPolicy >	m_innerPolicy

Detailed Description

A validator that can be set up via a configuration file.

Note

For command Interest validation, this policy must be combined with ValidationPolicyCommandInterest, in order to guard against replay attacks.

This policy does not support inner policies (a sole policy or a terminal inner policy)

See also

https://named-data.net/doc/ndn-cxx/current/tutorials/security-validator-config.html

Definition at line 41 of file validation-policy-config.hpp.

Member Function Documentation

load() [1/4]

void ndn::security::v2::validator_config::ValidationPolicyConfig::load

(

const std::string &

filename

)

Load policy from file filename.

Exceptions

Error

Validator instance not assigned to the policy (m_validator == nullptr)

Definition at line 40 of file validation-policy-config.cpp.

References NDN_THROW.

Referenced by load().

load() [2/4]

void ndn::security::v2::validator_config::ValidationPolicyConfig::load	(	const std::string &	input,
		const std::string &	filename
	)

Load policy from direct input.

Exceptions

Error

Validator instance not assigned to the policy (m_validator == nullptr)

Definition at line 50 of file validation-policy-config.cpp.

References load().

load() [3/4]

void ndn::security::v2::validator_config::ValidationPolicyConfig::load	(	std::istream &	input,
		const std::string &	filename
	)

Load policy from direct input.

Exceptions

Error

Validator instance not assigned to the policy (m_validator == nullptr)

Definition at line 57 of file validation-policy-config.cpp.

References load(), NDN_THROW, and ndn::to_string().

load() [4/4]

void ndn::security::v2::validator_config::ValidationPolicyConfig::load	(	const ConfigSection &	configSection,
		const std::string &	filename
	)

Load policy from configSection.

Exceptions

Error

Validator instance not assigned to the policy (m_validator == nullptr)

Definition at line 71 of file validation-policy-config.cpp.

References ndn::security::v2::validator_config::Rule::create(), ndn::tlv::Data, ndn::tlv::Interest, nonstd::optional_lite::std11::move(), and NDN_THROW.

checkPolicy() [1/2]

void ndn::security::v2::validator_config::ValidationPolicyConfig::checkPolicy ( const Data &  data, const shared_ptr< ValidationState > &  state, const ValidationContinuation &  continueValidation  )

overrideprotectedvirtual

Check data against the policy.

Depending on implementation of the policy, this check can be done synchronously or asynchronously.

Semantics of checkPolicy has changed from v1::Validator

• If packet violates policy, the policy should call state->fail with appropriate error code and error description.
• If packet conforms to the policy and no further certificate retrievals are necessary, the policy should call continueValidation(nullptr, state)
• If packet conforms to the policy and a certificate needs to be fetched, the policy should call continueValidation(<appropriate-cert-request-instance>, state)

Implements ndn::security::v2::ValidationPolicy.

Definition at line 235 of file validation-policy-config.cpp.

References ndn::tlv::Data, ndn::security::v2::getKeyLocatorName(), ndn::Data::getName(), ndn::Data::getSignatureType(), ndn::security::v2::ValidationPolicy::hasInnerPolicy(), ndn::security::v2::ValidationError::POLICY_ERROR, and ndn::Name::toUri().

checkPolicy() [2/2]

void ndn::security::v2::validator_config::ValidationPolicyConfig::checkPolicy ( const Interest &  interest, const shared_ptr< ValidationState > &  state, const ValidationContinuation &  continueValidation  )

overrideprotectedvirtual

Check interest against the policy.

Depending on implementation of the policy, this check can be done synchronously or asynchronously.

Semantics of checkPolicy has changed from v1::Validator

• If packet violates policy, the policy should call state->fail with appropriate error code and error description.
• If packet conforms to the policy and no further certificate retrievals are necessary, the policy should call continueValidation(nullptr, state)
• If packet conforms to the policy and a certificate needs to be fetched, the policy should call continueValidation(<appropriate-cert-request-instance>, state)

Implements ndn::security::v2::ValidationPolicy.

Definition at line 265 of file validation-policy-config.cpp.

References ndn::Name::at(), ndn::Block::blockFromValue(), ndn::security::v2::getKeyLocatorName(), ndn::Interest::getName(), ndn::Interest::getSignatureInfo(), ndn::SignatureInfo::getSignatureType(), ndn::security::v2::ValidationPolicy::hasInnerPolicy(), ndn::tlv::Interest, ndn::security::v2::ValidationError::INVALID_KEY_LOCATOR, ndn::signed_interest::MIN_SIZE, ndn::security::v2::ValidationError::POLICY_ERROR, ndn::signed_interest::POS_SIG_INFO, ndn::Name::size(), ndn::Name::toUri(), ndn::security::V03, and ndn::SignatureInfo::wireDecode().

---

The documentation for this class was generated from the following files:

• ndnSIM/ndn-cxx/ndn-cxx/security/validation-policy-config.hpp
• ndnSIM/ndn-cxx/ndn-cxx/security/validation-policy-config.cpp
