ndn::Transport Class Reference

Provides TLV-block delivery service. More...

#include <transport.hpp>

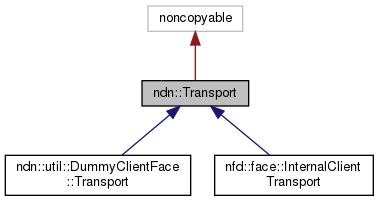

Inheritance diagram for ndn::Transport:

Collaboration diagram for ndn::Transport:

Classes
class	Error

Public Types
using	ReceiveCallback = std::function< void(const Block &wire)>
using	ErrorCallback = std::function< void()>

Public Member Functions
virtual	~Transport ()=default
virtual void	connect (ReceiveCallback receiveCallback)
	Asynchronously open the connection. More...
virtual void	close ()=0
	Close the connection. More...
virtual void	send (const Block &block)=0
	Send a TLV block through the transport. More...
virtual void	pause ()=0
	Pause the transport, canceling all pending operations. More...
virtual void	resume ()=0
	Resume the transport. More...
bool	isConnected () const noexcept
	Return whether the transport is connected. More...
bool	isReceiving () const noexcept

Protected Attributes
ReceiveCallback	m_receiveCallback
bool	m_isConnected = false
bool	m_isReceiving = false

Detailed Description

Provides TLV-block delivery service.

Definition at line 35 of file transport.hpp.

Member Typedef Documentation

ReceiveCallback

using ndn::Transport::ReceiveCallback = std::function<void(const Block& wire)>

Definition at line 46 of file transport.hpp.

ErrorCallback

using ndn::Transport::ErrorCallback = std::function<void()>

Definition at line 47 of file transport.hpp.

Constructor & Destructor Documentation

~Transport()

virtual ndn::Transport::~Transport ( )

virtualdefault

Member Function Documentation

connect()

void ndn::Transport::connect ( ReceiveCallback  receiveCallback )

virtual

Asynchronously open the connection.

Parameters

receiveCallback

callback function when a TLV block is received; must not be empty

Exceptions

boost::system::system_error

connection cannot be established

Definition at line 32 of file transport.cpp.

References m_receiveCallback, and nonstd::optional_lite::std11::move().

Referenced by ndn::util::DummyClientFace::~DummyClientFace().

close()

virtual void ndn::Transport::close ( )

pure virtual

Close the connection.

Implemented in nfd::face::InternalClientTransport, and ndn::util::DummyClientFace::Transport.

send()

virtual void ndn::Transport::send ( const Block &  block )

pure virtual

Send a TLV block through the transport.

Implemented in nfd::face::InternalClientTransport, and ndn::util::DummyClientFace::Transport.

pause()

virtual void ndn::Transport::pause ( )

pure virtual

Pause the transport, canceling all pending operations.

Postcondition

the receive callback will not be invoked

Note

This operation has no effect if the transport has been paused, or when the connection is being established.

Implemented in nfd::face::InternalClientTransport, and ndn::util::DummyClientFace::Transport.

resume()

virtual void ndn::Transport::resume ( )

pure virtual

Resume the transport.

Postcondition

the receive callback will be invoked

Note

This operation has no effect if the transport is not paused, or when the connection is being established.

Implemented in nfd::face::InternalClientTransport, and ndn::util::DummyClientFace::Transport.

isConnected()

bool ndn::Transport::isConnected ( ) const

inlinenoexcept

Return whether the transport is connected.

Definition at line 93 of file transport.hpp.

References m_isConnected.

isReceiving()

bool ndn::Transport::isReceiving ( ) const

inlinenoexcept

Return values

true	incoming packets are expected, the receive callback will be invoked
false	incoming packets are not expected, the receive callback will not be invoked

Definition at line 103 of file transport.hpp.

References m_isReceiving.

Member Data Documentation

m_receiveCallback

ReceiveCallback ndn::Transport::m_receiveCallback

protected

Definition at line 109 of file transport.hpp.

Referenced by connect(), and ndn::util::DummyClientFace::Transport::receive().

m_isConnected

bool ndn::Transport::m_isConnected = false

protected

Definition at line 110 of file transport.hpp.

Referenced by isConnected().

m_isReceiving

bool ndn::Transport::m_isReceiving = false

protected

Definition at line 111 of file transport.hpp.

Referenced by isReceiving().

---

The documentation for this class was generated from the following files:

• ndnSIM/ndn-cxx/ndn-cxx/transport/transport.hpp
• ndnSIM/ndn-cxx/ndn-cxx/transport/transport.cpp
